Features
- Draws from pre-mixed solution
- Battery-powered – no air lines or power cords to hold you back
- Up to 2 hours of non-continuous run time from one charge
- Easy-to-read battery level indicator on back plate
- Designed for easy charging and maintenance
- Ideal for drain foaming, spot cleaning, and more
- Optimized for use with low-foaming chemical products
- Produces a lower volume of foam than our air-operated units
- Natural color tank for easy visibility of product levels
- Hinged lid

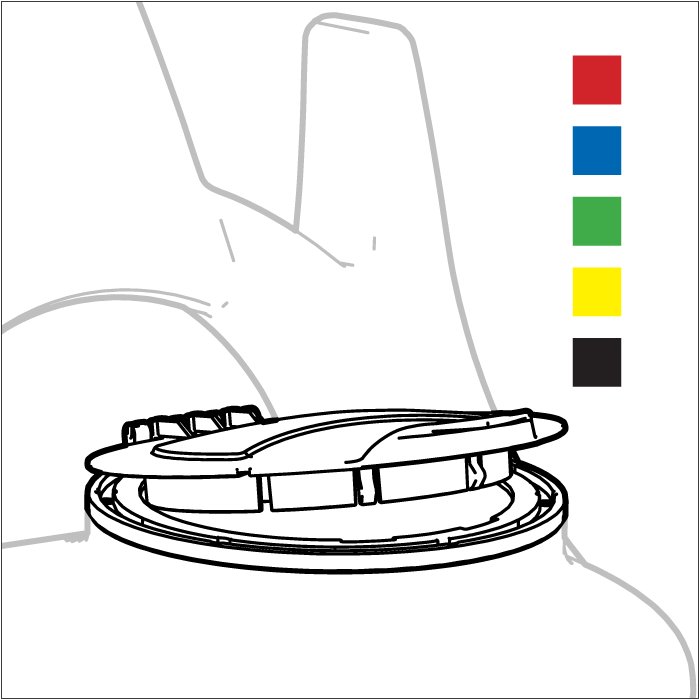

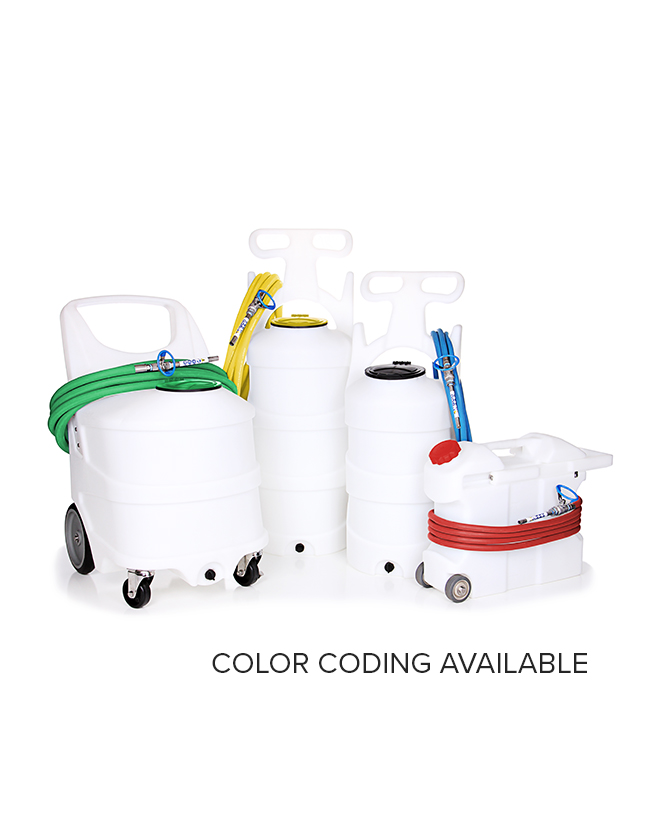

- Color coding options:
- Lid – 7 colors (BK, BL, GN, YL, RD, PL, OR)
- Discharge hose – 4 colors (BL, GN, YL, RD)
- Integrated hose wraps

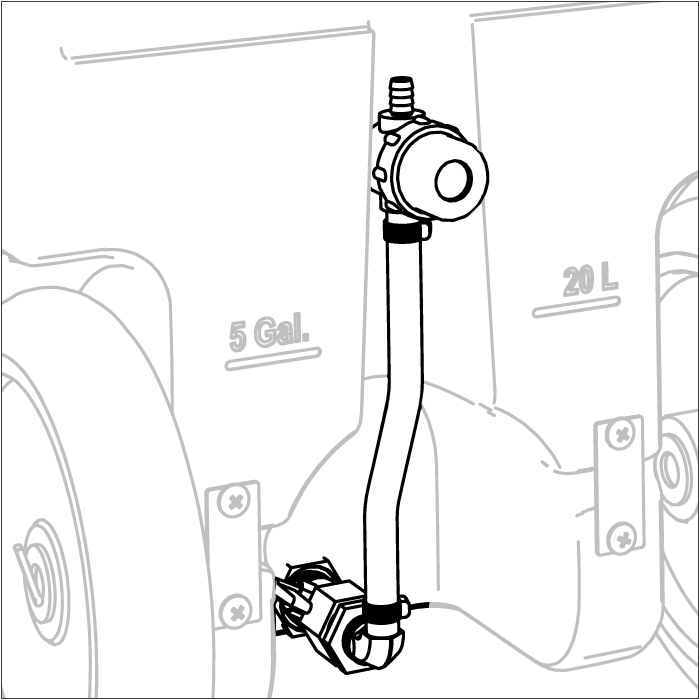

- In-line strainer to protect pump from debris
Datasheet
15 Gallon Battery Foam Unit
User Manual
15 Gallon Battery Foam Unit
Questions?
- POWER TYPE
Battery
- BATTERY CHARGE TIME (FROM FULL DEPLETION)
7.5 hours
- BATTERY RUN TIME (FROM FULL CHARGE)
Up to 2 hours of non-continuous run time
- CHEMICAL PICKUP TYPE
Draws from pre-mixed solution
- NUMBER OF PRODUCTS UNIT CAN DRAW FROM
One product
- SUCTION LINE LENGTH/DIAMETER
3/8 in. (9.5 mm) inside diameter
- CAPACITY
15 gallons (56.78 liters)
- DISCHARGE HOSE DIAMETER/LENGTH
15 ft. (4.6 m) hose, with 1/2 in. (12.7 mm) inside diameter)
- DISCHARGE WAND/TIP TYPE
Stainless steel wand with 65 fan tip and ball valve
- OUTPUT DISTANCE
5-6 ft. (1.52-1.83 m)
- OUTPUT VOLUME
4-5 gal/min (15-18.93 l/min) of foam
- FLOW RATE*
2 gal/min (7.6 l/min)
- PUMP SEALS
Santoprene, Viton, or Kalrez
- WHEEL TYPE
Two 10 inch non-marking wheels
*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- LIQUID TEMPERATURE RANGE
40-100˚F (4.4-37˚C)
- ELECTRICAL REQUIREMENTS
120 VAC at 60 Hz, 2 amps (GFCI protected outlet) for battery charger only
- OPERATING VOLTAGE
12 VDC
- CHEMICAL COMPATIBILITY
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- Complete foam unit with discharge hose and wand
- Battery (packaged separately - installation instructions included)
- Battery charger
- User manual
FAQs
Which pump seal material should I choose?
Pump Seal Material Compatibility
Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.
- Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
- Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
- Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
- If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
Accessories
Support Videos
How to adjust the wet/dry foam needle valve
Cómo ajustar la válvula de la aguja de la espuma húmeda o seca
How to replace a hose or wand
