Hand Sanitizer Dispenser

#HSD1

Take a stand on disinfecting hands.

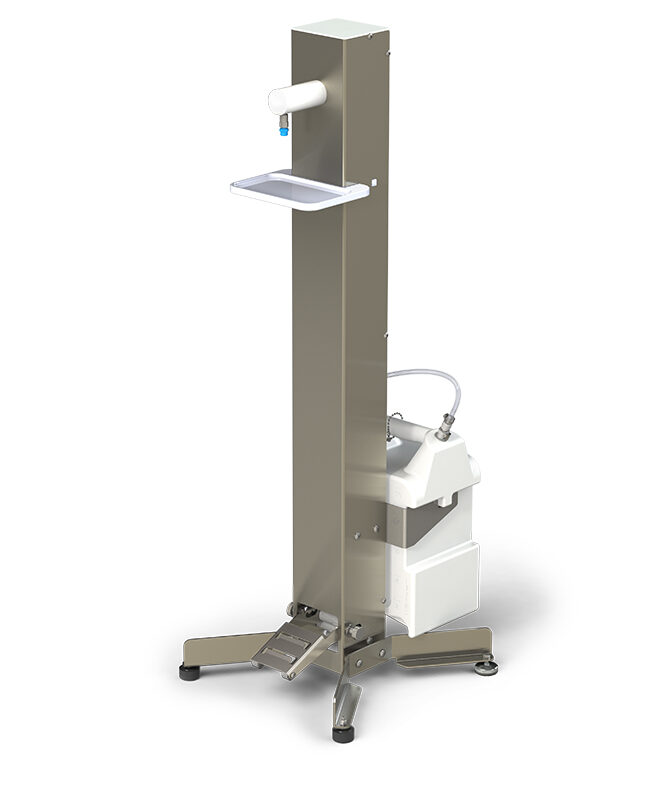

Our freestanding, foot-activated, stainless steel dispensing tower puts better hand sanitizing compliance within reach. Help promote good hand hygiene anywhere & everywhere, without the hassle of frequent refills or custom chemical packaging.

  • Manual operation – no power source required
  • Hands-free – activate with foot pedal
  • Designed for low-viscosity alcohol based sanitizers
  • Works with any chemical container and capacity
    • Use with bulk containers to save on cost, labor, and packaging waste
    • Includes chemical suction line with strainer
    • Includes mounting area for our 2.5 gallon chemical jugs or our standard 1 gallon jug rack (jug and racks not included; available separately as optional accessories)
  • Portable, freestanding station – simple to set up and move around
  • Stainless-steel construction
  • Three dispensing volume settings –
    • 0.05 oz (1.4 ml) per step – approx. 2560 dispenses per gallon (710 dispenses per liter)
    • 0.08 oz (2.3 ml) per step – approx. 1640 dispenses per gallon (430 dispenses per liter)
    • 0.14 oz (4 ml) per step – for priming
  • Leveling feet help maximize stability
  • Integrated drip tray

Datasheet

Hand Sanitizer Dispenser

User Manual

Hand Sanitizer Dispenser

POWER TYPE

Manual

CHEMICAL PICKUP TYPE

Draws from pre-mixed solution

NUMBER OF PRODUCTS UNIT CAN DRAW FROM

One product

SUCTION LINE LENGTH/DIAMETER

3 ft. (0.9 m) clear hose with 1/4 in. (6.4 mm) inside diameter

OUTPUT VOLUME

Priming: 0.14 oz (4.0 ml) Dispenser setting one: 0.08 oz (2.3 ml) Dispenser setting two: 0.05 oz (1.4 ml)

PUMP SEALS

Viton

OVERALL DIMENSIONS

16.25 x 16.25 x 47.5 in. (41.3 x 41.3 x 120.7 cm)

NOZZLE HEIGHT

Approximately 41 in. (104.1 cm) from floor

NOZZLE TYPE

90˚ full cone spray nozzle, 0.27 gal/min (1.02 l/min)

NUMBER OF NOZZLES

One

CHEMICAL COMPATIBILITY

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

CHEMICAL VISCOSITY REQUIREMENTS

Use with low viscosity sanitizers similar to water.

  • Hand sanitizer dispenser tower
  • User manual
  • NOTE: Chemical jug and mounting rack not included
