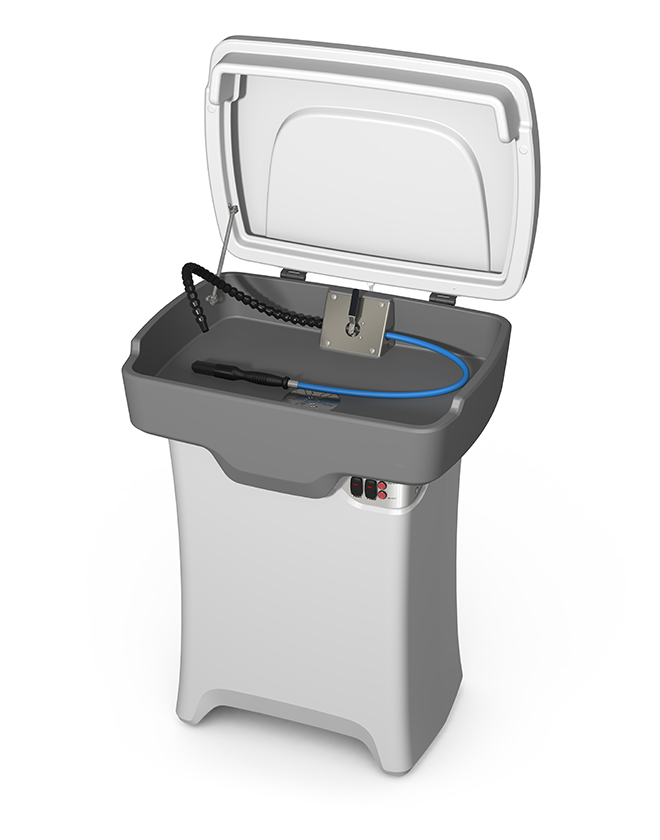

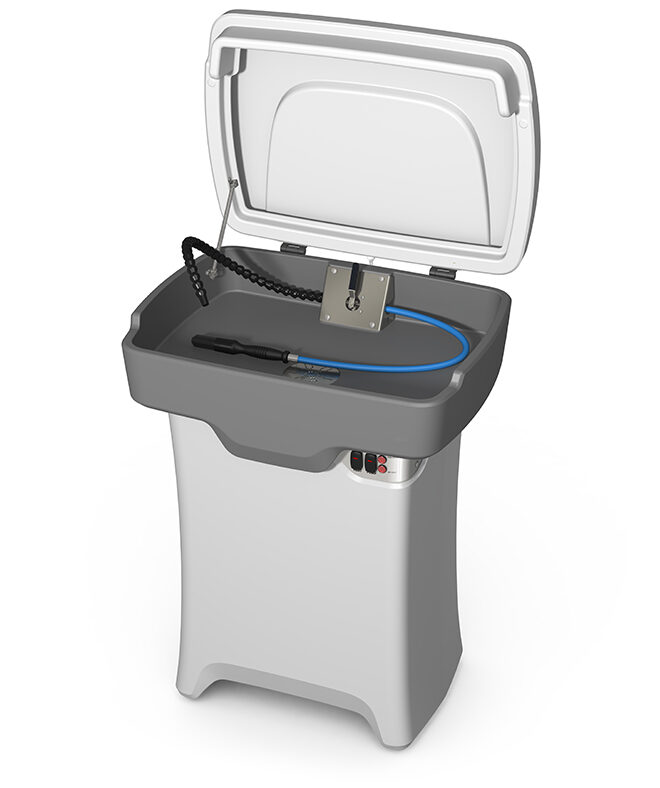

Heated Aqueous Parts Washer

#APW20HT

Stop using harsh solvents, and get a greener clean.

Our heated parts washer works with aqueous (water-based) chemistry, so it’s easier on your parts, your hands, and the planet.

  • Heats solution to 105 °F (40.6 °C) for better cleaning performance
  • Choose your chemistry – works with most aqueous (water-based) cleaning & degreasing products

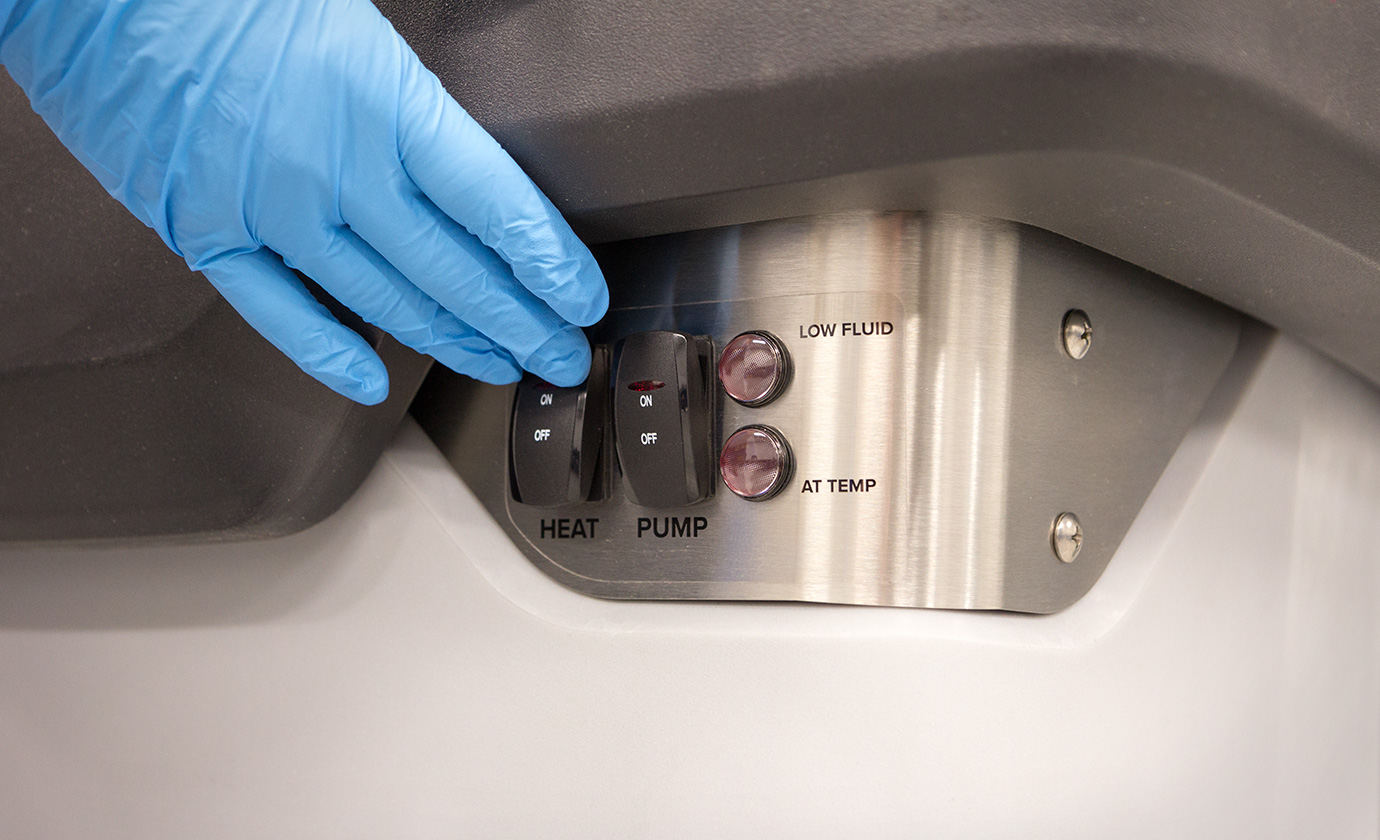

  • Separate heater & flow controls help you save energy during off hours
  • Counter-height work surface – 36 in. (91.4 cm)
  • 18 x 30 in. (45.7 x 76.2 cm) sink interior
  • Weight capacity – up to 400 lbs. (181.4 kg)
  • Adjustable output –

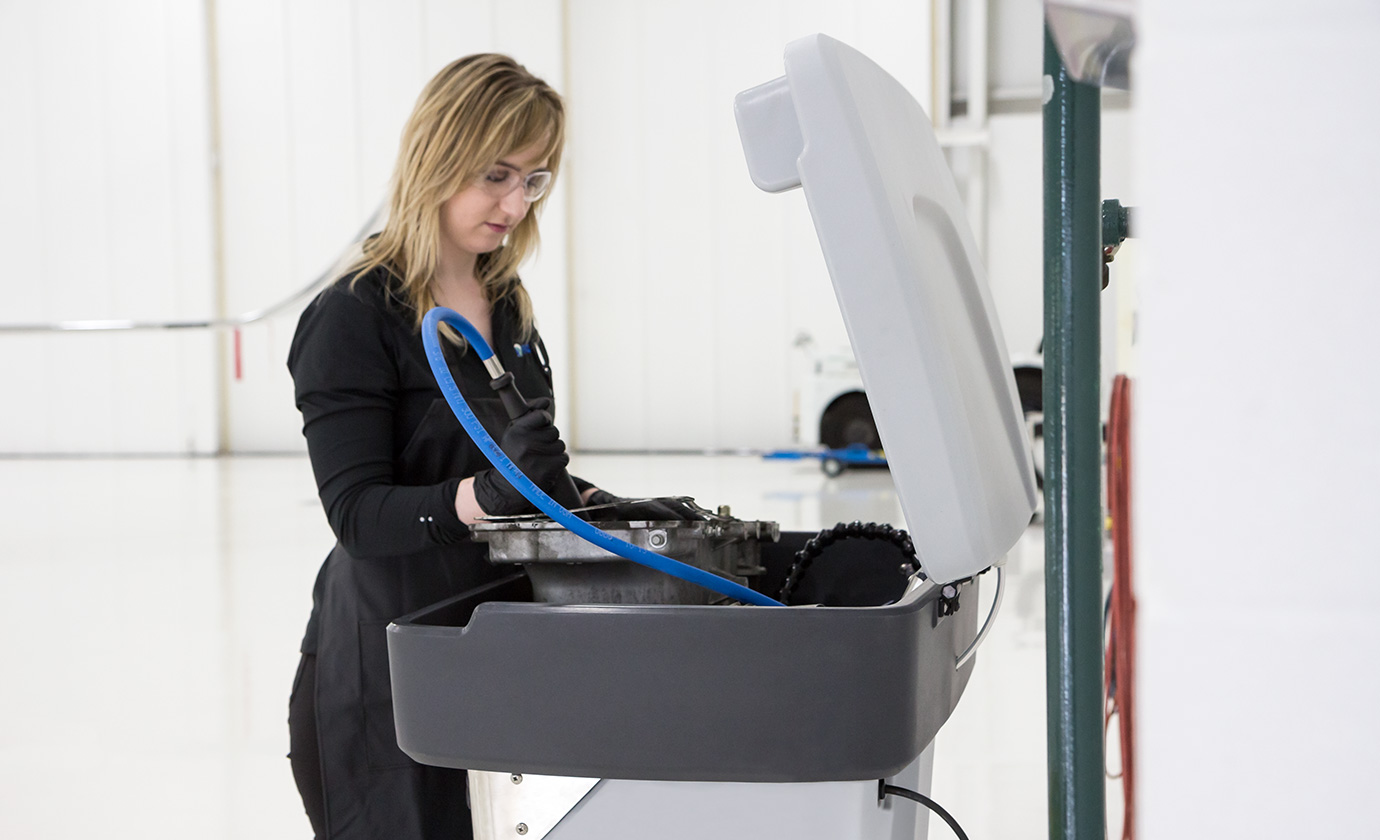

    • Flow-through brush and flexible rinse line – use simultaneously or separately
    • Rinse line flow control valve – adjust the flow rate as you work
  • Sink drain grate to catch small parts

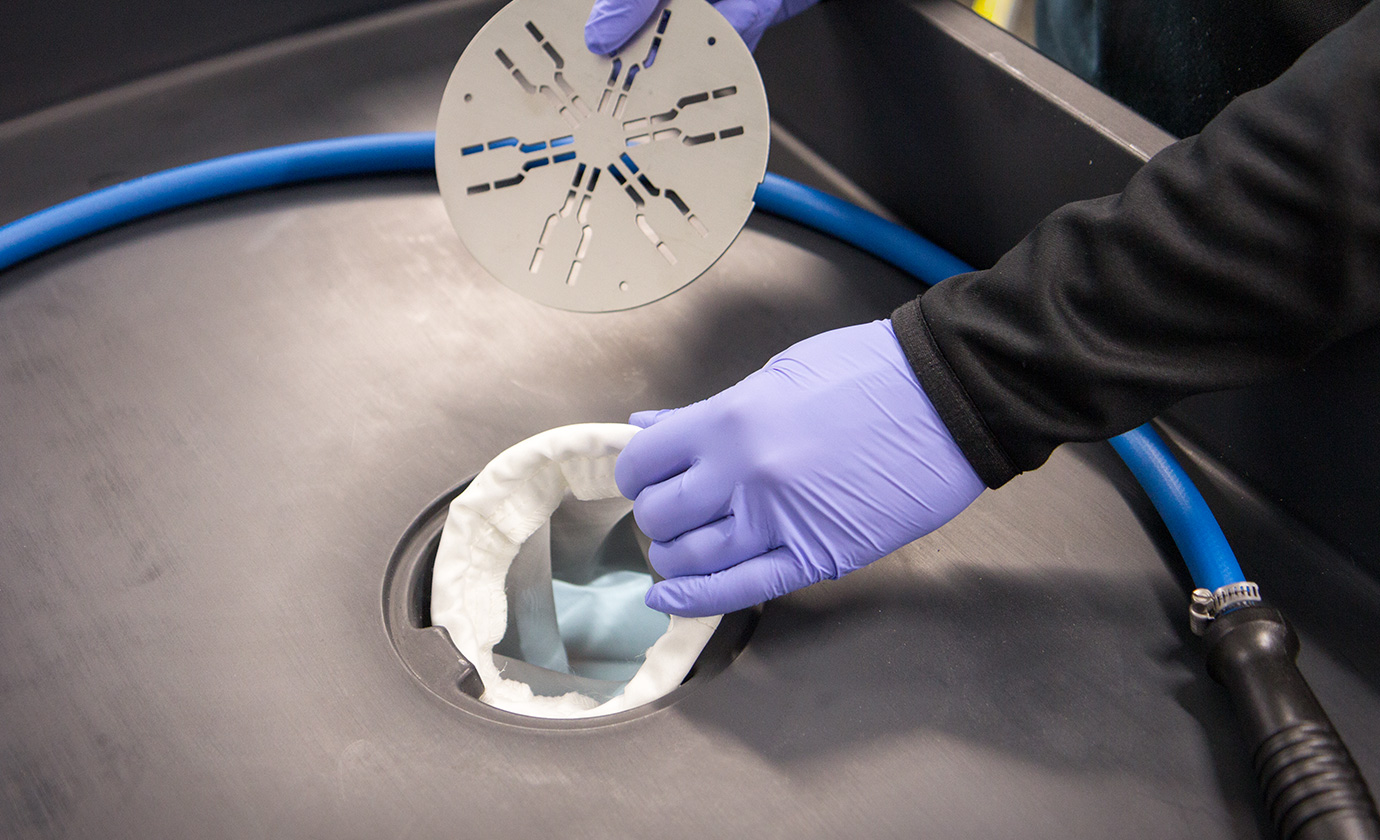

  • Top-access 250 micron filter
  • Lid with hold-open support – limits evaporation, but stays out of your way
  • Fluid capacity – 20 gallons (75.7 liters)
  • Durable construction
  • Designed for serviceability

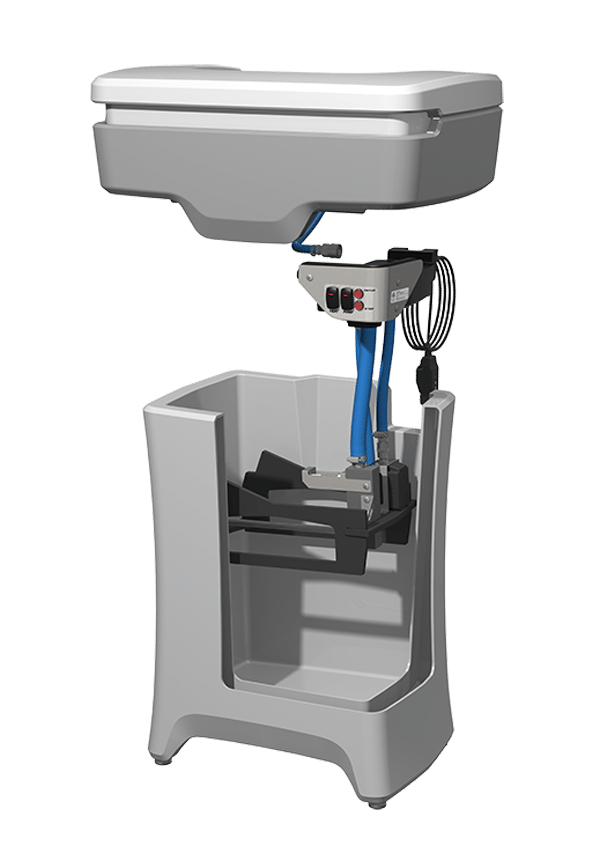

    • Modular design – easily separate base, sink, and control modules
    • Sloped interior base to collect sediment away from pump intake
    • Round interior corners for easy reservoir cleaning
  • Also available in a non-heated air operated version >>

Datasheet

Aqueous and Heated Aqueous Parts Washers

User Manual

Heated Aqueous Parts Washer

POWER TYPE

Electricity

CHEMICAL PICKUP TYPE

Draws from pre-mixed solution

NUMBER OF PRODUCTS UNIT CAN DRAW FROM

One product

FLUID CAPACITY

20 gallons (75.7 liters)

OUTPUT LINES

FLOW-THROUGH BRUSH:
3 ft. (0.9 m) hose with 1/4 in. (6.4 mm) inside diameter and flow-through brush

FLEXIBLE RINSE LINE:
2 ft. (0.6 m) modular hose with 1/2 in. (12.7 mm) inside diameter and 1/2 in. (12.7 mm) round nozzle

FLOW RATE

150 gal/hour (567.8 l/hour)

PUMP SEALS

Viton

HEATED OPERATING TEMPERATURE

105 ˚F (40.6 ˚C)

FILTER BAG

250 micron rating, size 4

WEIGHT CAPACITY

Up to 400 lbs. (181.4 kg)

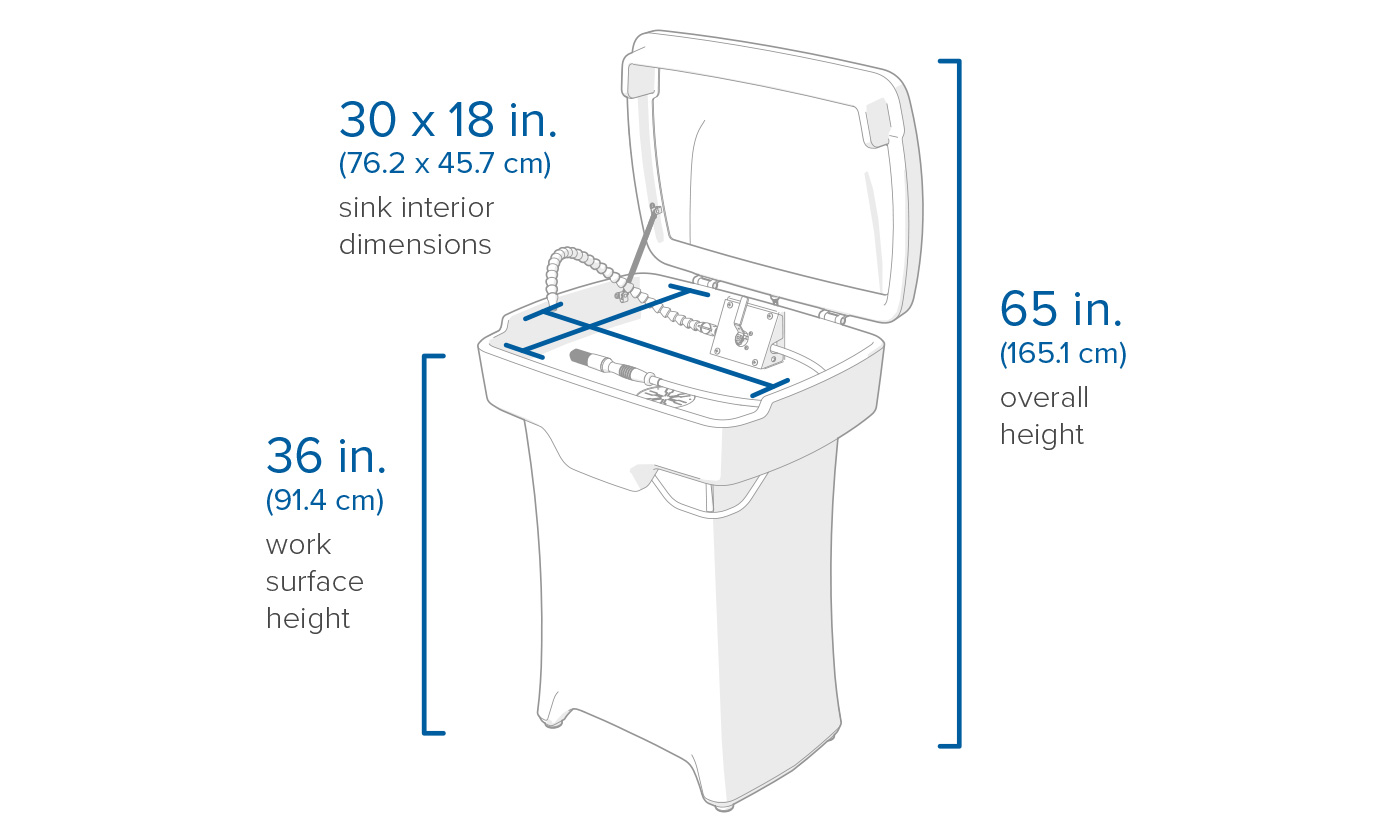

OVERALL EXTERIOR DIMENSIONS

33 x 25 x 65 in. (83.8 x 63.5 x 165.1 cm) with lid open

SINK INTERIOR DIMENSIONS

30 x 18 x 5 in. (76.2 x 45.7 x 12.7 cm)

WORK SURFACE HEIGHT

36 in. (91.4 cm)

FOOT TYPE

Four adjustable leveling feet

CERTIFICATIONS

Conforms to UL Std. 1204
Certified to CSA Std. 22.2# 68

INCOMING LIQUID TEMPERATURE RANGE

40-110 ˚F (4.4-43.3 ˚C)
NOTE: Heated operating temperature is 105 ˚F (40.6 ˚C).

ELECTRICAL REQUIREMENTS

120 VAC at 60 Hz, 20A

OPERATING VOLTAGE

120 VAC

CHEMICAL COMPATIBILITY

For use with aqueous solutions only. Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

Options

Color options available – order minimums may apply.
Contact sales@foamit.com for more info.

  • Complete unit (modular base, sink, & control box)
  • Four leveling feet
  • Sink drain grate and filter bag
  • User manual

FAQs

I need a parts washer that can run without electric power. Will this work?

This version requires electricity, but we also offer a non-heated air operated version that’s powered by compressed air.
