0.4 Gallon Spray Unit



  • efficient and ergonomic alternative to trigger sprayers

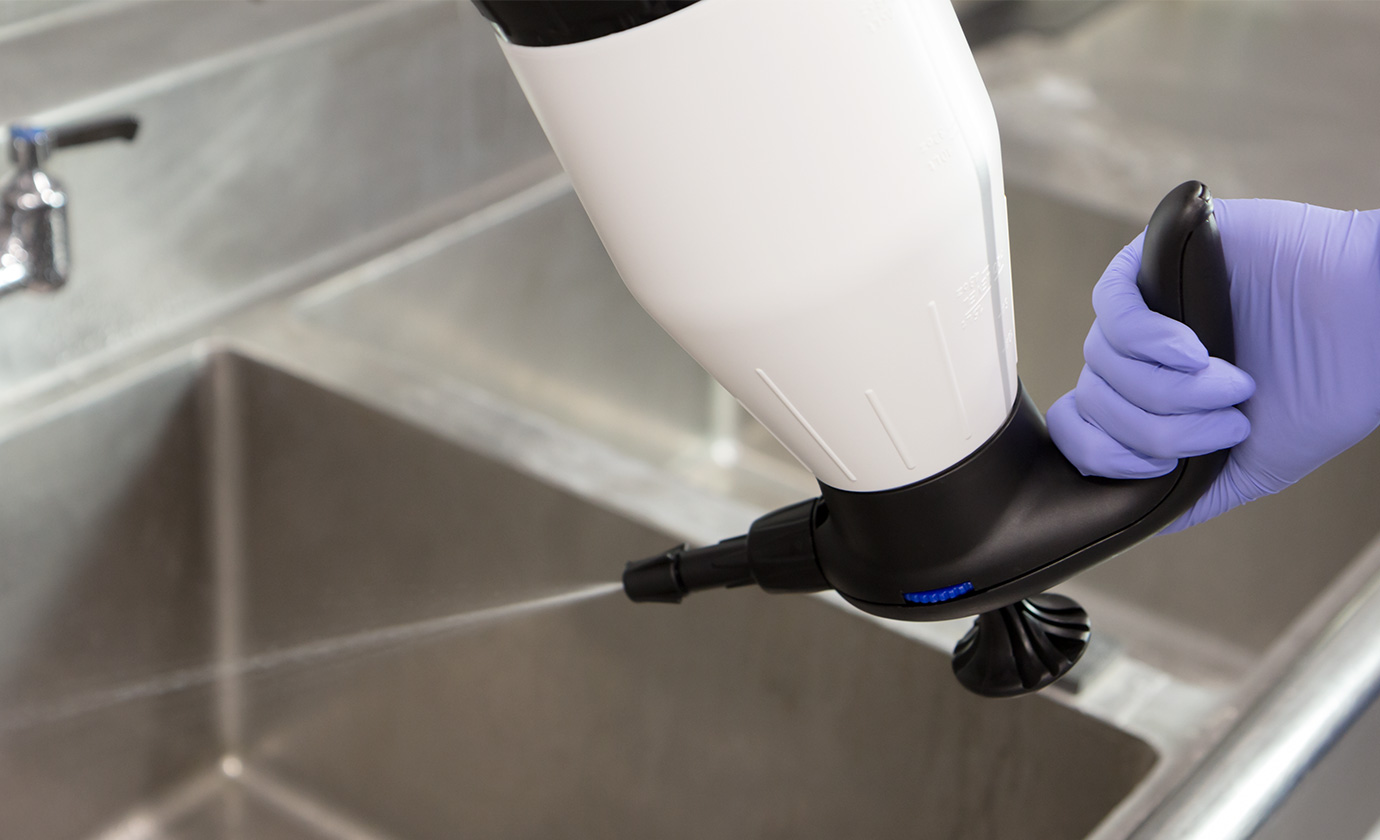

  • sprays at any angle, even upside down
  • compact unit with manual pump
  • maximum portability for small jobs and spot cleaning
  • comfortable grip handle with trigger for quick on/off control

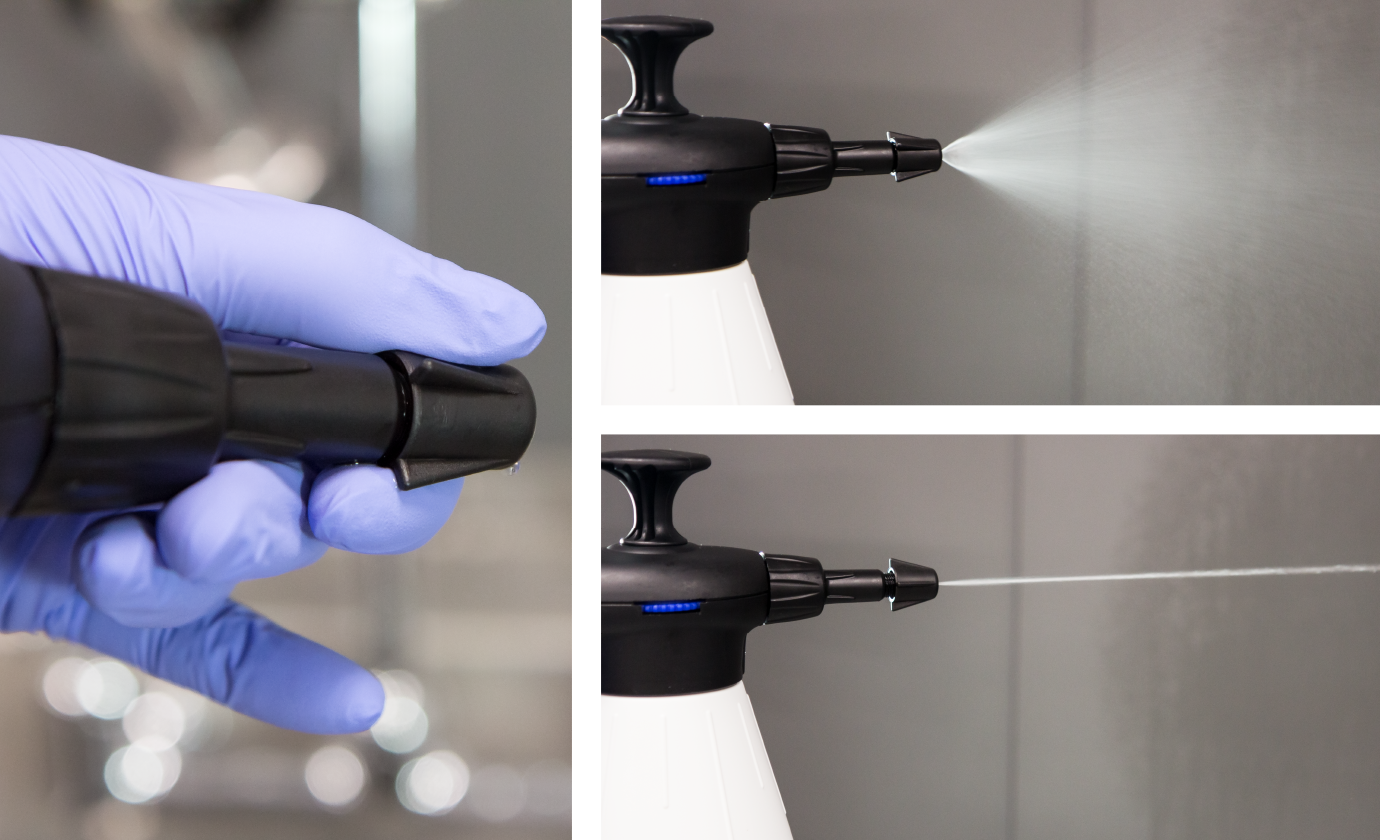

  • adjustable cone nozzle that ranges from spray to stream
  • pressure relief valve for safety
  • Viton pump seals for chemical compatibility
  • polypropylene tank and pump head
  • view stripe for easy visibility of product levels
  • stability base with gripping notches
  • color coding options:
    • tank – 2 colors (BK, WH)


0.4 Gallon Spray Unit

Operation Manual

0.4 Gallon Spray Unit

power type


chemical pickup type

draws from pre-mixed solution

number of products unit can draw from

one product


0.3 gallon (1.1 liter)

discharge wand/tip type

adjustable cone nozzle that ranges from spray to stream

output distance

1-8 ft (0.3-2.4 m)

output volume

10-26 oz/min

pump seals


run time from full tank

30 seconds to 1 minute and 45 seconds, depending on nozzle setting

liquid temperature range

40-100˚F (4.4-37˚C)

chemical compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

SP1.5L White (standard)
Black (BK)


Add option codes to item number as shown.  For standard options, no option code is needed.  Examples:

  • SP1.5L (standard unit)
  • SP1.5LBK (standard unit with black tank)
  • complete spray unit
  • user manual
