10 Gallon Lithium-ion Battery Powered Foam Unit

#FI-BP-10N

10 gallon lithium-ion battery-powered, portable, pre-mix foam unit with heavy duty trigger gun.

HOW TO BUY

features

  • draws from pre-mixed solution
  • battery powered – no air lines or power cords to hold you back
  • 45 minutes of continuous run time from one charge
  • to extend usage time, additional batteries can be used
  • easy-to-read battery level indicator on the battery
  • designed for easy serviceability
  • ideal for drain foaming, spot cleaning, and more
  • natural color tank for easy visibility of product levels
  • hinged lid

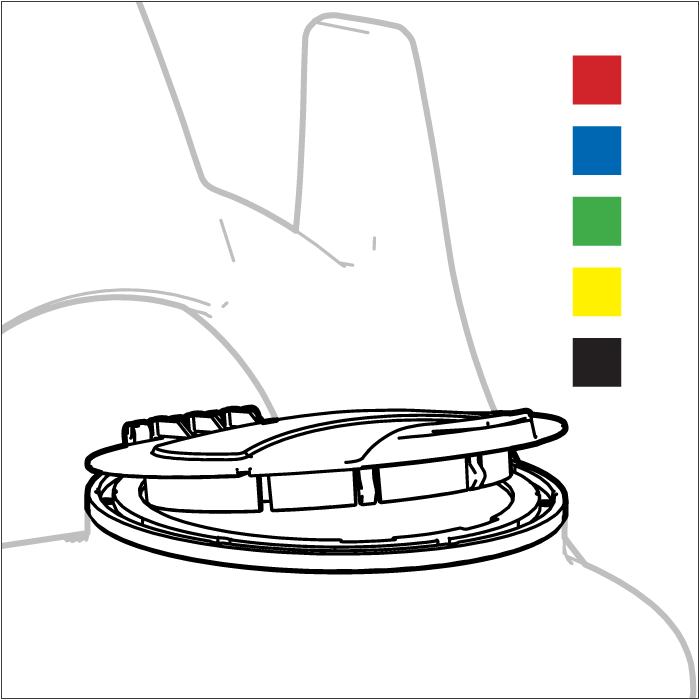

  • color coding options:
    • lid – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
    • discharge hose – 4 colors (BL, GN, YL, RD)
  • integrated hose wraps
  • in-line strainer to protect pump from debris
  • splash proof battery box for battery protection

Datasheet

10 Gallon Lithium-ion Battery Powered Foam Unit

Operation Manual

10 Gallon Lithium-ion Battery Powered Foam Unit - Operation Manual

power type

lithium-ion battery

battery charge time

1 hour 10 minutes

battery run time

45 minutes of continuous use

chemical pickup type

draws from pre-mixed solution

number of products unit can draw from

one product

suction line length/diameter

3/8 in. (9.5 mm) inside diameter

capacity

10 gallons (37.9 liters)

discharge line length/diameter:

12 ft. (3.7 m) hose, with 3/8 in. (9.5 mm) inside diameter

discharge wand/tip type

polypropylene spray gun with 80˚ fan tip

output distance

up to 5 ft. (1.5 m)

output volume

4.9 gal/min (18.5 l/min)

flow rate

0.5 gal/min (1.9 l/min)

pump seals

Santoprene diaphragm, Viton check seals

wheel type

two 10 inch (25.4 cm) non-marking wheels

liquid temperature range

40-100˚F (4.4-37.8˚C)

electrical requirements

120-240 VAC at 50-60 Hz, 3A
(GFCI protected outlet) for battery charger only

operating voltage

24 VDC

chemical compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

Color coding options
  • Lid – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
  • Discharge hose – 4 colors (BL, GN, YL, RD)
  • complete foam unit with discharge hose and wand
  • user manual
  • 24v Lithium-ion battery and charger
