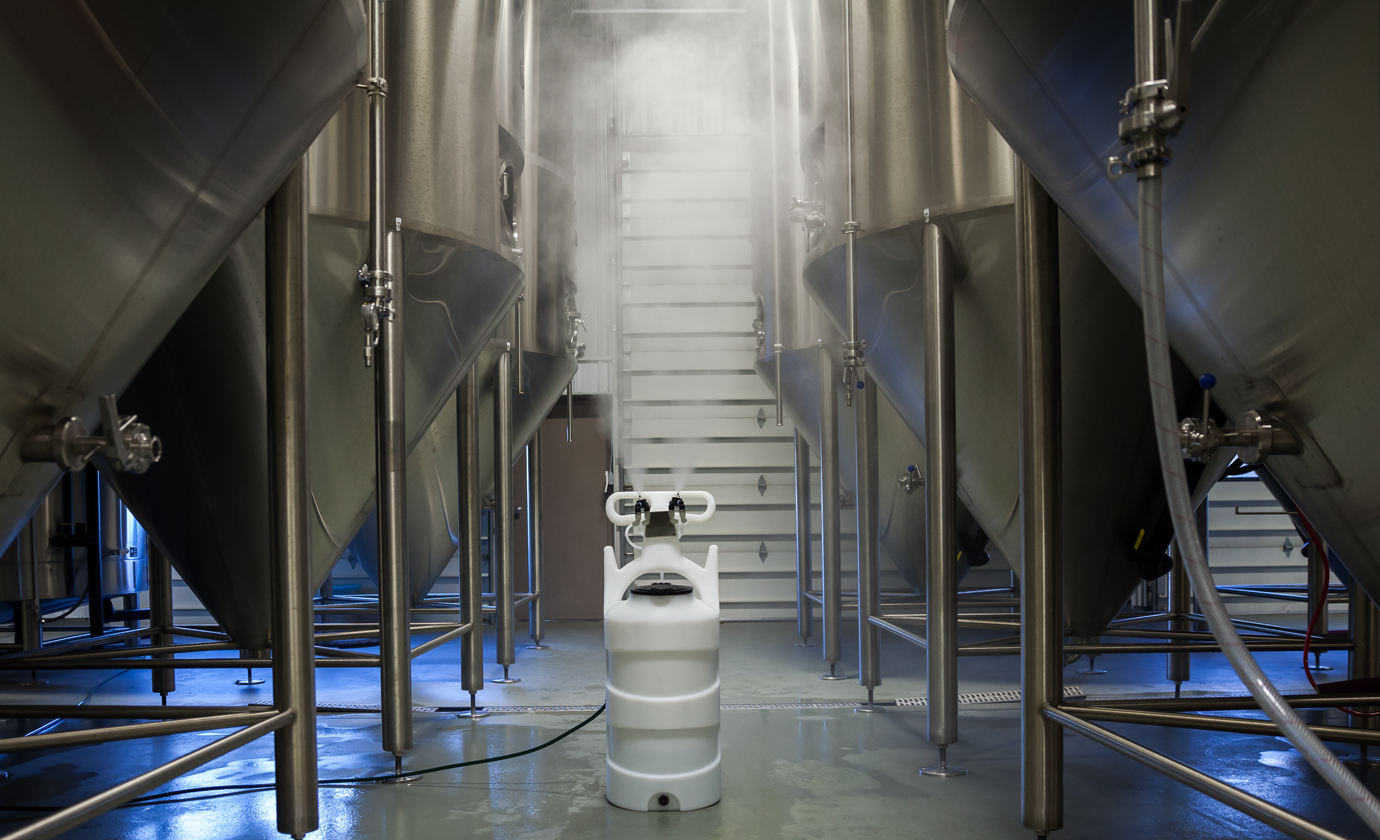

10 Gallon Mist Unit with 2 Nozzles
#MU-10N-210 gallon air-powered, portable, pre-mix mist unit with two nozzles. Configurable with Viton, Kalrez, or Santoprene seals and lid color options.
- QUICK LINKS:
- Get A Quote
features
- draws from pre-mixed solution
- powered by compressed air
- 2 nozzles mounted on the unit handle
- droplet size: 15 microns at 50 psi (3.4 bar)
- polypropylene and kynar nozzle construction
- a full tank of solution will supply the unit for approximately 1.5 hours
- optional timer with delay functionality – start unit and leave the room before it begins misting
- hinged back plate provides tool-free access to components
- quick-change pump
- natural color tank for easy visibility of product levels
- hinged lid
- color coding options:
- lid – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
- front-facing drain
- in-line strainer to protect pump from debris
Datasheet
10 Gallon Mist Unit with 2 Nozzles
Operation Manual
10 Gallon Mist Unit with 2 Nozzles - User Manual
Questions?
- power type
compressed air
- chemical pickup type
draws from pre-mixed solution
- number of products unit can draw from
one product
- suction line length/diameter
3/8 in. (9.5 mm) inside diameter
- capacity
10 gallons (37.9 liters)
- flow rate*
3.7 gal/hour (14 l/hour) at each nozzle
- pump seals
Santoprene, Viton, or Kalrez
- droplet size
15 microns at 50 psi (3.4 bar)
- coverage area**
1 liter of solution will cover approximately 1000 cubic feet (28.3 cubic meters), up to system max of 47,320 cubic feet (1340 cubic meters)
- height
41 inches (104 cm)
- run time from full tank**
approx. 1.5 hours
- number of nozzles
2 nozzles
- wheel type
two 10 inch (25.4 cm) non-marking wheels
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
**area covered and run time may vary based on humidity, air flow, and product used.
- compressed air
50 psi (3.4 bar) with 7 cfm (198.3 l/min)
- liquid temperature range
40-100˚F (4.4-37˚C)
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- complete unit with 2 nozzles
- user manual
Accessories
Support Videos
How to change a pump - with quick-change pump bracket
FAQs
Which pump seal material should I choose?
Pump Seal Material Compatibility
Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.
- Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
- Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
- Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
- If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
