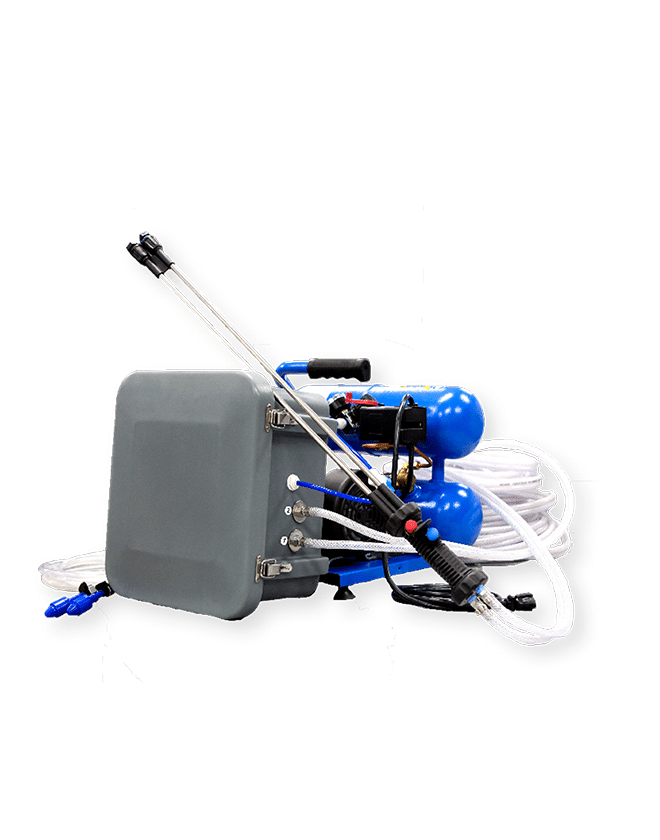

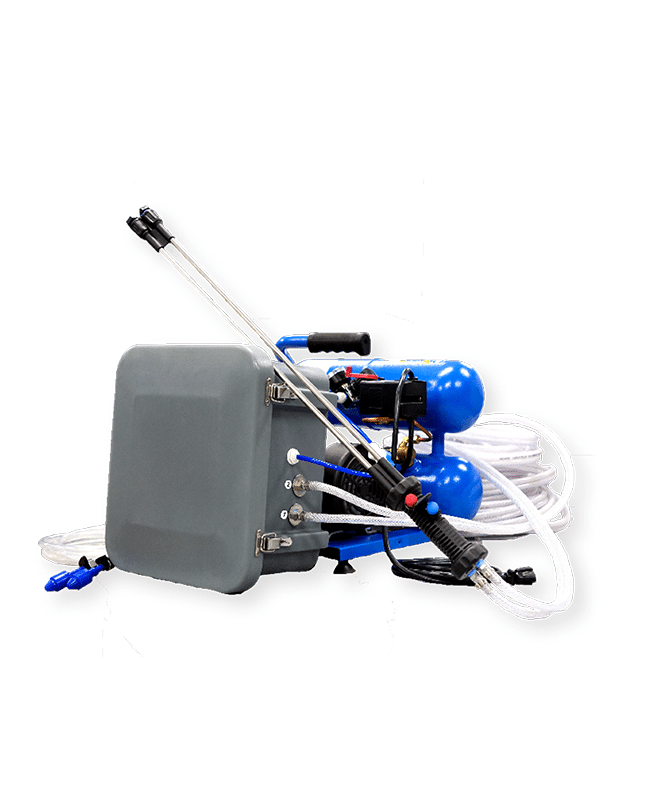

2-Product Electric Spray Unit

#SP-JRV-2-RAC

Features

The SP-JRV-2-RAC is designed for use with two-part products that are applied in series, but cannot be mixed together prior to application.

  • Powered by electricity (120 VAC)
  • Draws from pre-mixed solution
  • Draws two separate chemical products, with no shared wetted components
  • Double spray wand lets the user apply product A or B without having to switch between multiple wands
  • Viton pump seals
  • 100 ft. discharge hose
  • Flow rate: up to 1 GPM per nozzle
  • 40° fan tip spray system

Datasheet

2-Product Electric Spray Unit

Power Type

Compressed Air, Electricity

Chemical Pickup Type

Draws from pre-mixed solution

number of products unit can draw from

Two products, simultaneously (One product per pump)

Suction line length/diameter

6 ft. (1.8m) clear hose with 1/4 in. (6.4mm) inside diameter

Discharge line length/diameter

100 ft. (30.5m) twin-line hose with 1/4 in. (6.4mm) inside diameter

Discharge wand/tip type

Handheld double-barrel spray wand with two stainless steel 40˚ fan tips and two triggers

Output distance

6 ft. (1.8 m)

Flow rate*

Using one side of the double-barrel spray wand = 0.75 gal/min

Using both sides simultaneously = 1.38 gal/min

Pump seals

Viton

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

**Area covered and run time may vary based on humidity, air flow, and product used.

Compressed air requirements

40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)

Liquid Temperature range

40-100˚F (4.4-37˚C)

Electrical requirements

120 VAC at 60 Hz, 2 amps (GFCI protected outlet)

Operating voltage

120 VAC

Chemical Compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
