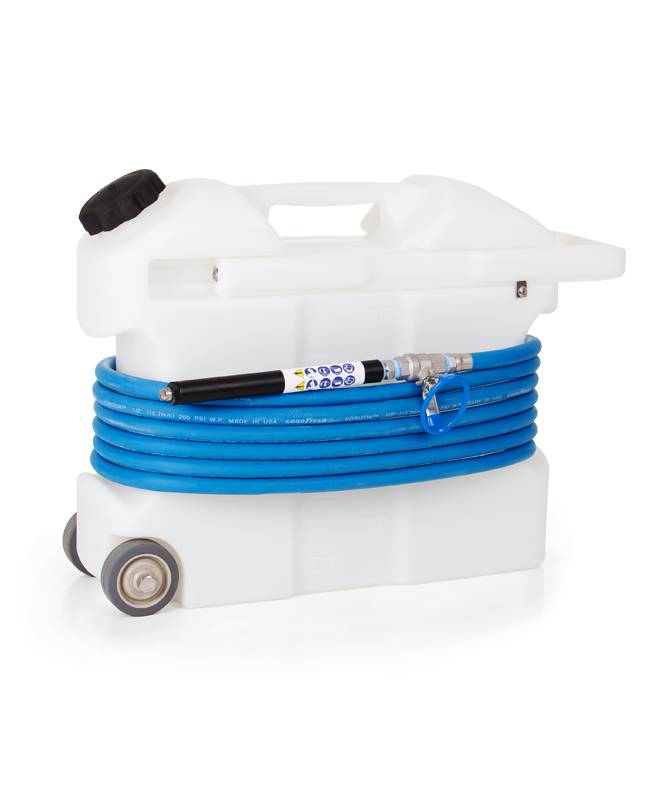

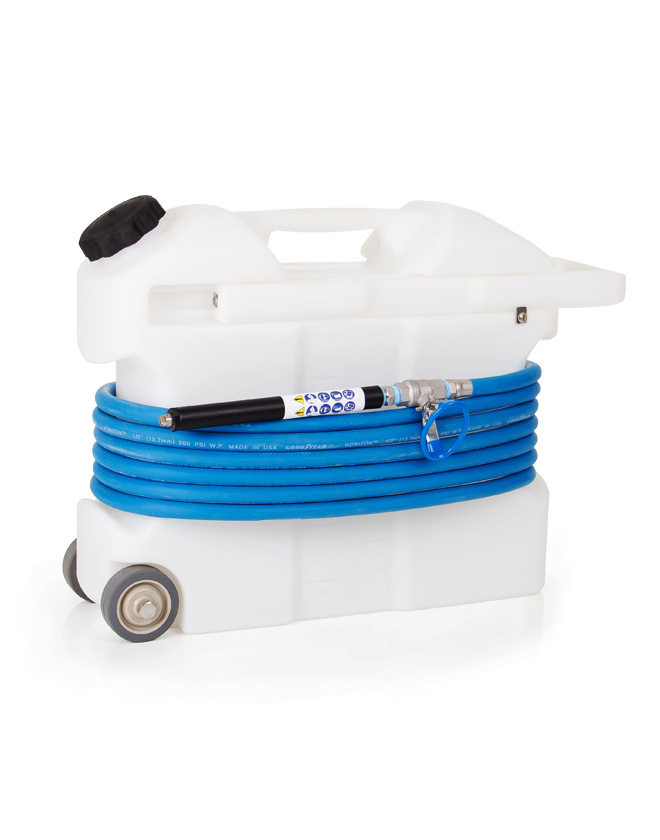

5 Gallon Gel Unit

#GI-5N

Features

  • Draws from pre-mixed solution
  • Powered by compressed air
  • Hinged back plate provides tool-free access to components

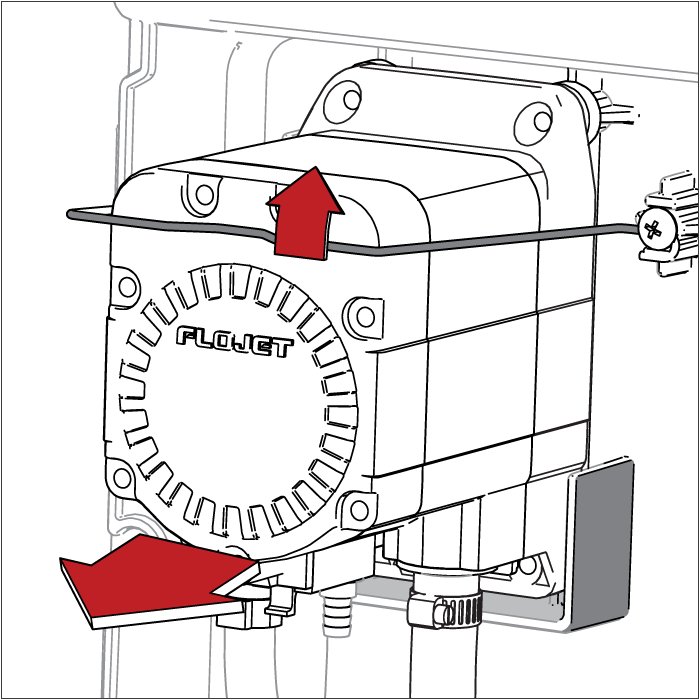

  • Quick-change pump
  • Natural color tank for easy visibility of product levels
  • Integrated hose wraps
  • In-line strainer to protect pump from debris
  • Pull out handle for portability
  • Fan tip wand assembly for increased coverage
  • Anti-kink hose protection
  • Color coding options:
    • Lid – 7 colors (BK, BL, GN, YL, RD, PL, OR)
    • Discharge hose – 4 colors (BL, GN, YL, RD)

Datasheet

5 Gallon Gel Unit

User Manual

5 Gallon Gel Unit

POWER TYPE

Compressed air

CHEMICAL PICKUP TYPE

Draws from pre-mixed solution

NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME)

One product

SUCTION LINE LENGTH/DIAMETER

3/8 in. (9.5 mm) inside diameter

CAPACITY

5 gallons (18.93 liters)

DISCHARGE HOSE DIAMETER/LENGTH

20 ft. (6.1 m) hose, with 1/2 in. (12.7 mm) inside diameter

DISCHARGE WAND/TIP TYPE

10 in. (50.8 cm) poly wand with fan tip and ball valve (Spray tips included: ST1510, ST2508, and ST4008)

OUTPUT DISTANCE

6-10 ft. (1.8-3 m) (Varies due to viscosity of product)

OUTPUT VOLUME

0.5-1 gal/min (1.89-3.79 l/min) (Varies due to viscosity of product and fan tip size)

FLOW RATE*

2 gal/min (7.6 l/min) (Varies based on spray tip used)

PUMP SEALS

Santoprene, Viton, or Kalrez

WHEEL TYPE

Two 3 inch non-marking wheels

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

COMPRESSED AIR REQUIREMENTS

40-80 psi (3-5 bar) with 2 cfm (28.3 l/min)

LIQUID TEMPERATURE RANGE

40-100˚F (4.4-37˚C)

CHEMICAL COMPATIBILITY

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

Options
  PUMP SEAL OPTIONS
GI-5N Santoprene (standard)
Viton (V)
Kalrez (K)



Add option codes to item number as shown.  For standard options, no option code is needed.  Examples:

  • GI-5N (standard unit with Santoprene pump seals)
  • GI-5NV (unit with Viton pump seals)

Other available options:

  • Color coding – lid +/or discharge hose
  • Complete unit with discharge hose and wand
  • Extra spray tips with different flow rates and fan patterns
  • User manual

FAQs

Which pump seal material should I choose?

Pump Seal Material Compatibility

Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.

  • Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
  • Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
  • Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
  • If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.

Accessories

Support Videos

How to change a pump - with quick-change pump bracket

How to replace a hose or wand
