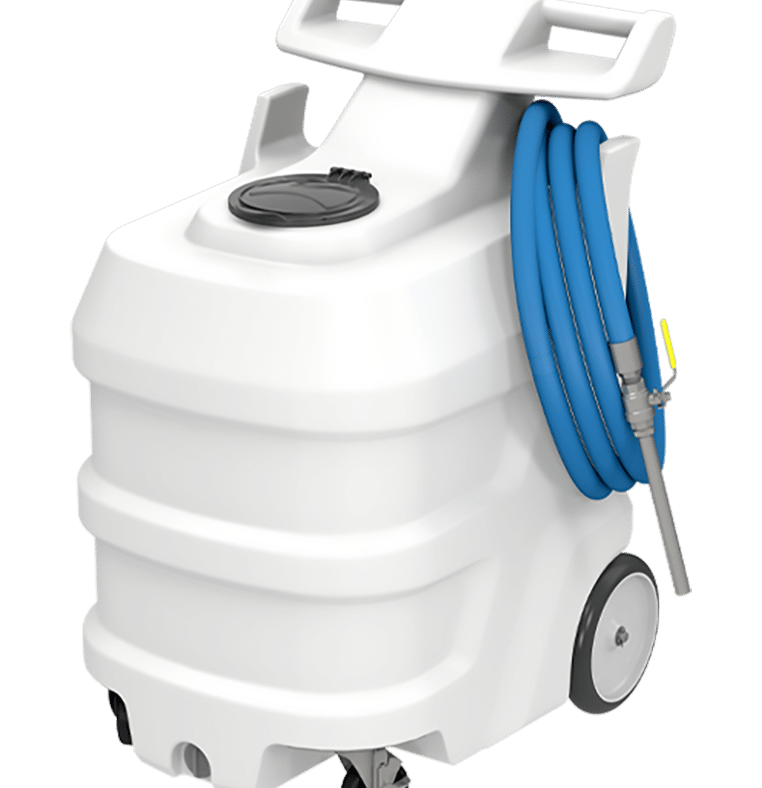

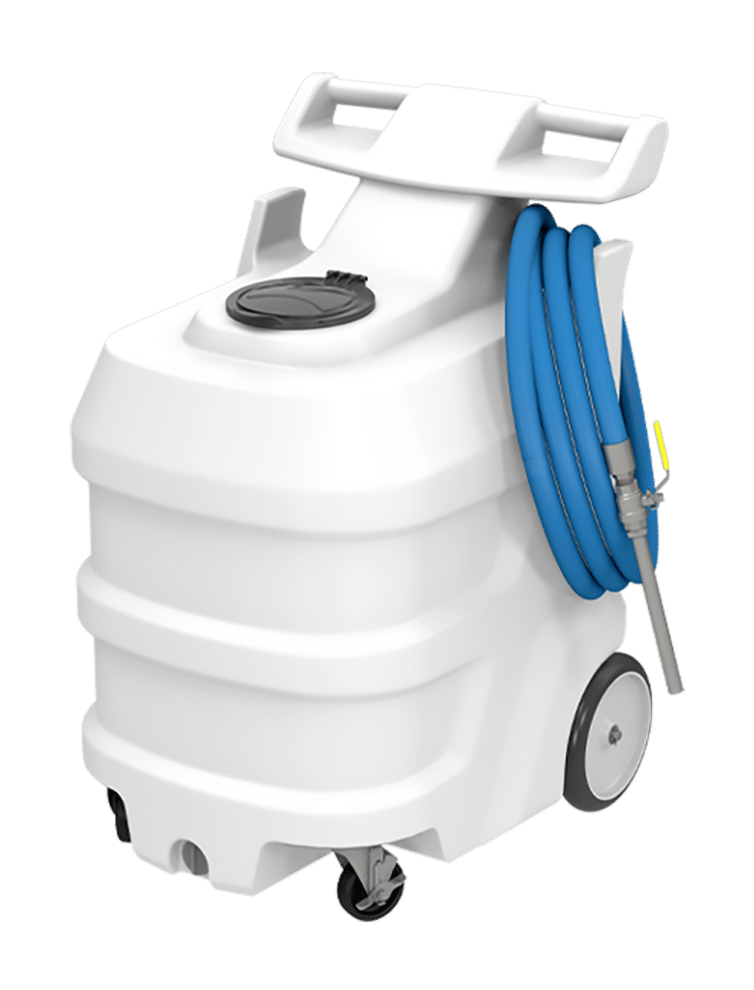

50 Gallon High Volume Foam Unit

#FI-50NT-HV

50 gallon air-powered, portable, pre-mix, high volume foam unit. Sealed with Teflon and color options available for the hose and lid.

HOW TO BUY

features

  • high volume output for increased efficiency
  • 3/4 inch Teflon pump
  • 1 inch discharge hose allows for greater expansion of foam
  • natural color tank for easy visibility of product levels
  • hinged lid
  • integrated hose wrap
  • front-facing drain

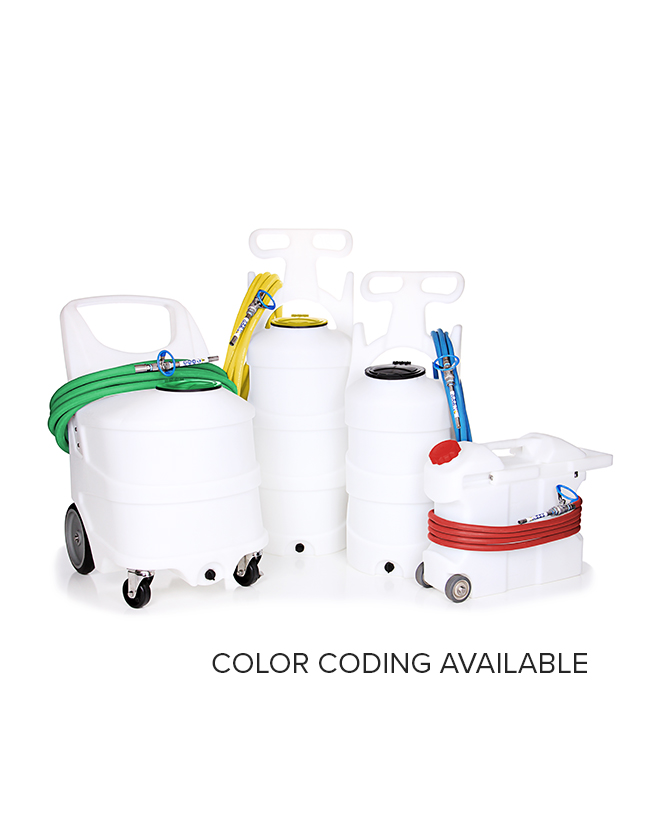

  • color coding options:

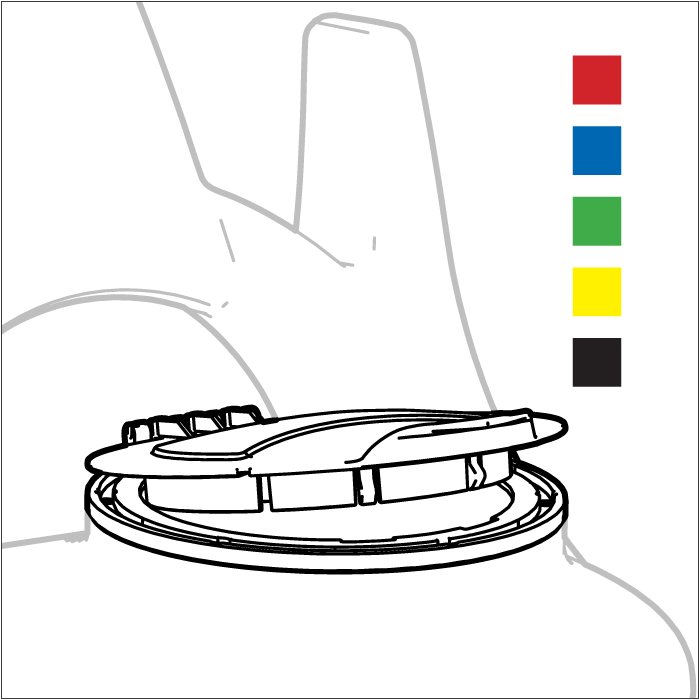

    • lid – 7 colors (BK, BL, GN, YL, RD, PL, OR)

Datasheet

50 Gallon High Volume Foam Unit

Operation Manual

50 Gallon High Volume Foam Unit

power type

compressed air

chemical pickup type

draws from pre-mixed solution

number of products unit can draw from (and whether it draws simultaneously or one at a time)

one product

suction line length/diameter

3/4 in. (19 mm) inside diameter

capacity

50 gallons (189.27 liters)

discharge hose length/diameter

50 ft. (15.24 m) hose, with 1 in. (25.4 mm) inside diameter

discharge wand/tip type

10 in. (2.54 cm) stainless steel wand with zero tip and ball valve

output distance

40 ft. (13.19 m)

output volume

92 gal/min (348.26 l/min) of foam

flow rate*

5 gal/min (18.93 l/min)

pump seals

Teflon

wheel type

two 10 inch non-marking wheels, two 5 inch casters with lock

*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

compressed air

40-100 psi (2.1-6.9 bar) with 12-20 cfm (339.8-566.3 l/min)

liquid temperature range

40-100˚F (4.4-37˚C)

chemical compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

options
  • color coding – lid
  • complete foam unit with discharge hose and wand
  • user manual

Accessories

Support Videos

How to adjust the wet/dry foam needle valve

Cómo ajustar la válvula de la aguja de la espuma húmeda o seca

How to replace a check valve

How to replace a hose or wand
