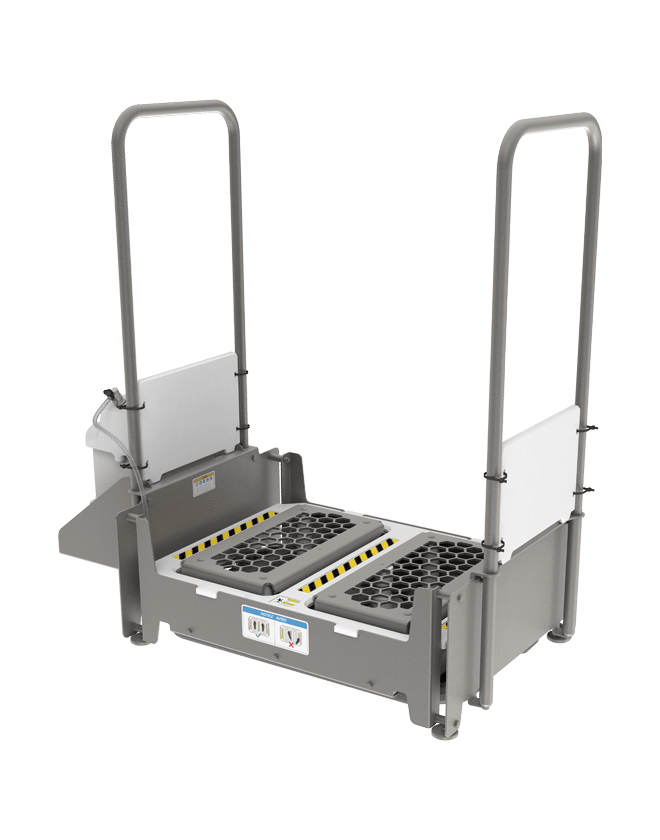

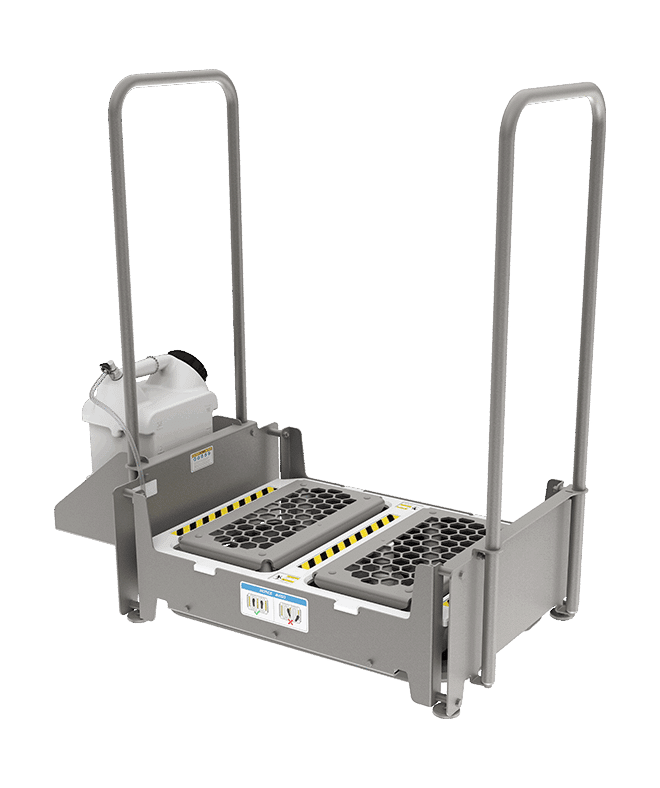

Airless Walk-Through Footwear Sanitizing Unit

#SS5

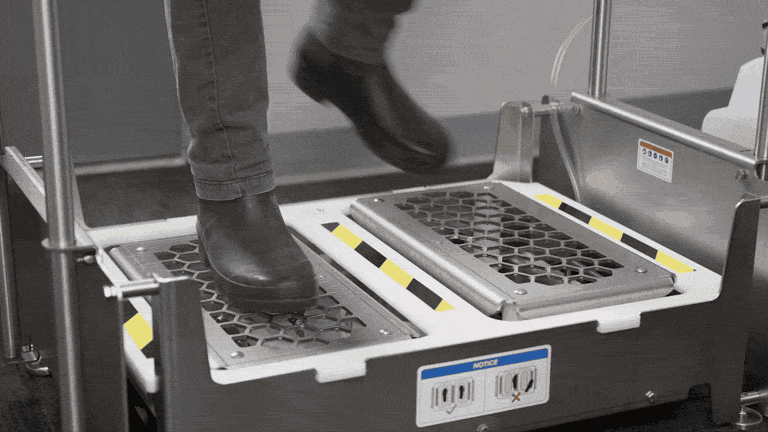

Walk-through footwear sanitation unit powered by the force of a human step. Includes a 2.5 gallon jug and draws from pre-mixed solution.

DATASHEET OPERATION MANUAL SERVICE MANUAL

HOW TO BUY

Features

Easy-to-use sanitation for entryways and transition zones with no utility installation required
No compressed air or electricity needed
Low-moisture system with efficient spray tips for complete coverage
Draws from pre-mixed solution
Includes 2.5 gallon jug with suction hose
Designed for water- or alcohol-based chemistries

Airless Walk-Through Footwear Sanitizing Unit

Download

Airless Walk-Through Footwear Sanitizing Unit - Operation Manual

Download

Power type: manual
Chemical pickup type: draws from pre-mixed solution
Number of products unit can draw from: one product
Suction line length/diameter: 4 ft. (1.2 m) clear hose with 1/4 in. (96.4 mm) inside diameter
Output volume: 0.14 oz. (4.14 mL) per spray, per foot – 0.28 oz (8.28 mL) total
Pump seals: Viton
Number of nozzles: 8 nozzles (4 per foot)

*Rates given are based on chemical with viscosity of water. These rates can vary based on viscosity of product.

Chemical compatibility: Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
Liquid temperature range: 40-100˚F (4.4-37.8˚C)

Options: – Configurations

SS5 None (standard)

No jug (NJG)

Add option codes to item number as shown. For standard options, no option code is needed. Examples:

SS5 (standard unit)

SS5 (unit without chemical jug)

	– Configurations
SS5	None (standard)
No jug (NJG)
