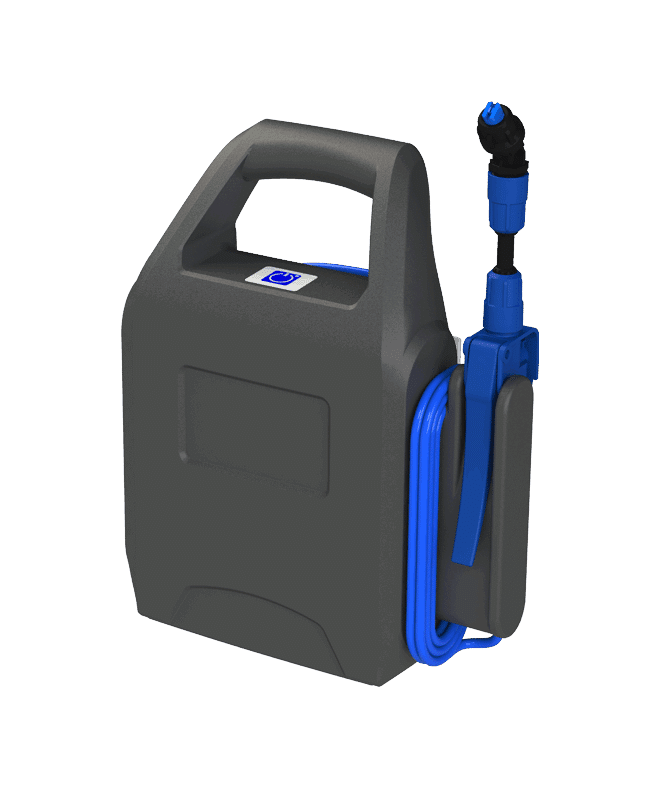

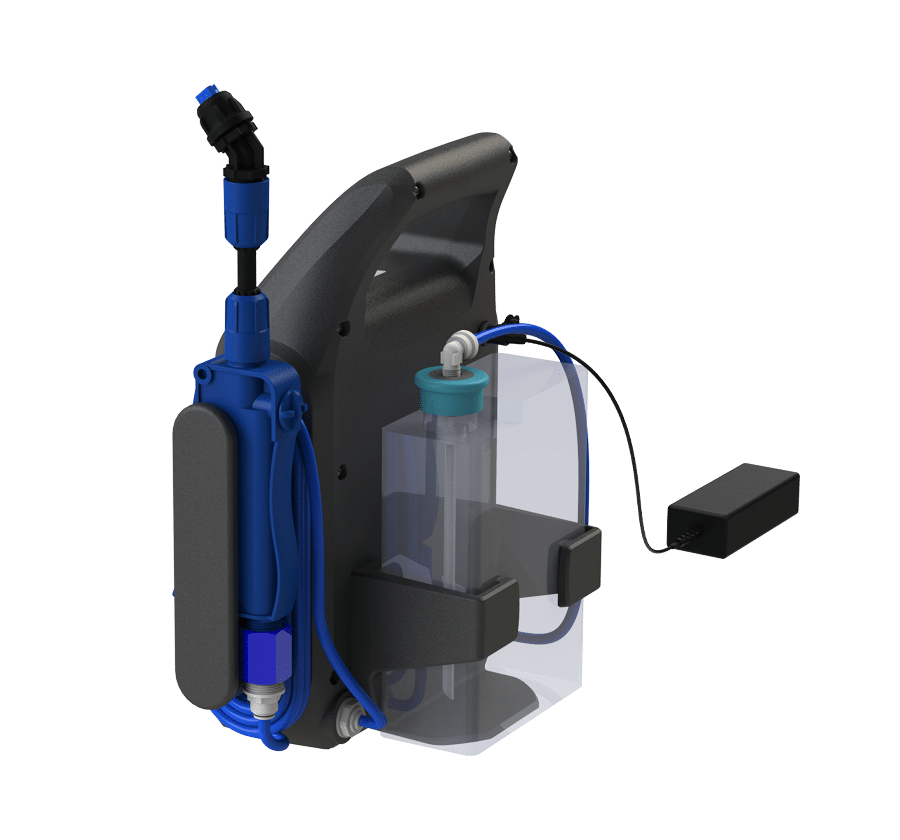

Battery Powered Ultra-Low Volume Foam Unit
#FI-BPULVBattery-powered, portable, ultra-low volume foam unit with heavy duty trigger gun.
- QUICK LINKS:
- Get A Quote
Features
- Draws from pre-mixed solution
- Battery powered – no air lines or power cords to hold you back
- Up to 60 minutes of use from one charge
- Integrated hose wraps
Datasheet
Battery Powered Ultra-Low Volume Foam Unit
Operation Manual
Battery Powered Ultra-Low Volume Foam Unit - Operation Manual
Questions?
- Power type
battery
- Battery charge time
1 hour 40 minutes
- Battery run time
up to 60 minutes of continuous use
- Chemical pickup type
draws from pre-mixed solution
- Number of products unit can draw from
one product
- Capacity
0.3 gallons (1 liter)
- Discharge line length/diameter
4.5 ft. (1.4 m) tube with 1/4 in. (6.4 mm) outside diameter
- Discharge wand/tip type
Polypropylene trigger valve with 80 degree fan tip
- Output volume
0.41 gal/min (1.6 l/min)
- Flow rate/usage
0.07 gal/min (0.3 l/min)
- Pump seals
EPDM diaphragm / EPDM check seals
- Product height
15.3 in. (388.6 mm)
- Run time from full tank
Approx. 4 min.
- Number of nozzles
one
- Tubing/fitting sizes
1/4 in. (6.4 mm) tube
- Liquid temperature range
40-100˚F (4.4-37.8˚C)
- Electrical requirements
Input: 12.6VDC 2A 25.2W
Charger Input: 100-240VAC at 50-60Hz 1.5A (GFCI protected outlet) for battery charger only- Operating voltage
12 VDC
- Chemical compatibility
chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- complete unit with discharge hose and wand
- user manual
