Pre-Mix Spray Unit with All-Poly Fittings

#SP-WALL-AP

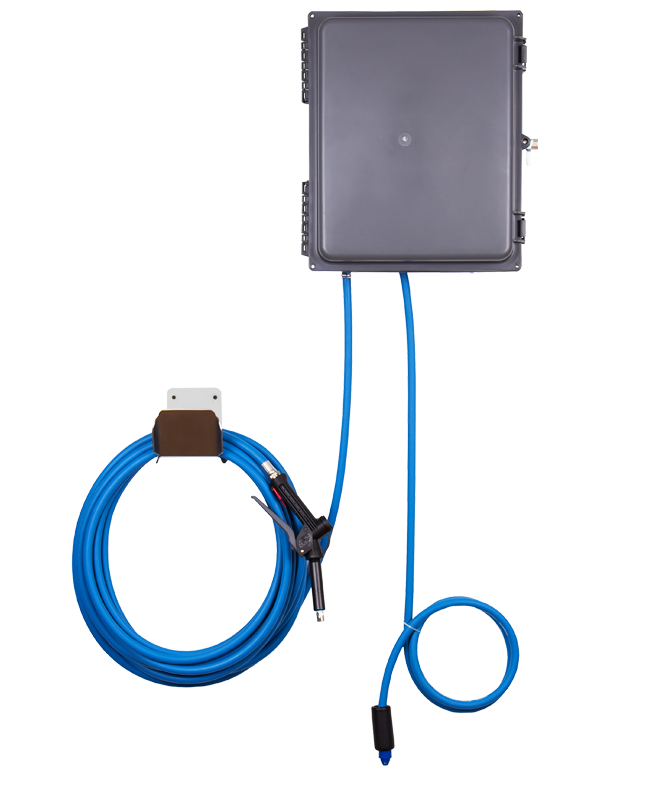

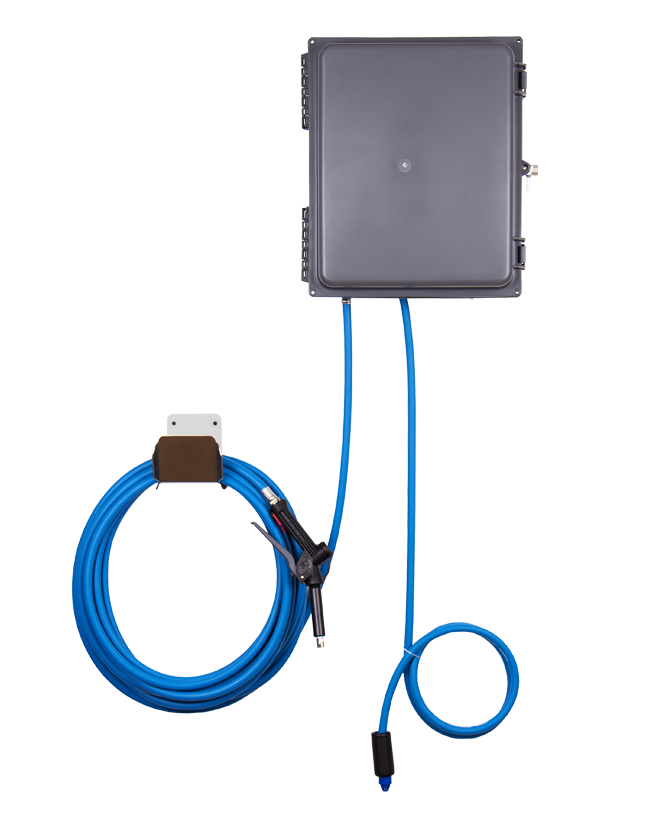

Wall mounted, air-powered, pre-mix spray unit with all-poly fittings. Includes poly spray gun wand with color coding hose options.

HOW TO BUY

features

  • draws from pre-mixed solution
  • powered by compressed air
  • quick-change pump

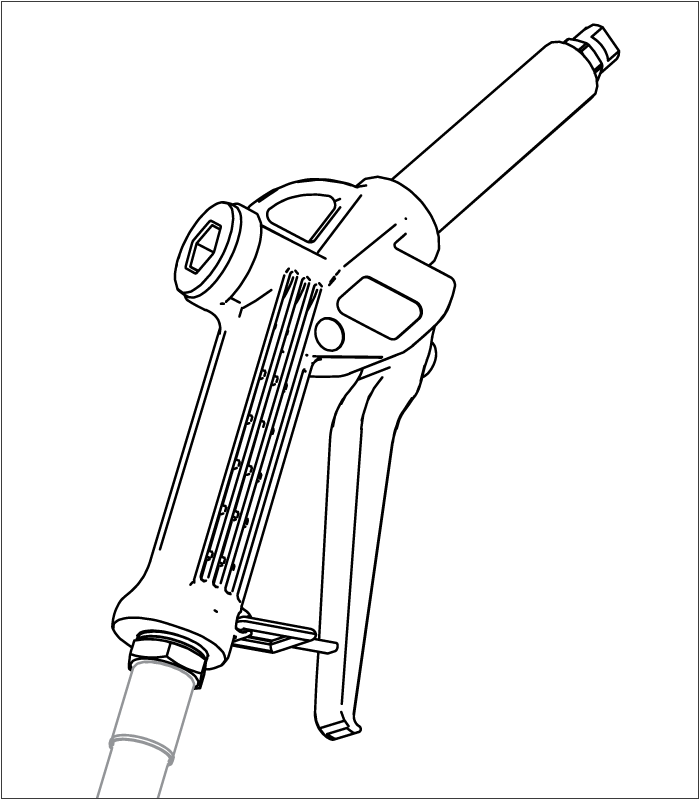

  • poly spray gun wand with fan tip
  • all-poly fluid fittings to increase chemical compatibilty

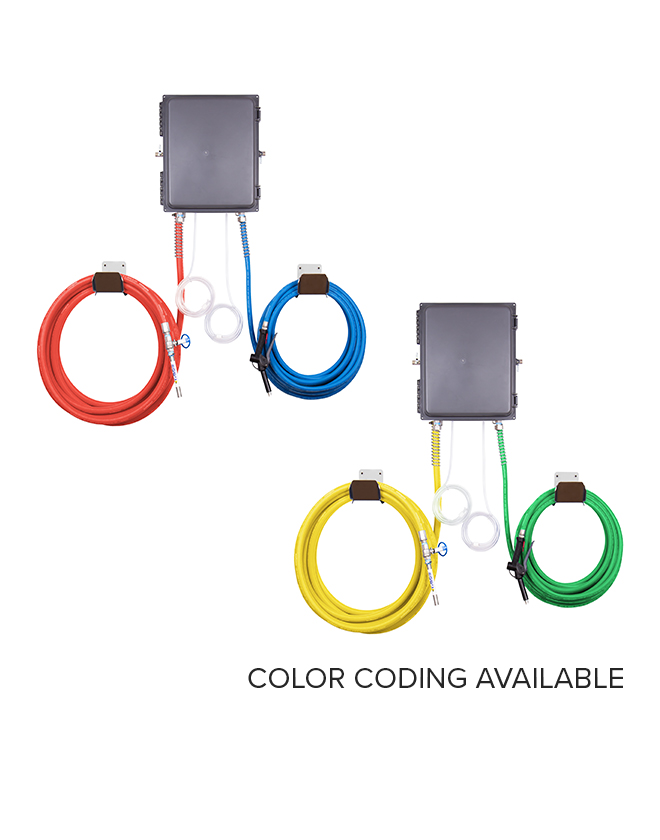

  • color coding options:
    • discharge hose – 4 colors (BL, GN, YL, RD)

Datasheet

Pre-Mix Spray Unit with All-Poly Fittings

Operation Manual

Pre-Mix Spray Unit and Pre-Mix Spray Unit with All-Poly Fittings - Operation Manual

power type

compressed air

chemical pickup type

draws from pre-mixed solution

number of products unit can draw from

one product

suction line length/diameter

8 ft. (2.4 m) hose with 3/8 in. (9.5 mm) inside diameter

discharge hose length/diameter

50 ft. (15.2 m) hose, with 3/8 in. (9.5 mm) inside diameter

discharge wand/tip type

polypropylene spray gun with 25˚ fan tip

output distance

10-12 ft. (3.0-3.7 m)

output volume

2 gal/min (7.6 l/min)

flow rate*

2 gal/min (7.6 l/min)

pump seals

Santoprene, Viton, or Kalrez

fluid fitting type

All-Poly

*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

compressed air requirements

40-80 psi (2.8-5.5 bar) with 2 cfm (56.6 l/min)

liquid temperature range

40-100˚F (4.4-37.8˚C)

chemical compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

options
PUMP SEAL MATERIAL
SP-WALL Santoprene (standard) -AP
Viton (V)
Kalrez (K)



Add option codes to item number as shown.  For standard options, no option code is needed. Examples:

  • SP-WALL-AP (standard unit with Santoprene pump seals)
  • SP-WALLV-AP (unit with Viton pump seals)

other available options:

  • color coding – discharge hose
  • control box assembly
  • discharge hose and wand
  • mounting hardware
  • stainless steel hose rack
  • user manual

Accessories

Support Videos

How to change a pump - with quick-change pump bracket

How to replace a hose or wand

FAQs

Which pump seal material should I choose?

Pump Seal Material Compatibility

Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.

  • Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
  • Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
  • Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
  • If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
