Single-Line Pre-Mix Doorway Foam Unit

#DS1

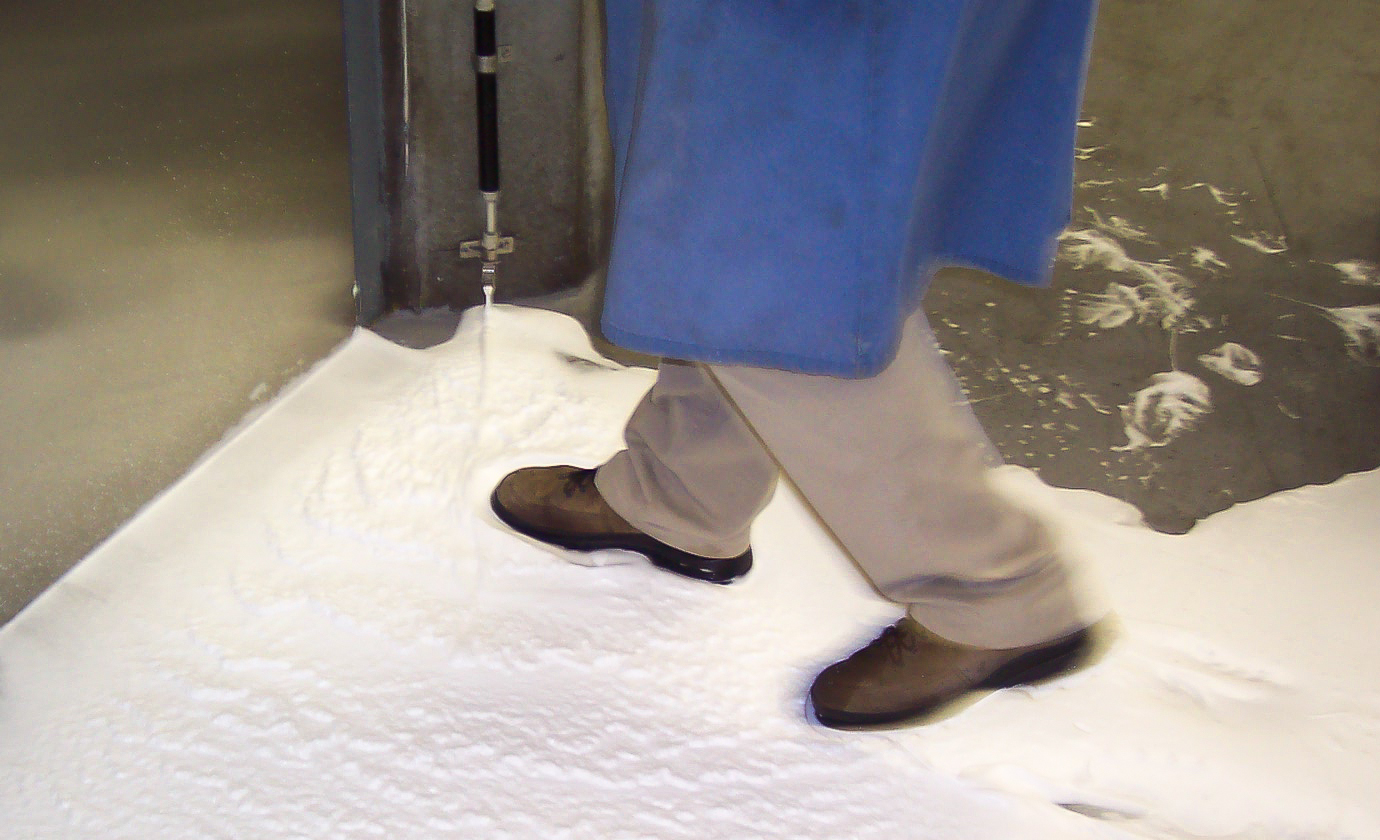

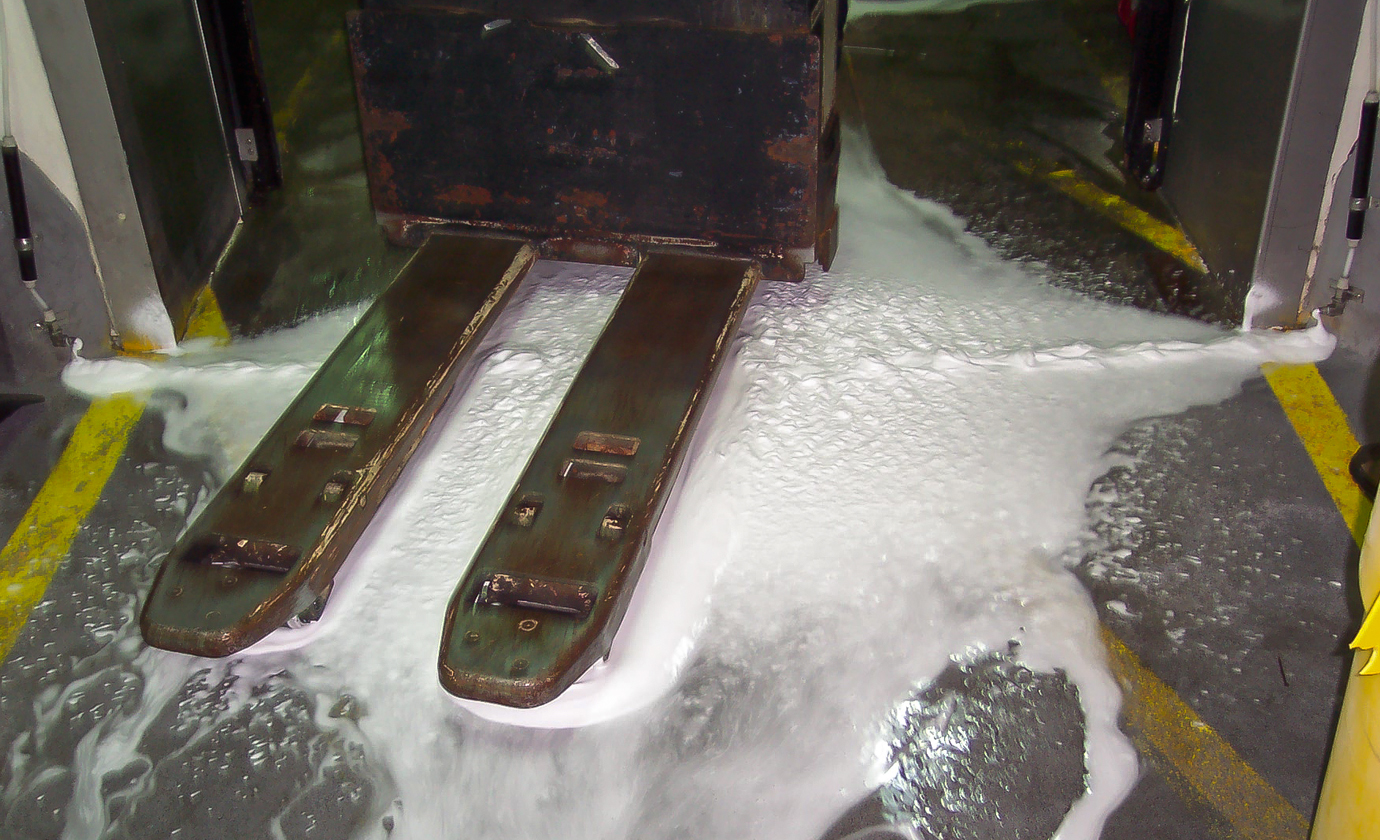

Wall mounted, air and electricity powered, single-line pre-mix foam unit for doorways. Supports up to two nozzle assemblies with a total of 25ft total distance with repeat cycle timers.

HOW TO BUY

features

  • draws from pre-mixed solution
  • powered by compressed air and electricity
  • repeat cycle timer
  • quick-change pump
  • supports up to 2 single-line nozzle assemblies
  • up to 25 ft. (7.6 m) total distance between control box and nozzle(s)

Datasheet

Single-Line Pre-Mix Doorway Foam Unit

Operation Manual

Single-Line Pre-Mix Doorway Foam Unit

power type

compressed air, electricity

chemical pickup type

draws from pre-mixed solution

number of products unit can draw from

one product

suction line length/diameter

8 ft. (2.4 m) hose with 3/8 in. (9.5 mm) inside diameter

flow rate*

2 gal/min (7.6 l/min)

pump seals

Santoprene, Viton, or Kalrez

timer operation type

repeat cycle

coverage area

one nozzle: up to 9×4 ft. (2.7×1.5 m);
two nozzles: up to 5×3 ft. (2.4×1.2 m) at each nozzle

nozzle type

single-line nozzle assembly (GK6T)

number of nozzles

one control box can support up to two nozzle assemblies

distance from nozzles to control box

the combined distance between the control box and the nozzle(s) must equal 25 ft. (7.6 m) or less

tubing/fittings sizes

designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)

*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

compressed air requirements

40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)

liquid temperature range

40-100˚F (4.4-37˚C)

electrical requirements

120 VAC at 60 Hz, 2 amps (GFCI protected outlet)

operating voltage

120 VAC

chemical compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

options
PUMP SEAL MATERIAL
DS1 Santoprene (standard)
Viton (V)
Kalrez (K)



Add option codes to item number as shown. For standard options, no option code is needed. Examples:

  • DS1 (standard unit with Santoprene pump seals and one nozzle)
  • DS1V (unit with Viton pump seals and one nozzle)

note: additional nozzle must be ordered separately (GK6T)

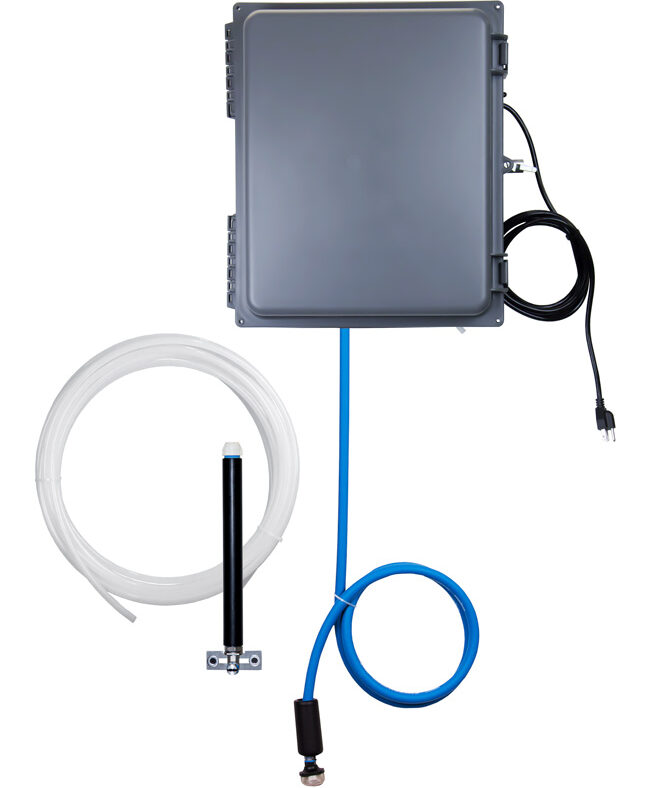

  • complete foam unit
  • single-line foam nozzle with spray tip
  • mounting hardware for control box and nozzle
  • clear tubing (10 ft (3 m) of 1/2 in. (12.7 mm) outside diameter tubing for nozzle)
  • user manual
  • note: additional nozzle must be ordered separately (GK6T)

Accessories

Support Videos

How to set the timer (TR120DS-A) for doorway units

FI-WC-2P, SP-WC, FISP-WC, FI-WC, FI-WC-11AP, FI-WC-11AP2

How to change a needle valve (NV14Y) for doorway units

DS4-2P, DS4, DS3

How to replace an air regulator (R25) for doorway units

DS3, DS1, DS4, DS4-2P, DS5

How to change the timer (TR120DS-A) for doorway units

DS3, DS1, GK5T, DS4, DS4-2P

How to change a pump - with quick-change pump bracket

How to adjust the wet/dry foam needle valve

Cómo ajustar la válvula de la aguja de la espuma húmeda o seca

How to replace a check valve

Timer Replacement (TR120DS-A)

DS3, DS4, DS4-2P, DS5, DS1, GK5T, GK2T

How to change an air solenoid valve (ACV1) for doorway units

DS1, DS4, DS4-2P, DS3, DS5

How to add air/water separator to a doorway unit

DS4-2P, DS4, DS3, DS5, DS1

FAQs

Which pump seal material should I choose?

Pump Seal Material Compatibility

Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.

  • Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
  • Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
  • Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
  • If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
