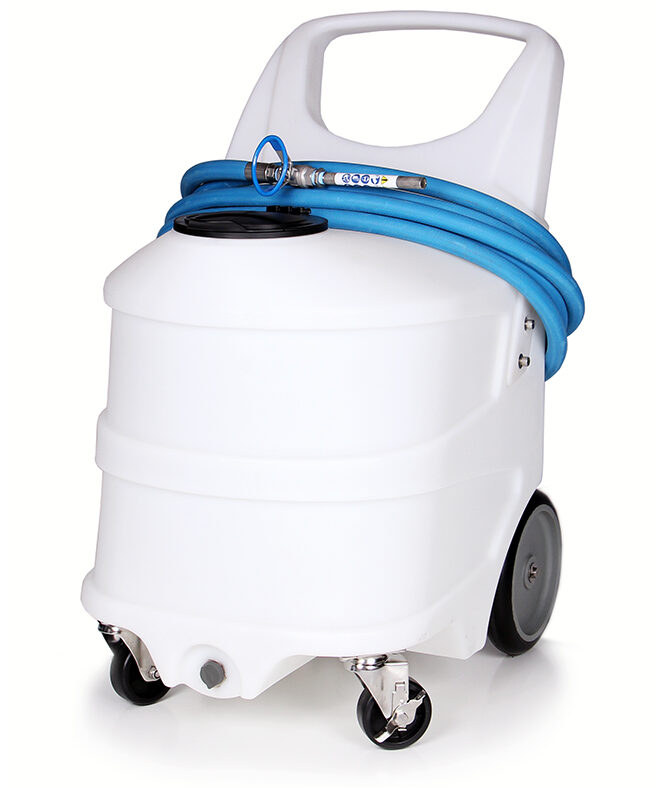

30 Gallon Foam Unit
#FI-30N30 gallon air-powered, portable, pre-mix foam unit. Configurable with Viton, Kalrez, or Santoprene seals and color options for hose and lid.
- QUICK LINKS:
- Get A Quote
Features
- draws from pre-mixed solution
- powered by compressed air
- no assembly required
- hinged back plate provides tool-free access to components
- quick-change pump
- natural color tank for easy visibility of product levels
- hinged lid
- color coding options:
- lid – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
- discharge hose – 4 colors (BL, GN, YL, RD)
- front-facing drain
- in-line strainer to protect pump from debris
- integrated hose hangers

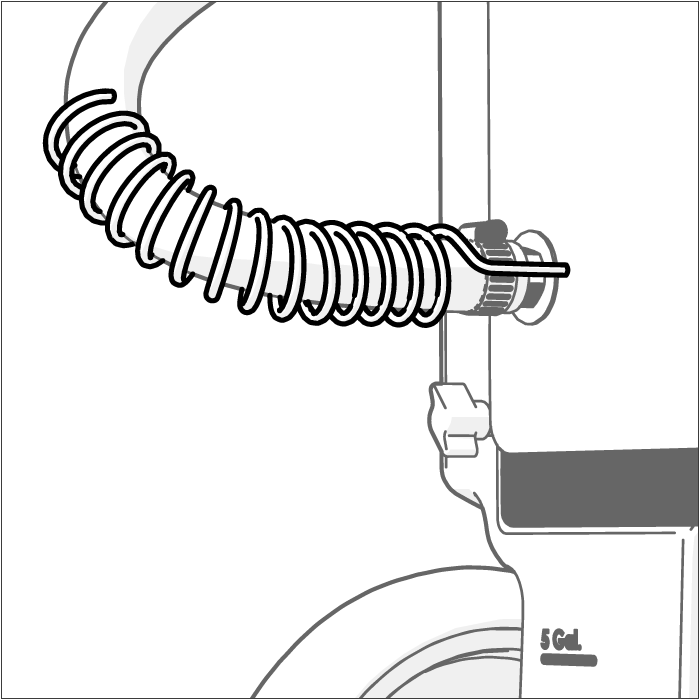

- anti-kink hose protection
Datasheet
30 Gallon Foam Unit
Operation Manual
30 Gallon Foam Unit - Operation Manual
Questions?
- power type
compressed air
- chemical pickup type
draws from pre-mixed solution
- number of products unit can draw from
one product
- suction line length/diameter
3/8 in. (9.5 mm) inside diameter
- capacity
30 gallons (113.6 liters)
- discharge hose length/diameter
30 ft. (9 m) hose, with 3/4 in. (19 mm) inside diameter
- discharge wand/tip type
7 in. (17.8 cm) stainless steel wand with zero tip and ball valve
- output distance
25-30 ft. (7.6-9.1 m)
- output volume
20-45 gal/min (75.7-170.3 l/min) of foam
- flow rate*
2-2.5 gal/min (7.6-9.5 l/min)
- pump seals
Santoprene, Viton, or Kalrez
- wheel type
two 10 inch (25.4 cm) non-marking wheels, two 5 inch (12.7 cm) casters, one with lock
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- compressed air
40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)
- liquid temperature range
40-100˚F (4.4-37.8˚C)
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- complete foam unit with discharge hose and wand
- user manual
Accessories
Support Videos
How to add air/water separator (WS-20CFM-A) for portable family units
FI-10N, FI-5N, FI-20N, FI-25N, FI-30N, FI-50N, FI-10N-SM, FI-20N-SM, FI-25N-SM, FI-30N-SM, FI-50N-SM, FI-5N-SM, SP-10N, SP-20N, SP-25N, SP-30N, SP-5N, SP-50N, GI-10N, GI-20N, GI-25N, GI-30N, GI-5N, FG-10N-2, FG-10N-3-TM
Changing Cap and/or Flange
FG-10N-2-TM, FG-10N-3-TM, FI-20N, GI-10N, SP-10N
How to change the air regulator (R25) for portable family units
FI-10N, FI-20N, FI-25N, FI-30N, FI-5N, FI-50N
How to change a pump - with quick-change pump bracket
How to adjust the wet/dry foam needle valve
Cómo ajustar la válvula de la aguja de la espuma húmeda o seca
How to replace a check valve
How to replace a hose or wand
Changing the backplate assembly for portable family units
FI-5N, FI-10N, FI-20N, FI-25N, FI-30N, FI-50N
Stainless steel mesh replacement (SST12HB38)
FI-5N, FI-10N, FI-20N, FI-25N, FI-30N, FI-50N
FAQs
Which pump seal material should I choose?
Pump Seal Material Compatibility
Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.
- Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
- Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
- Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
- If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
