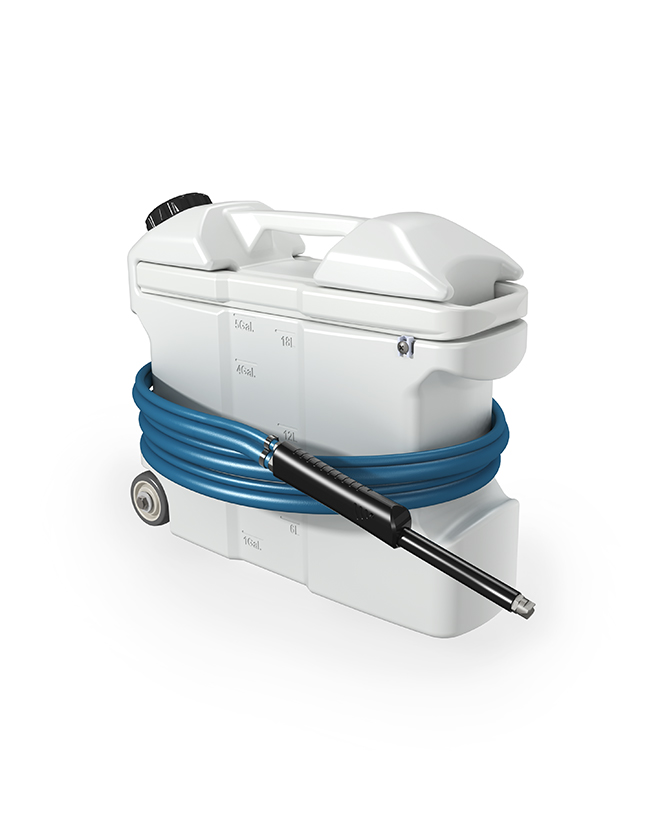

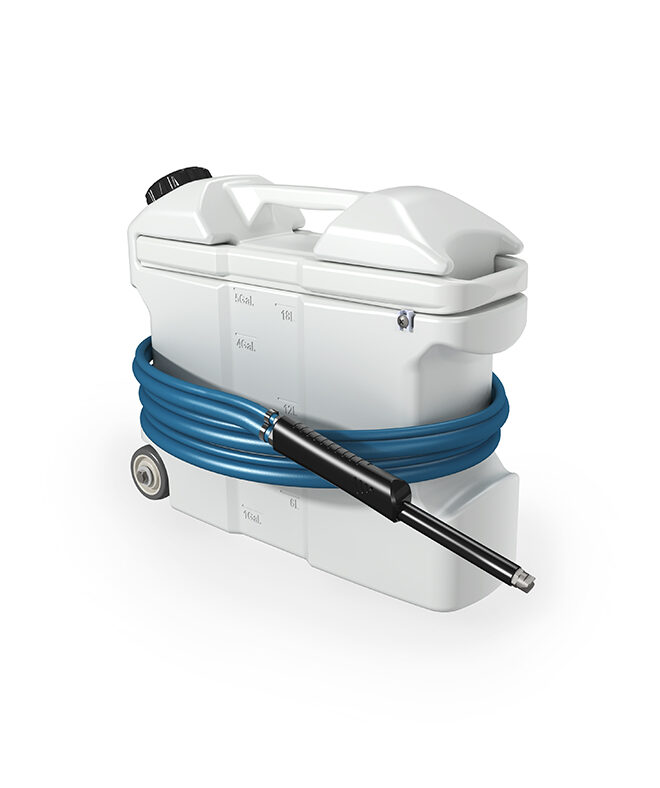

5 Gallon Smart Foam Unit
#FI-5N-SM5 gallon air-powered, portable, pre-mix foam unit with a smart foam wand. Configurable with Viton, Kalrez, or Santoprene seals and cap color options.
- QUICK LINKS:
- Get A Quote
features
- equipped with Smart Technology
- safer to store and maintain
- protects user and surroundings from chemical exposure in the event of a fall or accident
- gives you more control and flexibility
- easy ON/OFF operation
- handle and wand are tough but lightweight, with fan tip and built-in zero tip
- draws from pre-mixed solution
- powered by compressed air
- hinged back plate provides tool-free access to components
- quick-change pump
- natural color tank for easy visibility of product levels
- integrated hose wraps
- in-line strainer to protect pump from debris
- anti-kink hose protection
- pull out handle for portability
- includes smart handle extension attachment (item number: SM-EA) – helps users foam the underside of equipment and other hard-to-reach areas
- color coding options:
- cap – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
Datasheet
5 Gallon Smart Foam Unit
Operation Manual
5 Gallon Smart Foam Unit - Operation Manual
Questions?
- power type
compressed air
- chemical pickup type
draws from pre-mixed solution
- number of products unit can draw from
one product
- capacity
5 gallons (18.9 liters)
- discharge hose length/diameter
20 ft. (6.1 m) bonded hose, with 5/8 in. (15.9 mm) and 1/4 in. (6.4 mm) inside diameters
- discharge wand/tip type
ultra high molecular weight (UHMW) polyethylene handle and wand, with 65˚ fan tip and built-in zero tip
- output distance
8-12 ft. (2.4-3.7 m)
- output volume
WITH ZERO TIP: 20-32 gal/min (75-121 l/min) of foam
WITH FAN TIP: 20-32 gal/min (75-121 l/min) of foam
- flow rate*
2 gal/min (7.6 l/min)
- pump seals
Santoprene, Viton, or Kalrez
- wheel type
two 4 inch (10.2 cm) non-marking wheels
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- compressed air requirements
40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)
- liquid temperature range
40-100˚F (4.4-37.8˚C)
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- complete unit with discharge hose and wand
- smart handle extension attachment (item number: SM-EA) - helps users foam the underside of equipment and other hard-to-reach areas.
- user manual
Accessories
Support Videos
How to change a pump - with quick-change pump bracket
How to adjust the wet/dry foam needle valve
Cómo ajustar la válvula de la aguja de la espuma húmeda o seca
How to replace a check valve
FAQs
Which pump seal material should I choose?
Pump Seal Material Compatibility
Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.
- Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
- Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
- Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
- If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
