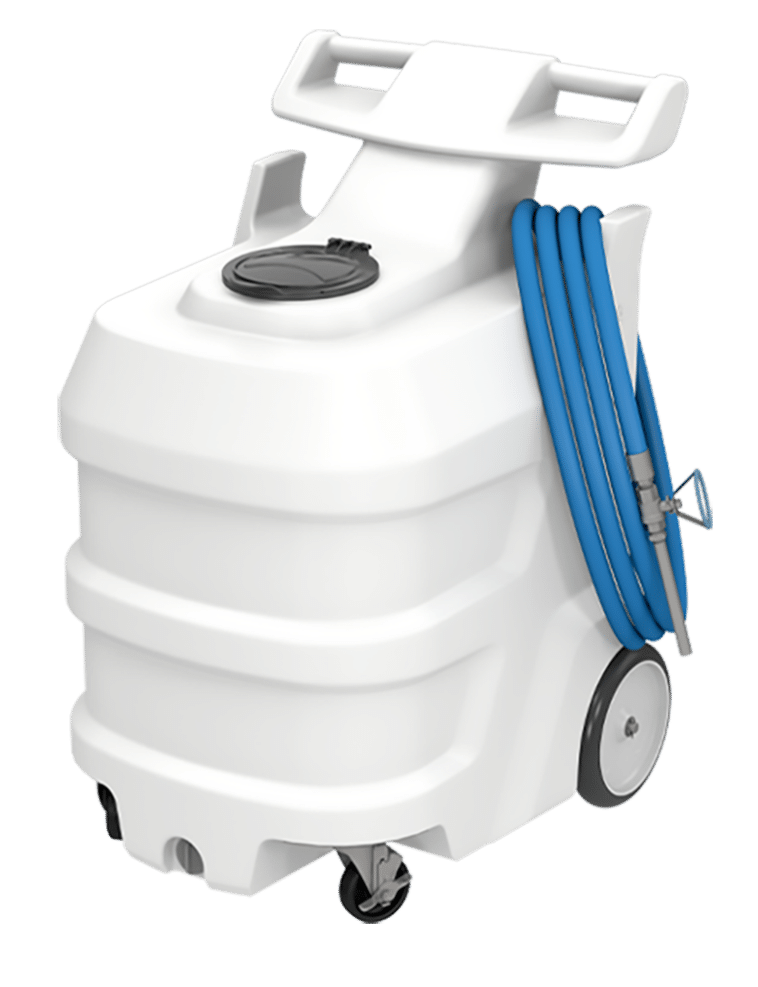

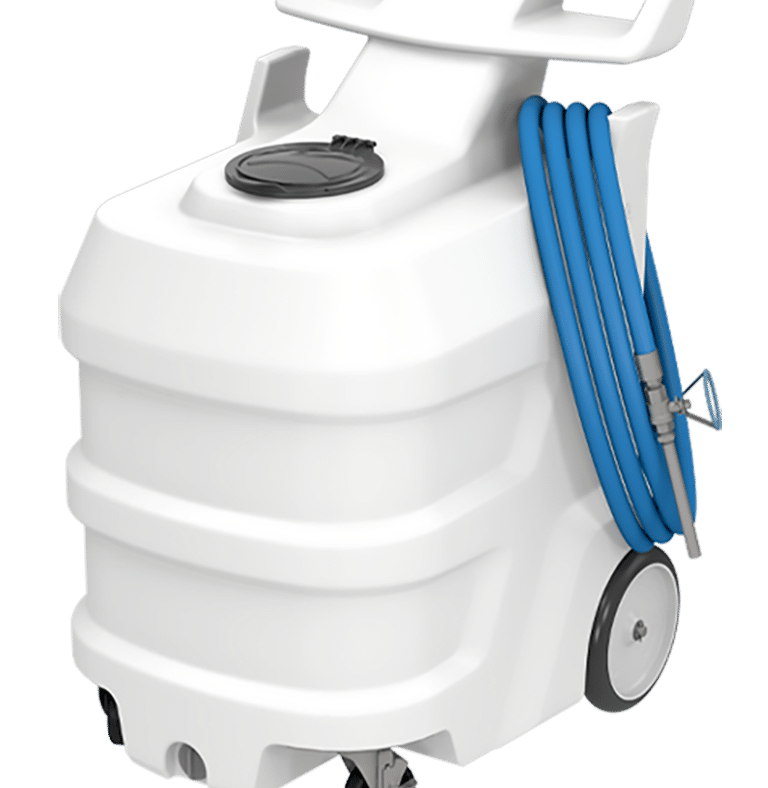

50 Gallon Foam Unit

#FI-50N

50 gallon air-powered, portable, pre-mix foam unit. Configurable with Viton, Kalrez, or Santoprene seals and color options for hose and lid.

HOW TO BUY

features

  • draws from pre-mixed solution
  • powered by compressed air
  • hinged back plate provides tool-free access to components
  • quick-change pump
  • natural color tank for easy visibility of product levels
  • hinged lid

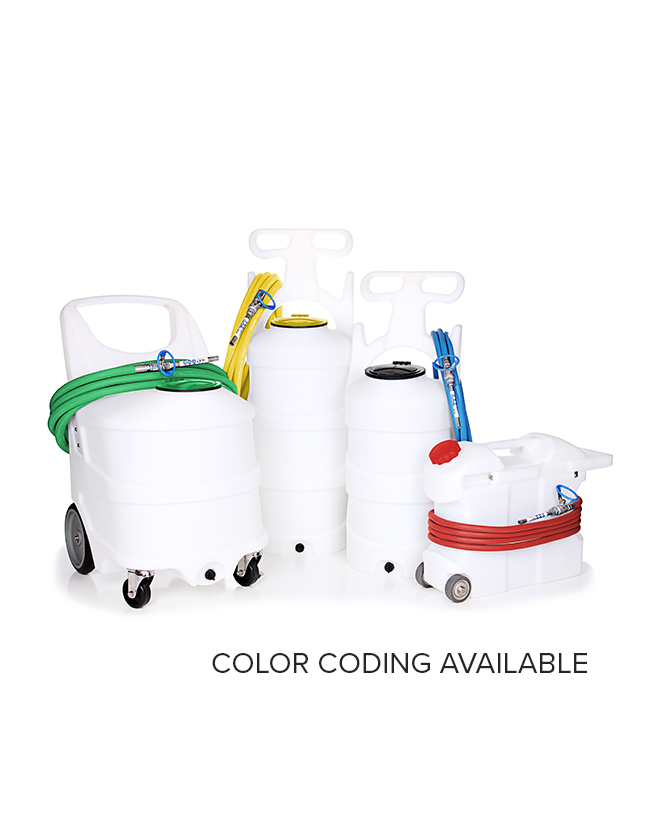

  • color coding options:
    • lid – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
    • discharge hose – 4 colors (BL, GN, YL, RD)
  • integrated hose hangers
  • in-line strainer to protect pump from debris

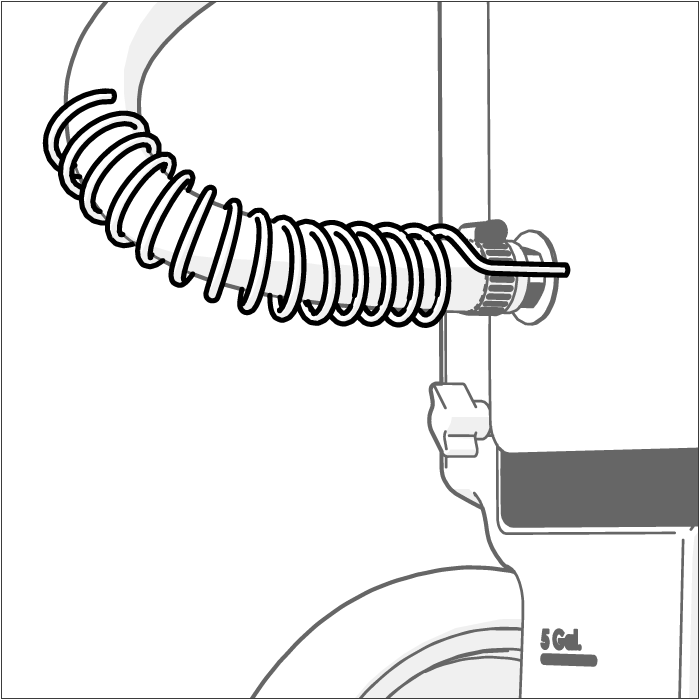

  • anti-kink hose protection
  • front-facing drain

Datasheet

50 Gallon Foam Unit

Operation Manual

50 Gallon Foam Unit - Operation Manual

power type

compressed air

chemical pickup type

draws from pre-mixed solution

number of products unit can draw from (and whether it draws simultaneously or one at a time)

one product

suction line length/diameter

3/8 in. (9.5 mm) inside diameter

capacity

50 gallons (189.3 liters)

discharge hose length/diameter

50 ft. (15.2 m) hose, with 3/4 in. (19 mm) inside diameter

discharge wand/tip type

7 in. (17.8 cm) stainless steel wand with zero tip and ball valve

output distance

25-30 ft. (7.6-9.1 m)

output volume

20-45 gal/min (75.7-170.3 l/min) of foam

flow rate*

2-2.5 gal/min (7.6-9.5 l/min)

pump seals

Santoprene, Viton, or Kalrez

wheel type

two 10 inch (25.4 cm) non-marking wheels, two 5 inch (12.7 cm) casters, one with lock

*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

compressed air

40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)

liquid temperature range

40-100˚F (4.4-37.8˚C)

chemical compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

PUMP SEAL OPTIONS
FI-50N Santoprene (standard)
Viton (V)
Kalrez (K)



Add option codes to item number as shown. For standard options, no option code is needed. Examples:

  • FI-50N (standard unit with Santoprene pump seals)
  • FI-50NV (unit with Viton pump seals)

other available options:

  • fan tip
  • color coding – lid +/or discharge hose
  • water separator
  • air hose
  • complete foam unit with discharge hose and wand
  • user manual

Accessories

Support Videos

How to add air/water separator (WS-20CFM-A) for portable family units

FI-10N, FI-5N, FI-20N, FI-25N, FI-30N, FI-50N, FI-10N-SM, FI-20N-SM, FI-25N-SM, FI-30N-SM, FI-50N-SM, FI-5N-SM, SP-10N, SP-20N, SP-25N, SP-30N, SP-5N, SP-50N, GI-10N, GI-20N, GI-25N, GI-30N, GI-5N, FG-10N-2, FG-10N-3-TM

Changing Cap and/or Flange

FG-10N-2-TM, FG-10N-3-TM, FI-20N, GI-10N, SP-10N

How to change the air regulator (R25) for portable family units

FI-10N, FI-20N, FI-25N, FI-30N, FI-5N, FI-50N

How to change a pump - with quick-change pump bracket

How to adjust the wet/dry foam needle valve

Cómo ajustar la válvula de la aguja de la espuma húmeda o seca

How to replace a check valve

How to replace a hose or wand

Changing the backplate assembly for portable family units

FI-5N, FI-10N, FI-20N, FI-25N, FI-30N, FI-50N

Stainless steel mesh replacement (SST12HB38)

FI-5N, FI-10N, FI-20N, FI-25N, FI-30N, FI-50N

FAQs

Which pump seal material should I choose?

Pump Seal Material Compatibility

Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.

  • Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
  • Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
  • Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
  • If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
