Single-Line Concentrate Doorway Foam Unit
#DS3Wall mounted, air and electricity powered, single-line concentrate foam unit for doorways. Supports up to two nozzle assemblies with a total of 25ft total distance with repeat cycle timers.
- QUICK LINKS:
- Get A Quote
features
- draws from concentrated product
- dilutes product at ratios of 38:1 to 183:1 (water:chemical)
- repeat cycle timer
- quick-change pump
- supports up to 2 nozzle assemblies
- up to 25 ft (7.6 m) total distance between control box and nozzle(s)

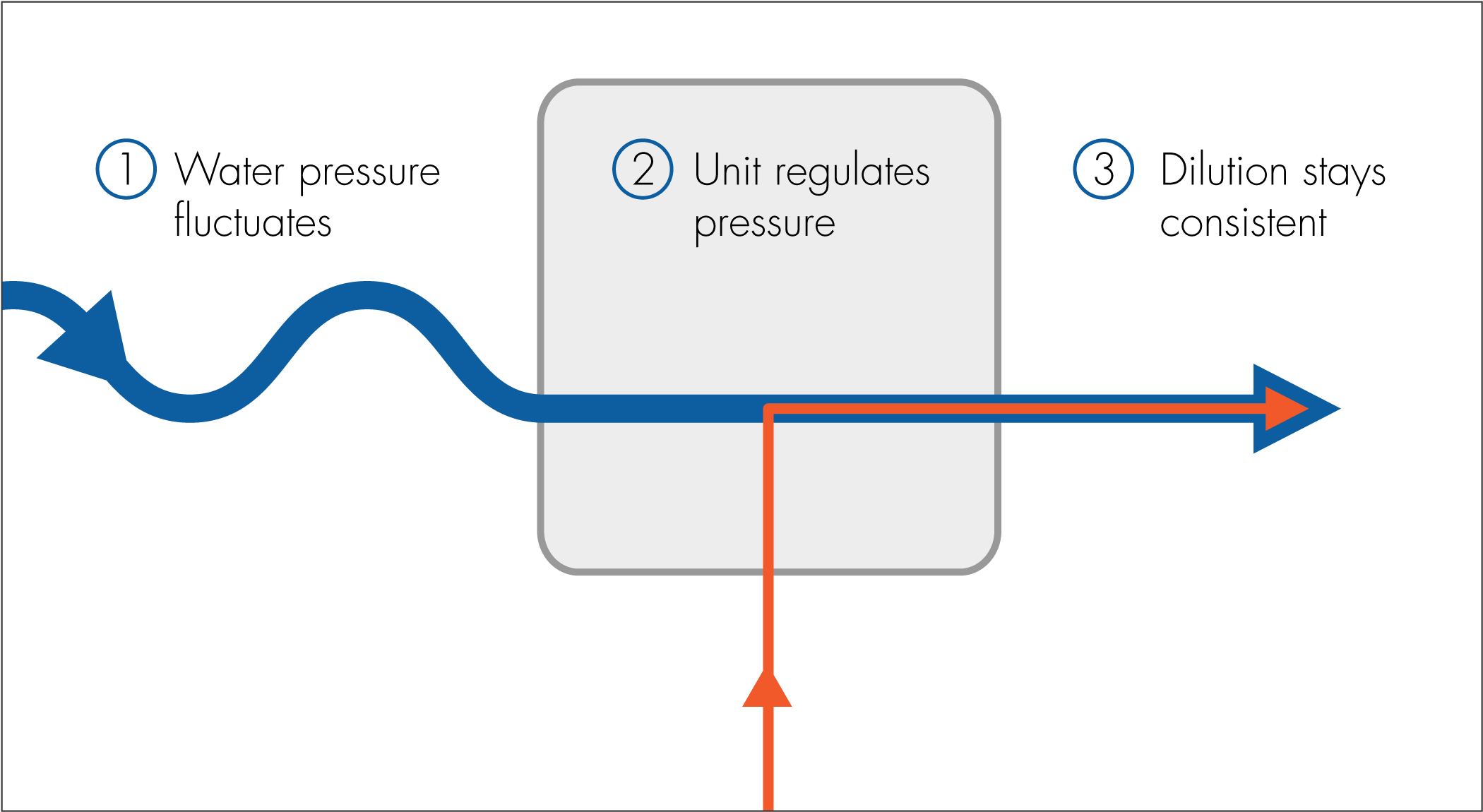

- consistent, reliable dilution rates, regardless of changes in water pressure
Datasheet
Single-Line Concentrate Doorway Foam Unit
Operation Manual
Single-Line Concentrate Doorway Foam Unit
Questions?
- power type
compressed air, electricity
- chemical pickup type
draws from concentrated product
- dilution ratio range (water:chemical)*
38:1 to 183:1
- number of products unit can draw from
one product
- suction line length/diameter
8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
- flow rate*
2 gal/min (7.6 l/min)
- pump seals
Santoprene, Viton, or Kalrez
- timer operation type
repeat cycle
- coverage area
one nozzle: up to 9×4 ft. (2.7×1.5 m);
two nozzles: up to 5×3 ft. (2.4×1.2 m) at each nozzle- fan type
ST8070
- nozzle type
single-line nozzle assembly (GK6T)
- number of nozzles
one control box can support up to two nozzle assemblies
- distance from nozzles to control box
the combined distance between the control box and the nozzle(s) must equal 25 ft. (7.6 m) or less
- tubing/fittings size
designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- compressed air requirements
40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)
- water requirements
10-100 psi (0.7-6.9 bar)
backflow prevention is required – consult local plumbing ordinances for more information.- liquid temperature range
40-100˚F (4.4-37˚C)
- electrical requirements
120 VAC at 60 Hz, 2 amps (GFCI protected outlet)
- operating voltage
120 VAC
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

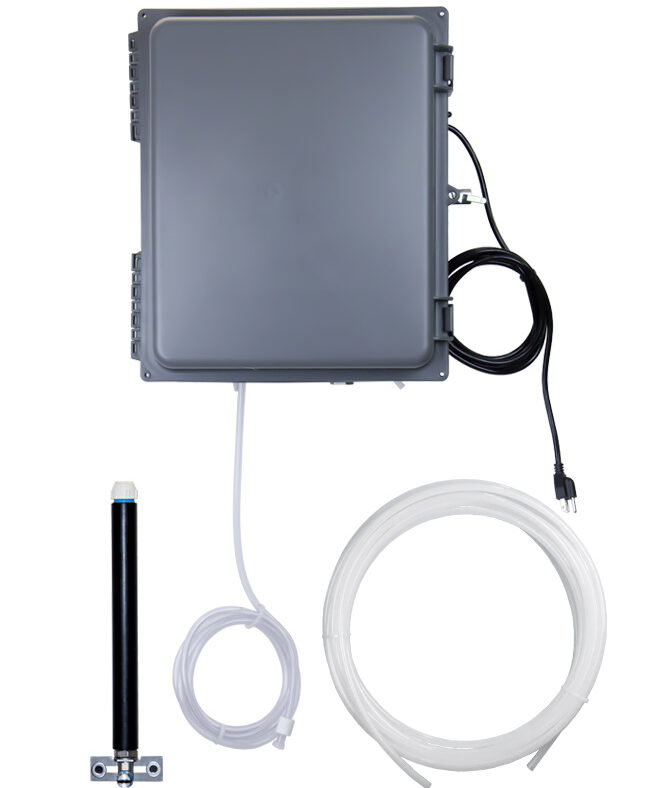

- complete foam unit
- single-line foam nozzle with spray tip
- mounting hardware for control box and nozzle
- clear tubing (10 ft (3 m) of 1/2 in. (12.7 mm) outside diameter tubing for nozzle)
- user Manual
- note: additional nozzle must be ordered separately (GK6T)
