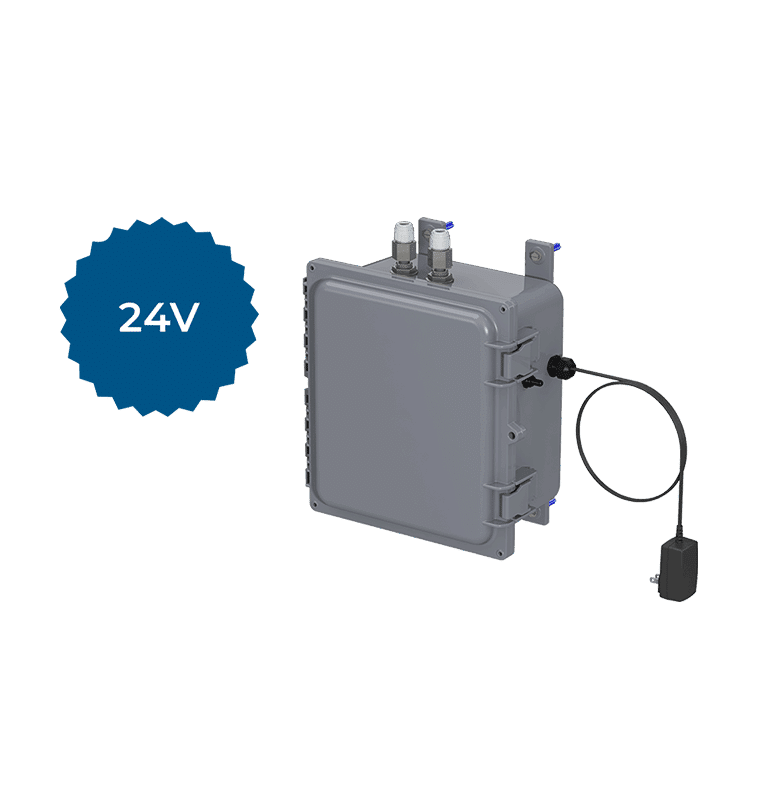

24V Central Doorway Foam Station
#DS-STNWall mounted, pre-mix, foam drop station for doorways powered by compressed air and electricity. Supports up to two nozzle assemblies with a total of 25ft total distance and a repeat cycle digital timer.
- QUICK LINKS:
- Get A Quote
features
- one central pump distributes pre-mixed solution through header system
- pump and doorway nozzles sold separately
- up to 25 ft. (7.6 m) total distance between control box and nozzle
- powered by air and electricity
- repeat cycle digital timer
Datasheet
24V Central Doorway Foam Station - Datasheet
Operation Manual
24V Central Doorway Foam Station - Operation Manual
Questions?
- power type
central system, electricity
- chemical pickup type
supplied with pre-mixed solution from a central system
- number of products unit can draw from
supplied with one product
- flow rate*
2 gal/min (7.6 l/min)
- timer operation type
repeat cycle
- coverage area
with one nozzle: 9×4 ft. (2.7×1.2 m)
with two nozzles: 5×3 ft. (1.5×0.9 m) at each nozzle
- nozzle type
single-line poly nozzle assembly (NZA-DS-SL) (Sold separately)
- number of nozzles
one control box can support up to 2 nozzle assemblies
- distance from nozzles to control box
the combined distance between the control box and the nozzle(s) must equal 25 ft. (7.6 m) or less
- tubing/fitting sizes
designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)
*dilution rates and flow rates given are based on chemical viscosity of water and factory air pressure settings.
- compressed air requirements
40-80 psi (3.5 bar) with 5-10 cfm (141.6-283.2 l/min)
- liquid temperature range
40-100°F (4.4-37.8°C)
- electrical requirements
100-240 VAC, 50-60Hz, 1A (GFCI protected outlet)
- operating voltage
24 VDC
- central system requirements
pre-mixed solution must be supplied by a properly sized header system at 2 gpm and 40-80 psi (2.8-5.5 bar)
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- control box
- user manual
- pump and nozzles sold separately
