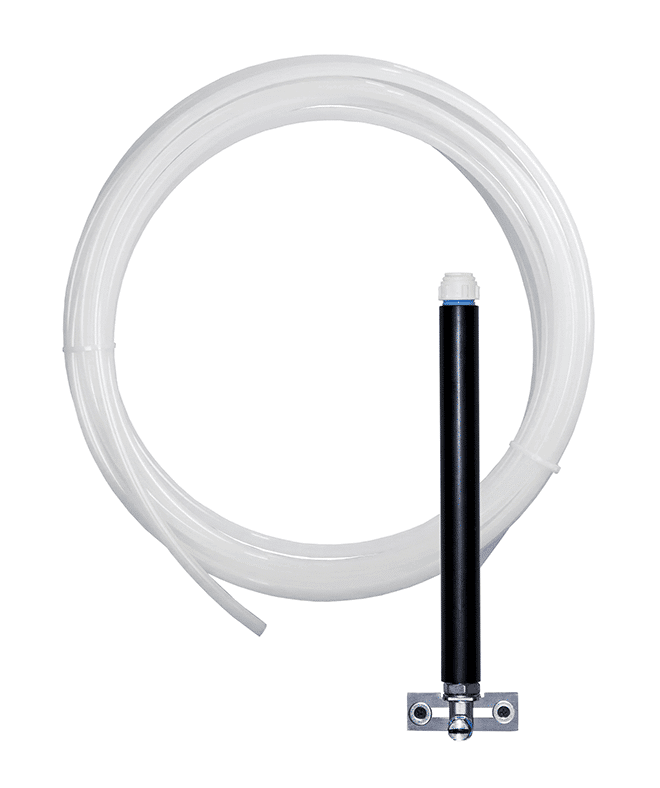

Doorway Foam Nozzle Assembly

#GK6T

Features

  • Polypropylene and stainless steel nozzle assembly that pairs with GK2T, DS1 or DS3
    • Recommend one nozzle only

User Manual

Doorway Foam Nozzle Assembly

POWER TYPE

Compressed air, Electricity

CHEMICAL PICKUP TYPE

Draws from concentrated product

DILUTION RATIO RANGE (WATER:CHEMICAL)*

38:1 to 183:1

NUMBER OF PRODUCTS UNIT CAN DRAW FROM

One product

SUCTION LINE LENGTH/DIAMETER

8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter

FLOW RATE*

2 gal/min (7.6 l/min)

PUMP SEALS

Santoprene, Viton, or Kalrez

TIMER OPERATION TYPE

Repeat cycle

COVERAGE AREA

With one nozzle: 9×4 ft. (2.7×1.5m)

With two nozzles: 5×3 ft. (2.4×1.2m) at each nozzle

FAN TIP

ST8070

NOZZLE TYPE

Single-line nozzle assembly (GK6T)

NUMBER OF NOZZLES

One control box can support up to two nozzle assemblies

DISTANCE FROM NOZZLES TO CONTROL BOX

25 ft. (7.6 m) max.

TUBING/FITTING SIZES

Designed for use with 1/2 in. (12.7mm) outside diameter tubing between control box and nozzle(s)

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

COMPRESSED AIR REQUIREMENTS

40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)

WATER REQUIREMENTS

10-100 psi (0.69-6.9 bar)

Backflow prevention is required – consult local plumbing ordinances for more information.

LIQUID TEMPERATURE RANGE

40-100°F (4.4-37°C)

ELECTRICAL REQUIREMENTS

120 VAC at 60 Hz, 2 amps (GFCI protected outlet)

OPERATING VOLTAGE

120 VAC

CHEMICAL COMPATIBILITY

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

Options
  Number of Tip Assembly Recommended Spray Nozzle
GK6T 1 ST8070

  • Nozzle assembly
  • User Manual
