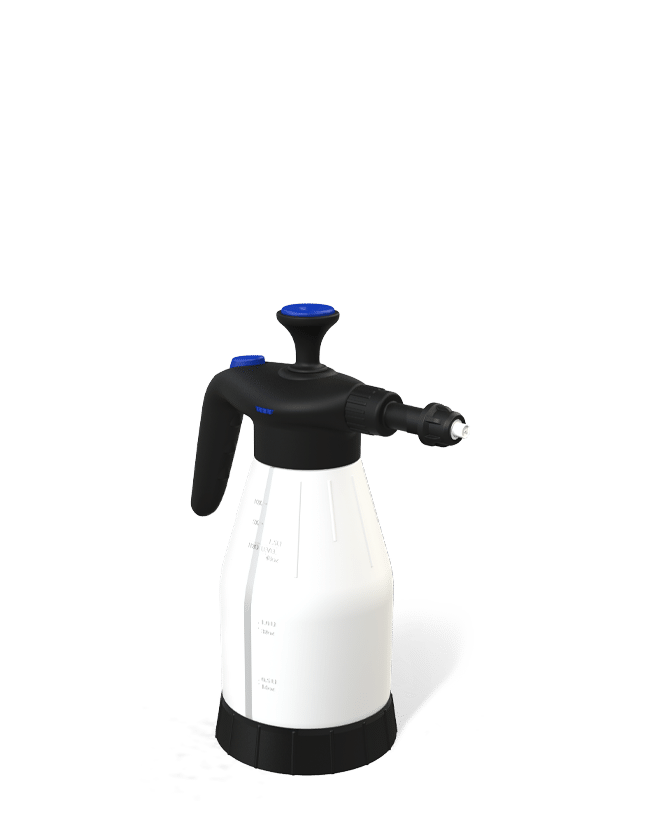

0.4 Gallon Mist Unit

#MU1.5L

Features

  • Hard surface sanitizing/disinfection
  • Wide application pattern
  • Manually operated with direct application
  • Mists at any angle, even upside down
  • Efficient and ergonomic alternative to trigger sprayers
  • Compact unit with manual pump
  • Maximum portability for small jobs and spot cleaning
  • Comfortable grip handle with trigger for quick on/off control
  • Pressure relief valve for safety
  • Viton pump seals for chemical compatibility
  • Polypropylene tank and pump head
  • View stripe for easy visibility of product levels
  • Stability base with gripping notches
  • Color coding options:
    • Tank – 2 colors (BK, WH)

Datasheet

0.4 Gallon Mist Unit - Datasheet

POWER TYPE

Manual

CHEMICAL PICKUP TYPE

Draws from pre-mixed solution

NUMBER OF PRODUCTS UNIT CAN DRAW FROM

One product

CAPACITY

0.4 gallons (1.5 liters)

DISCHARGE WAND/TIP TYPE

Polypropylene trigger handle with button-style hollow cone misting tip

OUTPUT DISTANCE

4-10 inches (10.16-25.4 cm)

OUTPUT VOLUME

2.84 oz/min (84 mL/min)

FLOW RATE*

2.84 oz/min (84 mL/min)

PUMP SEALS

Viton

PRODUCT HEIGHT

12.625 inches (32.0675 cm)

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

LIQUID TEMPERATURE RANGE

40-100°F (4.4-37°C)

CHEMICAL COMPATIBILITY

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

Options
  TANK COLOR
MU1.5L White (standard)
Black (BK)

Add option codes to item number as shown.  For standard options, no option code is needed.  Examples:

  • MU1.5L (standard unit)
  • MU1.5LBK (standard unit with black tank)
  • Complete unit
  • User manual
