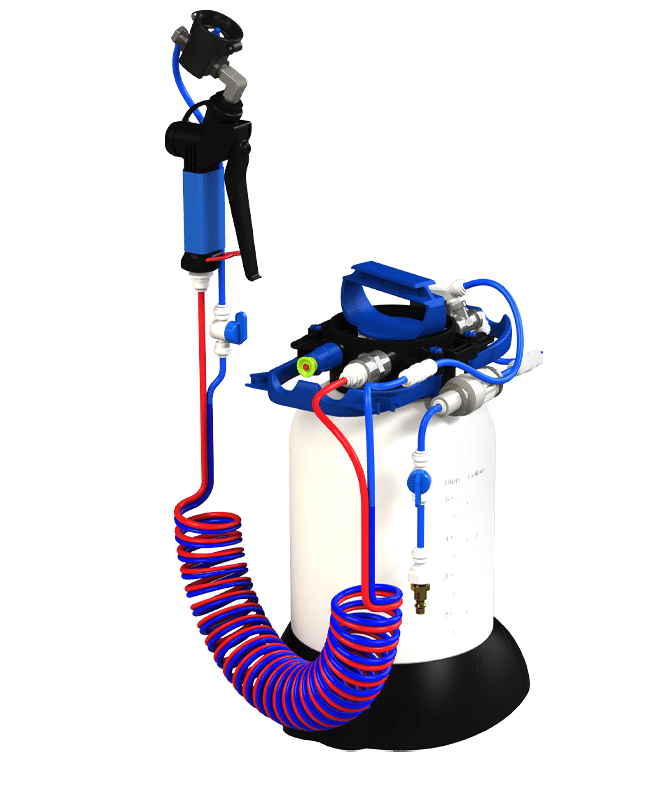

1.3 Gallon Air-Powered Mist Unit

#MU50-PSGN130

1.3 gallon air-powered, pre-mix, handheld mist unit. Comes with a misting wand with 12 ft. of coiled discharge hose.

DATASHEET OPERATION MANUAL

HOW TO BUY

features

handheld misting wand allows for controlled, manual application to critical surfaces
fine spray application allows for product movement into areas not commonly treated by traditional application methods
draws from pre-mixed solution
powered by compressed air – requires air connection to operate (cannot be powered by manual pump or tank pressure)
handheld wand with 12 ft. (3.7 m) coiled discharge hose
see through tank – 1.3 gallon (5 liter) capacity
pressure regulator and pressure relief valve for safety
Viton seals for chemical compatibility
product level fill markings in gallons and liters
extra wide stability base

1.3 gallon air-powered mist unit

Download

2.6 Gallon Air-Powered Mist Unit

Download

power type: compressed air
chemical pickup type: draws from pre-mixed solution
number of products unit can draw from: one product
capacity: 1.3 gallons (5 liters)
discharge line length/diameter: 12 ft. (3.6 m) coiled twin-line tubing 1/4 in. (6.4 mm) outside diameter, red and blue, with 0.16 in. (4.06 mm) inside diameter
discharge wand/tip type: polypropylene trigger handle for liquid output, polypropylene shut-off valve for air, polypropylene fog/mist nozzle with Kynar tip
output distance: 3 ft. to 4 ft. 6 in.
output volume: 8.79 oz/min at 40 psi
flow rate*: 8.79 oz/min at 40 psi
pump seals: Viton
run time from full tank**: approx. 19 minutes
nozzle type: pneumatic mist nozzle
number of nozzles: one

*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

**area covered and run time may vary based on humidity, air flow, and product used.

compressed air requirements: 40 psi (3 bar) with 2.5 cfm (57-142 l/min)
liquid temperature range: 40-100°F (4.4-37°C)
chemical compatibility: Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
