10 Gallon Fog Unit with 3 Nozzles and Telescoping Mast

#FG-10N-3

10 gallon air-powered, portable, pre-mix fog unit with three nozzles and adjustable telescoping mast. Configurable with Viton, Kalrez, or Santoprene seals and lid color options.

HOW TO BUY

features

  • draws from pre-mixed solution
  • powered by compressed air
  • 3 nozzles mounted on a telescoping mast
    • droplet size: 15 microns at 50 psi (3.4 bar)
    • polypropylene and kynar nozzle construction
  • a full tank of solution will supply the unit for approximately 1 hour
  • optional timer with delay functionality – start unit and leave the room before it begins fogging / misting
  • hinged back plate provides tool-free access to components

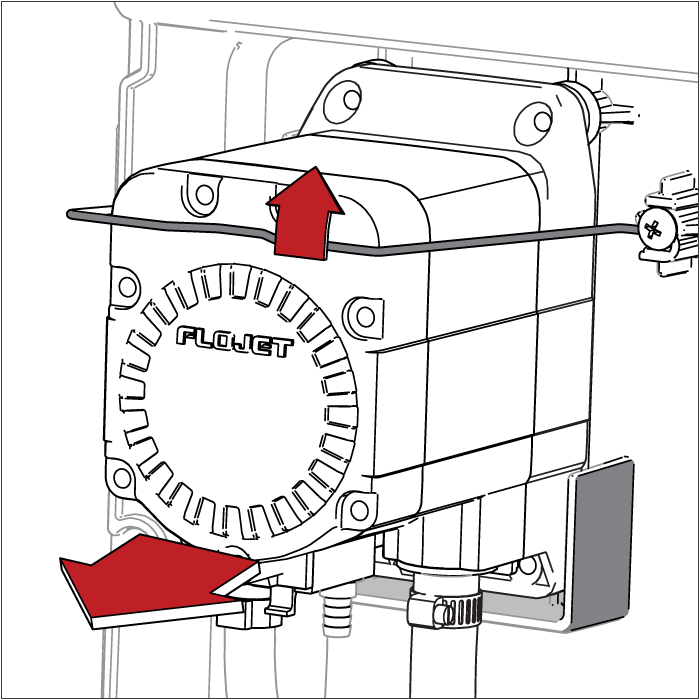

  • quick-change pump
  • natural color tank for easy visibility of product levels
  • hinged lid

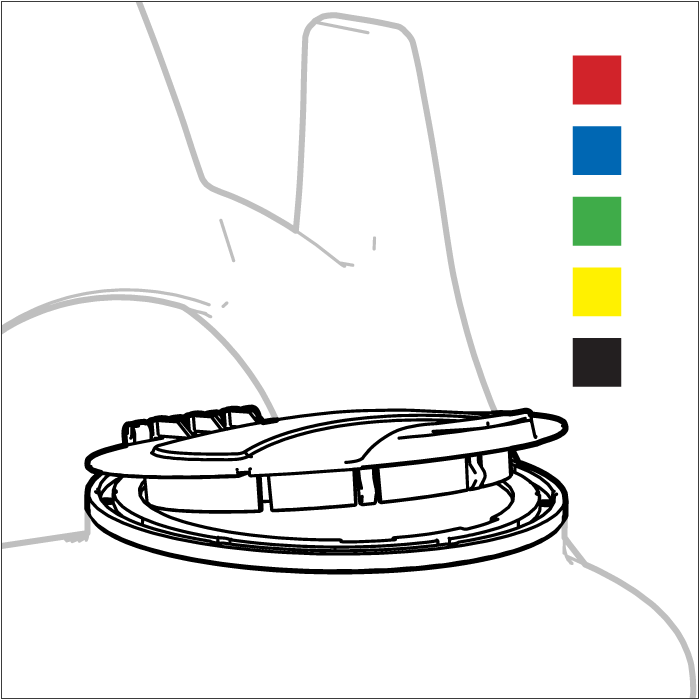

  • color coding options:
    • lid – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
  • front-facing drain
  • in-line strainer to protect pump from debris

Datasheet

10 Gallon Fog Unit with 3 Nozzles and Telescoping Mast

Operation Manual

10 Gallon Fog Unit with 3 Nozzles and Telescoping Mast

power type

compressed air

chemical pickup type

draws from pre-mixed solution

number of products unit can draw from

one product

suction line length/diameter

3/8 in. (9.5 mm) inside diameter

capacity

10 gallons (37.9 liters)

flow rate*

3.7 gal/hour (14 l/hour) at each nozzle

pump seals

Santoprene, Viton, or Kalrez

droplet size

15 microns at 50 psi (3.4 bar)

coverage area**

1 liter of solution will cover approximately 1000 cubic feet (28.3 cubic meters), up to system max of 47,320 cubic feet (1340 cubic meters)

height

41 inches (104 cm)

run time from full tank**

approx. 1 hour

number of nozzles

3 nozzles

fog mast height range

3.5-8.5 ft. (1.1-2.6 m)

wheel type

two 10 inch (25.4 cm) non-marking wheels

*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

**area covered and run time may vary based on humidity, air flow, and product used.

compressed air

50 psi (3.4 bar) with 9 cfm (254.9 l/min)

liquid temperature range

40-100˚F (4.4-37.8˚C)

chemical compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

options
PUMP SEAL MATERIAL
MU-10N Santroprene (standard) -3
Viton (V)
Kalrez (K)

Add option codes to item number as shown. For standard options, no option code is needed. Examples:

  • FG-10N-3 (standard unit with Santoprene pump seals)
  • FG-10NV-3 (unit with Viton pump seals)

other available options:

  • color coding – lid – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
  • timer with delay functionality
  • complete unit with 3 nozzles on telescoping mast
  • user manual

Accessories

Support Videos

How to add air/water separator (WS-20CFM-A) for portable family units

FI-10N, FI-5N, FI-20N, FI-25N, FI-30N, FI-50N, FI-10N-SM, FI-20N-SM, FI-25N-SM, FI-30N-SM, FI-50N-SM, FI-5N-SM, SP-10N, SP-20N, SP-25N, SP-30N, SP-5N, SP-50N, GI-10N, GI-20N, GI-25N, GI-30N, GI-5N, FG-10N-2, FG-10N-3-TM

Changing Cap and/or Flange

FG-10N-2-TM, FG-10N-3-TM, FI-20N, GI-10N, SP-10N

How to change a pump - with quick-change pump bracket

FAQs

Which pump seal material should I choose?

Pump Seal Material Compatibility

Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.

  • Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
  • Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
  • Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
  • If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
