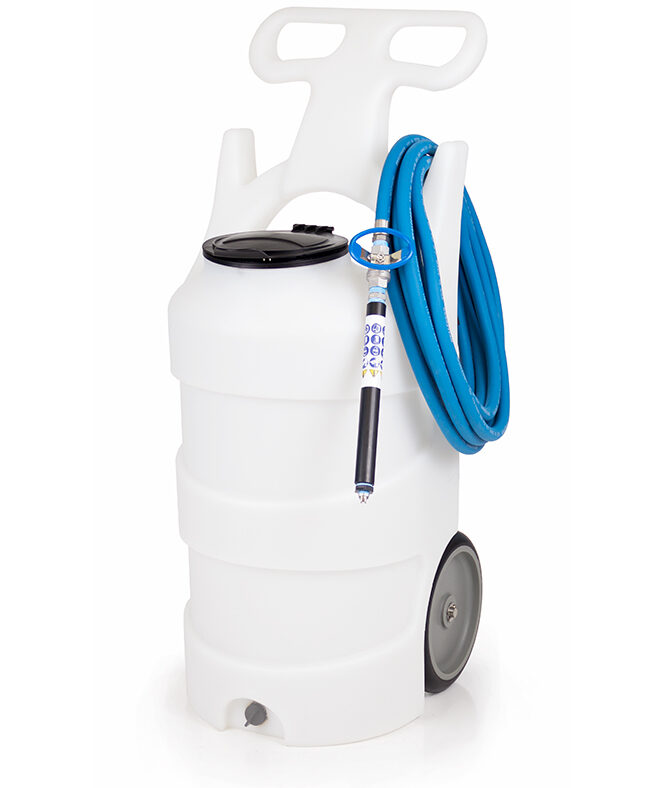

10 Gallon Gel Unit
#GI-10N10 gallon air-powered, portable, pre-mix gel unit. Configurable with Viton, Kalrez, or Santoprene seals and color options for hose and lid.
- QUICK LINKS:
- Get A Quote
features
- draws from pre-mixed solution
- powered by compressed air
- hinged back plate provides tool-free access to components
- quick-change pump
- natural color tank for easy visibility of product levels
- hinged lid
- color coding options:
- lid – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
- discharge hose – 4 colors (BL, GN, YL, RD)
- integrated hose wraps
- in-line strainer to protect pump from debris
- front-facing drain

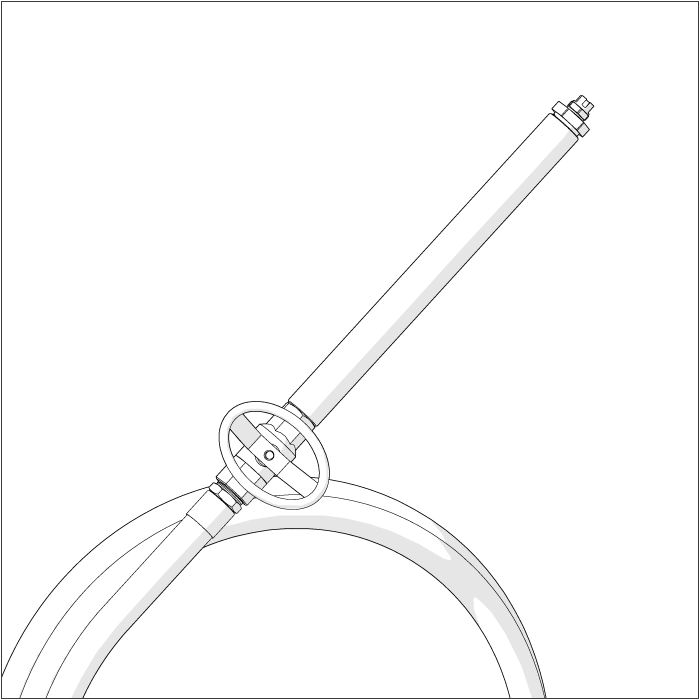

- fan tip wand assembly for increased coverage
- anti-kink hose protection
Datasheet
10 Gallon Gel Unit
Operation Manual
10 Gallon Gel Unit - Operation Manual
Questions?
- power type
compressed air
- chemical pickup type
draws from pre-mixed solution
- number of products unit can draw from
one product
- suction line length/diameter
3/8 in. (9.5 mm) inside diameter
- capacity
10 gallons (37.9 liters)
- discharge hose length/diameter
20 ft. (6.1 m) hose, with 1/2 in. (12.7 mm) inside diameter
- discharge wand/tip type
10 in. (25.4 cm) poly wand with fan tip and ball valve (Spray tips included: ST1510SS and ST4008SS)
- output distance
6-10 ft. (1.8-3 m) (Varies due to viscosity of product)
- output volume
0.5-1 gal/min (1.9-3.8 l/min) (Varies due to viscosity of product and fan tip size)
- flow rate*
2 gal/min (7.6 l/min) (Varies based and spray tip used)
- pump seals
Santoprene, Viton, or Kalrez
- wheel type
two 10 in. (25.4 cm) non-marking wheels
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- compressed air requirements
40-80 psi (2.8-5.5 bar) with 2 cfm (56.6 l/min)
- liquid temperature range
40-100˚F (4.4-37.8˚C)
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- complete unit with discharge hose and wand
- extra spray tips with different flow rates and fan patterns
- user manual
Accessories
Support Videos
How to add air/water separator (WS-20CFM-A) for portable family units
FI-10N, FI-5N, FI-20N, FI-25N, FI-30N, FI-50N, FI-10N-SM, FI-20N-SM, FI-25N-SM, FI-30N-SM, FI-50N-SM, FI-5N-SM, SP-10N, SP-20N, SP-25N, SP-30N, SP-5N, SP-50N, GI-10N, GI-20N, GI-25N, GI-30N, GI-5N, FG-10N-2, FG-10N-3-TM
Changing Cap and/or Flange
FG-10N-2-TM, FG-10N-3-TM, FI-20N, GI-10N, SP-10N
How to change a pump - with quick-change pump bracket
How to replace a hose or wand
FAQs
Which pump seal material should I choose?
Pump Seal Material Compatibility
Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.
- Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
- Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
- Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
- If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
