2.6 Gallon Air-Powered Mist Unit

#MU100-PSGN130

Features

  • Handheld misting wand allows for controlled, manual application to critical surfaces
  • Fine spray application allows for product movement into areas not commonly treated by traditional application methods
  • Draws from pre-mixed solution
  • Powered by compressed air – requires air connection to operate (cannot be powered by manual pump or tank pressure)
  • Handheld wand with 12 ft. (3.7 m) coiled discharge hose
  • See through tank – 2.6 gallon (10 liter) capacity

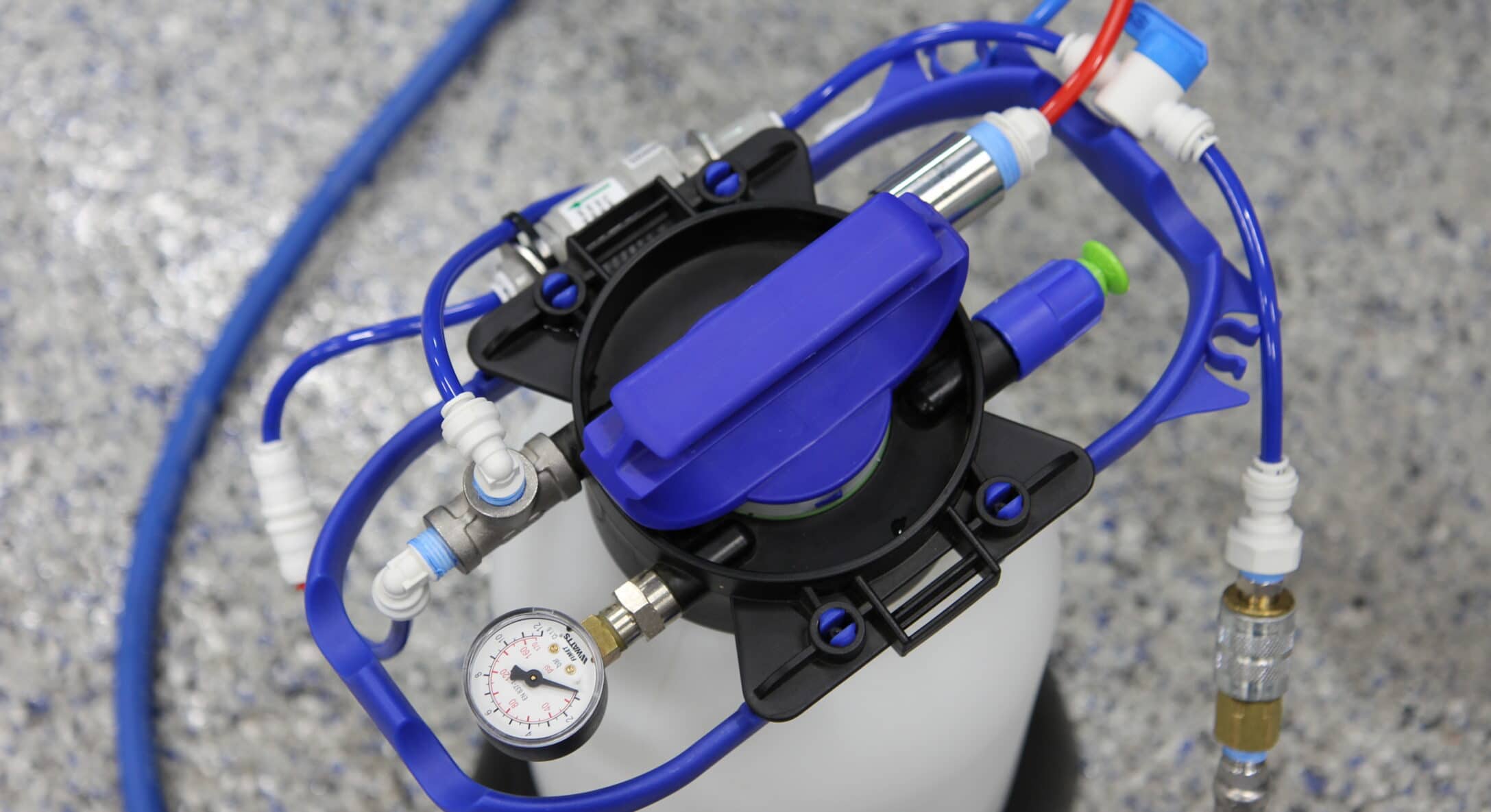

  • Pressure regulator and pressure relief valve for safety
  • Viton seals for chemical compatibility
  • Product level fill markings in gallons and liters
  • Extra wide stability base

Datasheet

2.6 Gallon Air-Powered Mist Unit

User Manual

2.6 Gallon Air-Powered Mist Unit

POWER TYPE

Compressed air

CHEMICAL PICKUP TYPE

Draws from pre-mixed solution

NUMBER OF PRODUCTS UNIT CAN DRAW FROM

One product

CAPACITY

2.6 gallons (10 liters)

DISCHARGE LINE LENGTH/DIAMETER

12 ft. (3.6 m) coiled twin-line tubing 1/4 in. (6.4 mm) outside diameter, red and blue, with 0.16 in. (4.06 mm) inside diameter

DISCHARGE WAND/TIP TYPE

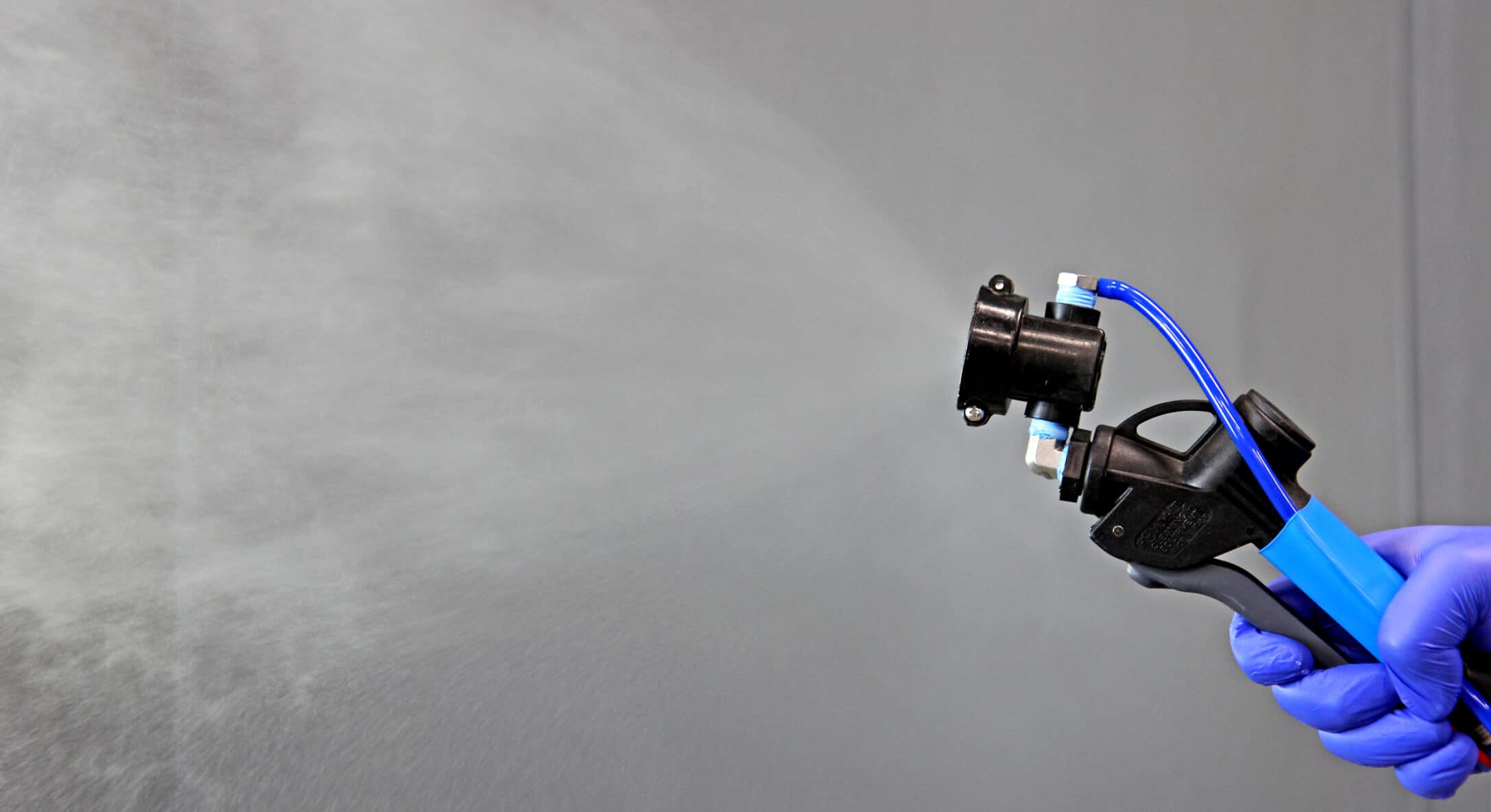

Polypropylene trigger handle for liquid output, polypropylene fog/mist nozzle with Kynar tip

OUTPUT DISTANCE

3 ft. to 4 ft. 6 in.

OUTPUT VOLUME

8.79 oz/min at 40 psi

FLOW RATE*

8.79 oz/min at 40 psi

PUMP SEALS

Viton

RUN TIME FROM FULL TANK**

Approx. 38 minutes

NOZZLE TYPE

Pneumatic mist nozzle

NUMBER OF NOZZLES

One

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

**Area covered and run time may vary based on humidity, air flow, and product used.

COMPRESSED AIR REQUIREMENTS

40 psi (3 bar) with 2-5 cfm (57-142 l/min)

LIQUID TEMPERATURE RANGE

40-100°F (4.4-37°C)

CHEMICAL COMPATIBILITY

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
