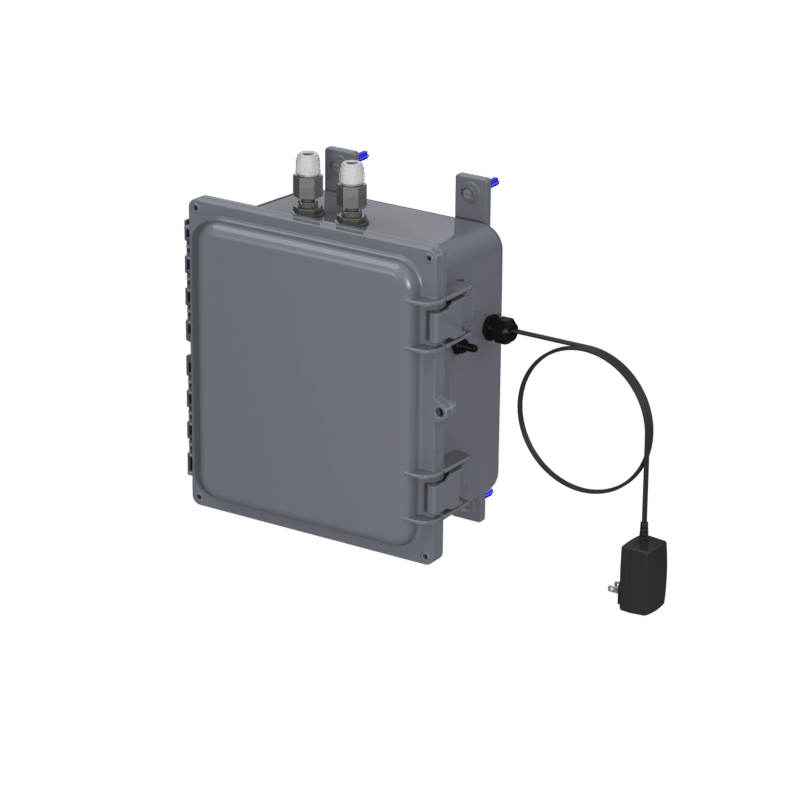

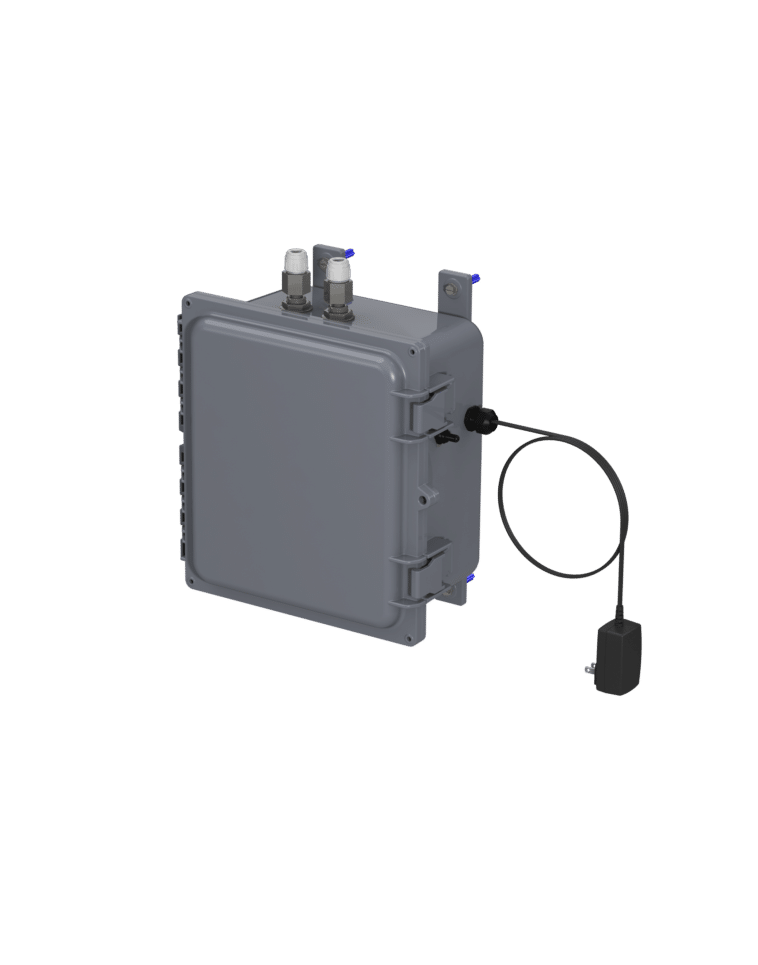

Wall mounted, air and electricity powered, twin-line pre-mix foam unit for doorways. Supports up to three twin line nozzle assemblies with a total of 100ft total distance and a repeat cycle digital timer.
24V Twin Line Central Doorway Foam Station - Datasheet
24V Twin Line Central Doorway Foam Station - Operation Manual
central system, electricity
supplied with pre-mixed solution from a central system
supplied with one product
2 gal/min (7.6 l/min)
repeat cycle

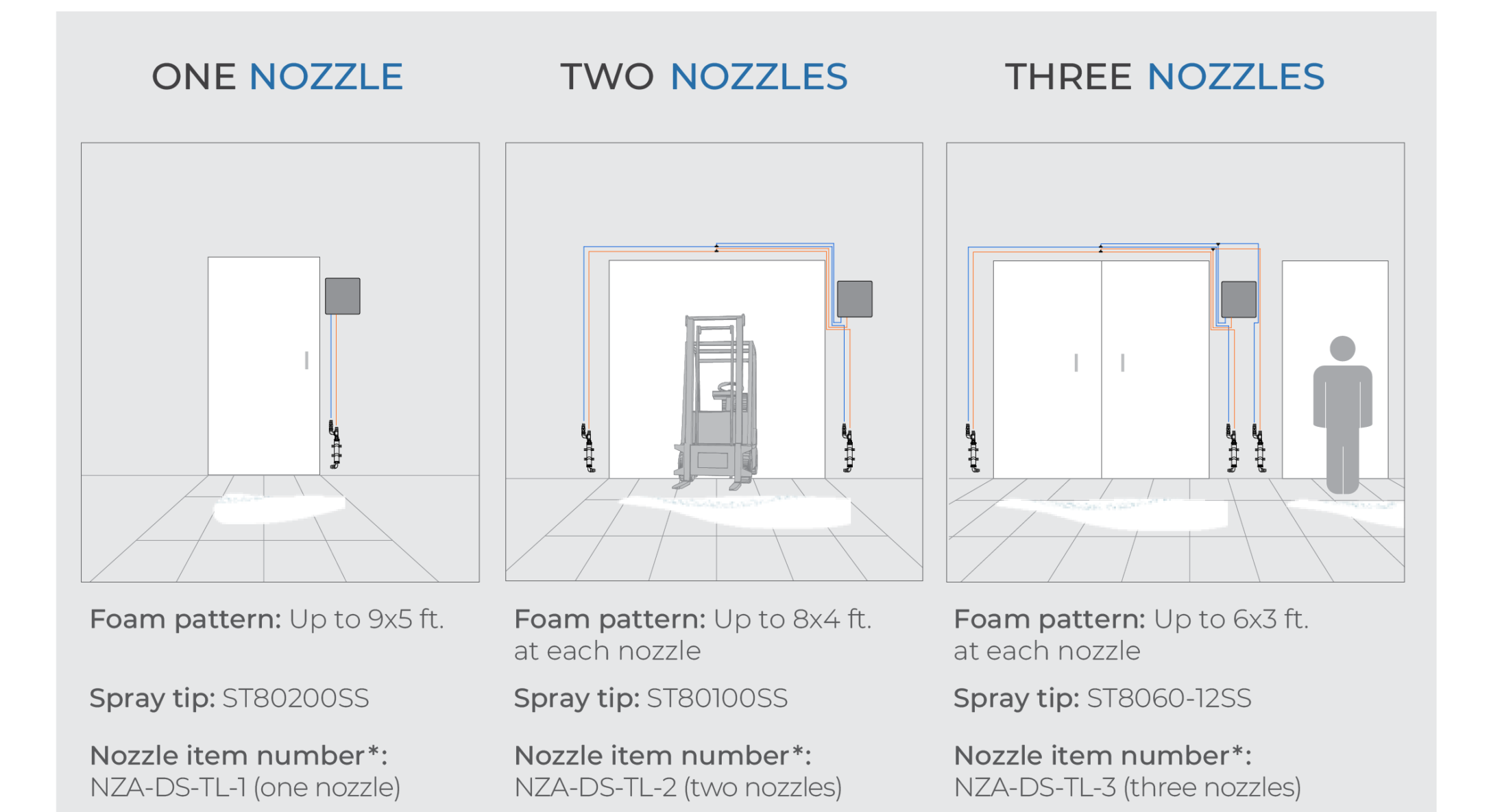

one nozzle: up to 9×5 ft. (2.7×1.5 m)
two nozzles: up to 8×4 ft. (2.4×1.2 m) at each nozzle
three nozzles: up to 6×3 ft. (1.8 x0.9 m) at each nozzle
Twin-line stainless steel nozzle assembly (sold separately)
one control box can support up to three nozzle assemblies
the combined distance between the control box and the nozzle(s) must equal 100 ft. (30.5 m) or less
designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)
*dilution rates and flow rates given are based on chemical viscosity of water and factory air pressure settings.
40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)
40-100°F (4.4-37.8°C)
100-240 VAC, 50-60Hz, 1A (GFCI protected outlet)
24 VDC
pre-mixed solution must be supplied by a properly sized header system at 2 gpm and 40-80 psi (2.8-5.5 bar)
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
