Battery Powered Foam Rinse Sanitize Unit

#FRS-BP-15N

15 gallon battery-powered, pre-mix spray unit with polypropylene spray gun with triple click nozzle for foam, rinse, and sanitize

HOW TO BUY

features

Tool style battery allows for quick charge times, easy swapping, and lighter weight
Premix solution means no finicky on-board dilution or metering tips to calibrate
Simple user interface, no complicated ball valves
Just select the mode, match the nozzle spray tip, and go
Compact 4-wheel design
Common battery system that can be used in both foam units and FRS units
Easily serviceable
Triple click nozzle, one hose and no attachments to lose
Everything you need in one location
- 15 gallons of water
- 5 gallons of foam chemical
- 2.5 gallons of sanitizing chemical

Power type: lithium-ion battery
Battery charge time: approx. 114 minutes
Battery run time: foam – up to 36 minutes of continuous use
rinse – up to 2.5 hours of continuous use
sanitize – up to 3.5 hours of continuous
Chemical pickup type: draws from pre-mixed solution
Number of products unit can draw from: two products,
plus on board water
Capacity: 15 gallons (37.9 liters) of water, 5 gallons of foam
chemical, and 2.5 gallons of sanitizing chemical
Discharge line length/diameter: 12 ft. (3.7 m) hose,
with 3/8 in. (9.5 mm) inside diameter

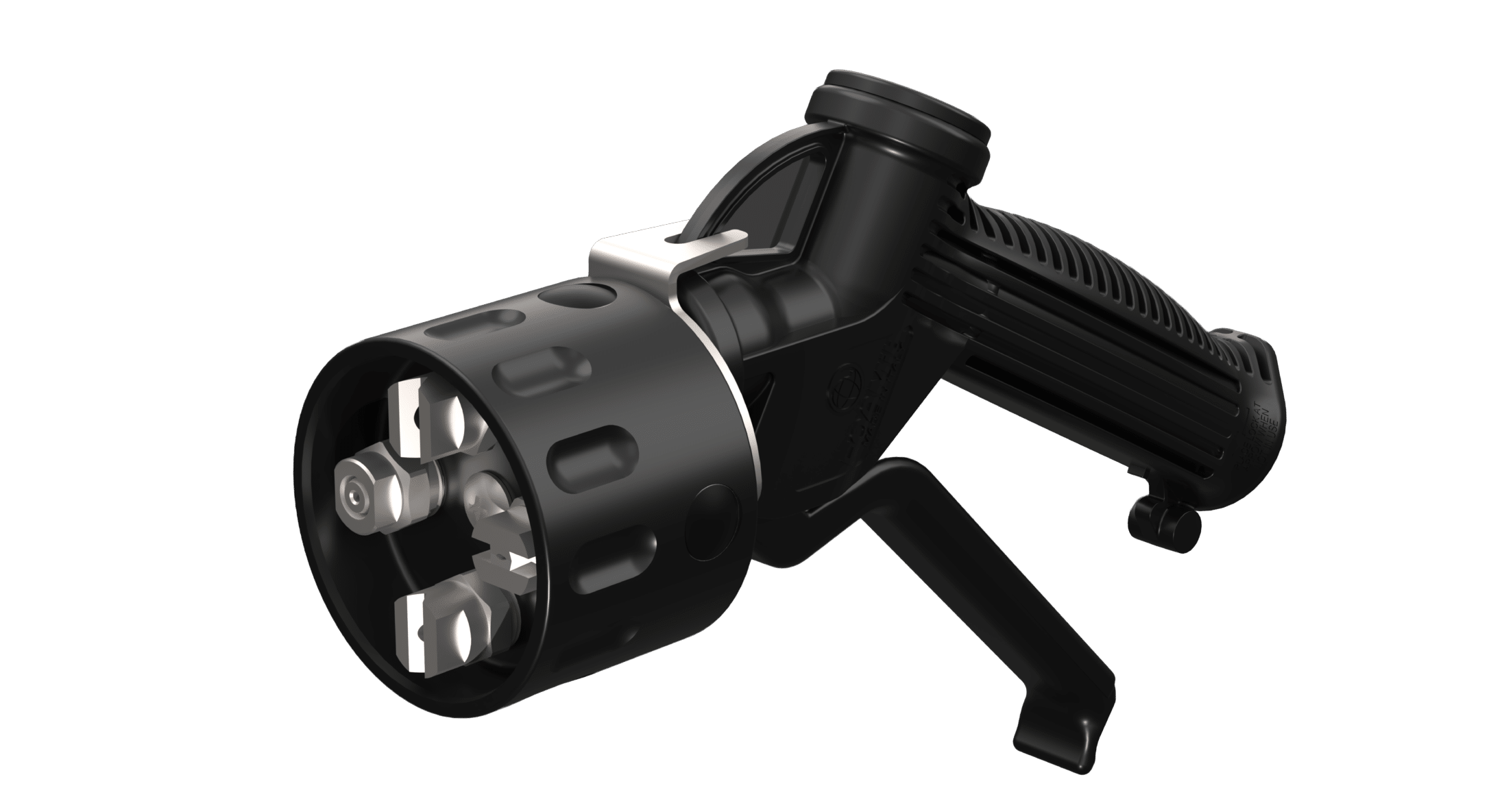

Discharge wand/tip type: polypropylene spray gun with triple
click nozzle for foam, rinse, and sanitize
Output distance: foam – 3-6 ft. (0.9-1.8 m)
rinse – 6-10 ft. (1.8-3 m)
sanitize – 1.5-5 ft. (0.5-1.5 m)
Output volume: 3.7 gal/min (14 l/min)
Flow rate: foam – 0.48 gal/min (1.8 l/min)
rinse – 0.53 gal/min (2 l/min)
sanitize – 0.3 gal/min (1.1 l/min)
Pump seals: Santoprene diaphragm, Viton check seals
Wheel type: two 10 in. (25.4 cm) non-marking wheels,
two 5 in. (12.7 cm) casters, one with lock

Liquid temperature range: 40-100˚F (4.4-37.8˚C)
Electrical requirements: 120-240 VAC at 50-60 Hz, 3A
(GFCI protected outlet) for battery charger only
Operating voltage: 24 VDC
Chemical compatibility: chemical products
used with this equipment must be formulated for this type of
application and compatible with unit materials and pump seals. For
more information on chemical compatibility, consult the manufacturer
or SDS for your product or contact our customer service department.
