Belt Foam Bar

#BFS-BA-48

Features

  • Labor efficient
    • don’t need a person spraying down the lines
  • Greater coverage faster, cleaning time reduced
  • Reduced chemical and water consumption because of foam
  • Contact time contributes to soil breakdown
  • Consistent coverage
  • Complete coverage on a belt revolution
  • Provides visual cleaning
  • Belt foam bars make belt cleaning quicker and more affordable

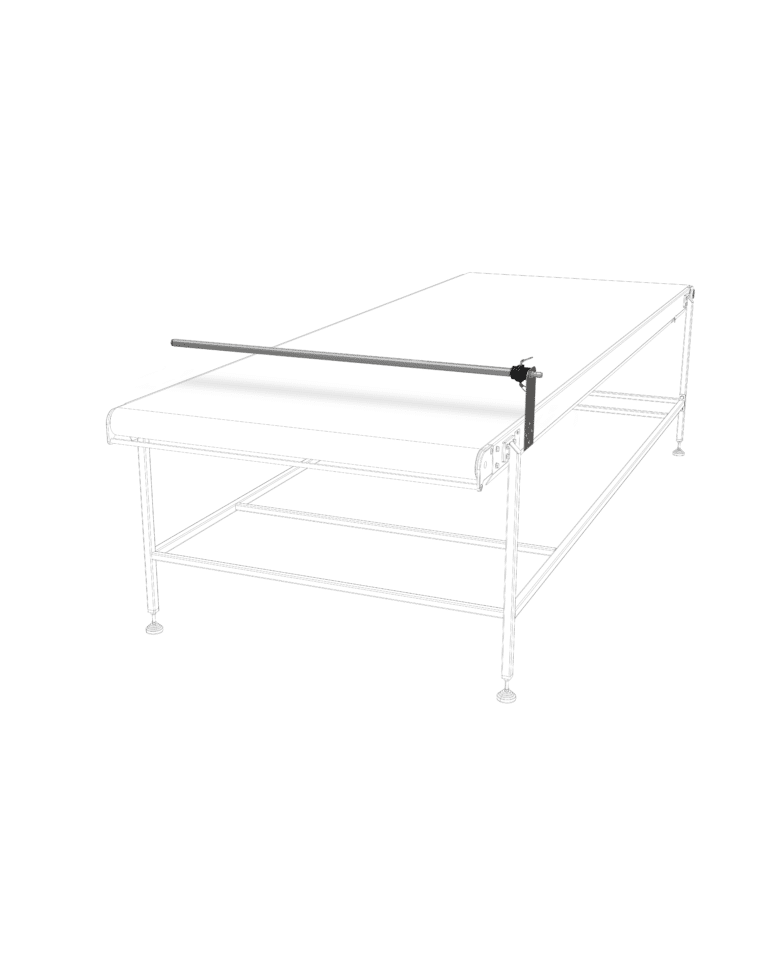

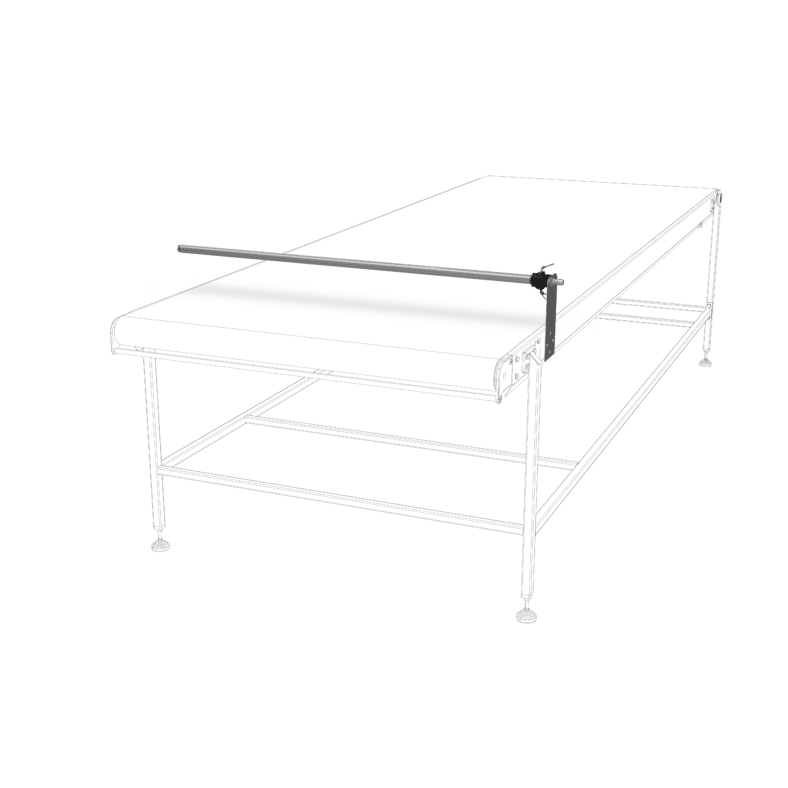

  • Easy mount bracket to conveyor
  • Can clean the top surface and inside the belt
  • Can be used as part of the Clean-in-Place process

Datasheet

Belt Foam Bar

User Manual

Belt Foam Bar

OUTPUT VOLUME

With 3/4 in. (19 mm) hose: 25-30 gal/min (95-114 l/min)

FLOW RATE*

With 3/4 in. (19 mm) hose: 2-2.25 gal/min (7.6-8.5 l/min)

COVERAGE AREA

4 ft. (1.2 m) width beneath the bar

ATTACHMENT SIZE

4 ft. (1.2 m) long 3.4 in. (19 mm) PVC pipe

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

LIQUID TEMPERATURE RANGE

40-100°F (4.4-37°C)

EQUIPMENT REQUIREMENTS

Requires connection to a FOAMit unit with ¾ in. (19 mm) discharge hose and a ½ in. FPT discharge ball valve

CHEMICAL COMPATIBILITY

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
