Concentrate Foam Unit for 2-Part Products

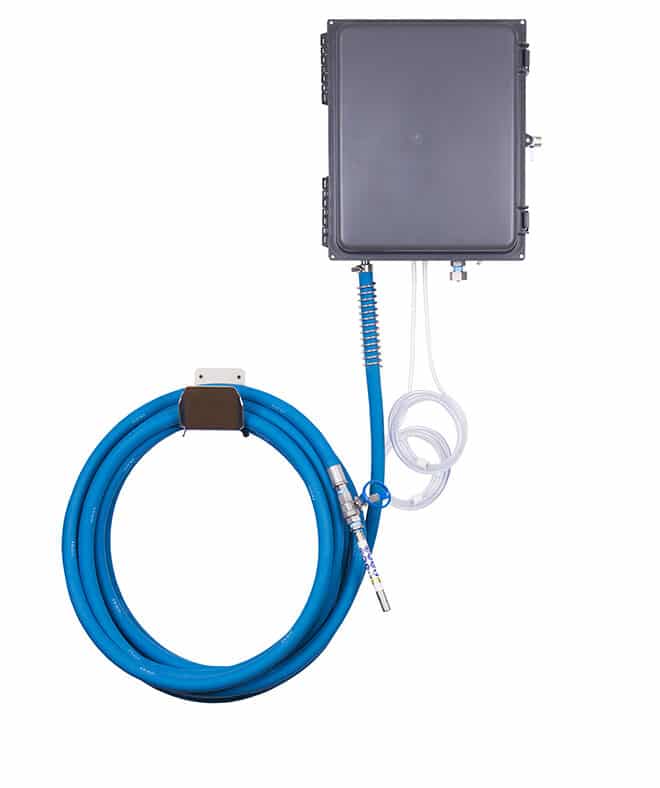

Wall mounted, air-powered, concentrate foam unit for 2-part products. Draws from two concentrated products simultaneously and mixes on the fly.



  • pump provides reliable dilution, regardless of water pressure fluctuations
  • powered by compressed air
  • draws from two concentrated products simultaneously
  • ideal for 2-part products that need to be mixed on the fly
  • dilutes at a rate of 8:1 to 150:1 (water:chemical) for each product
  • requires water connection with 10-100 psi (0.7-6.9 bar) incoming water pressure
  • anti-kink hose protection
  • designed for easy maintenance – quick change pump
  • customization options
    • pump seal material for compatibility
    • color coding – discharge hose – 4 colors (BL, GN, YL, RD)
    • foam wand style – zero degree tip or fan tip
    • stainless steel or all-poly fluid fittings


Concentrate Foam Unit for 2-Part Products

power type

compressed air

chemical pickup type

draws from concentrated product

dilution ratio range (water:chemical)*

8:1 to 150:1

number of products unit can draw from

two products simultaneously

suction line length/diameter

8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter

discharge line length/diameter

50 ft. (15.2 m) hose, with 3/4 in. (19 mm) inside diameter

discharge wand/tip type

7 in. (17.8 cm) stainless steel wand with zero tip and ball valve

output distance

25-30 ft. (7.6-9.1 m)

output volume

20-45 gal/min (75.7-170.3 l/min)

flow rate*

2 gal/min (7.6 l/min)

pump seals

Santoprene, Viton, or Kalrez

product height

18 in. (45.7 cm)

*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.



compressed air requirements

40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)

water requirements

10-100 psi (0.7-6.9 bar)

backflow prevention is required – consult local plumbing ordinances for more information

liquid temperature range

40-100°F (4.4-37.8°C)

chemical compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact or customer service department.
