Pre-Mix Foam Unit
#FI-WALLWall mounted, air-powered, pre-mix foam unit. Includes stainless steel ball valve and wand with color coding hose options.
- QUICK LINKS:
- Get A Quote
features
- draws from pre-mixed solution
- powered by compressed air

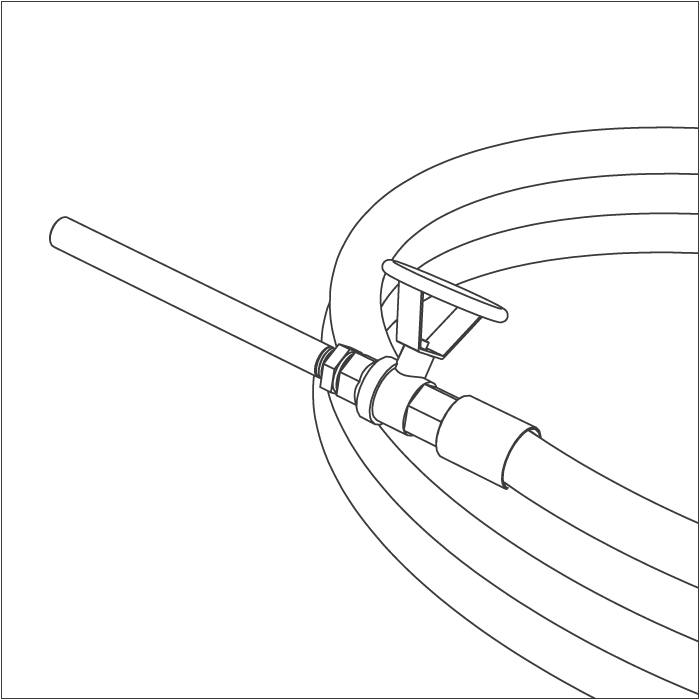

- stainless steel ball valve and wand
- stainless steel fluid fittings
- quick-change pump

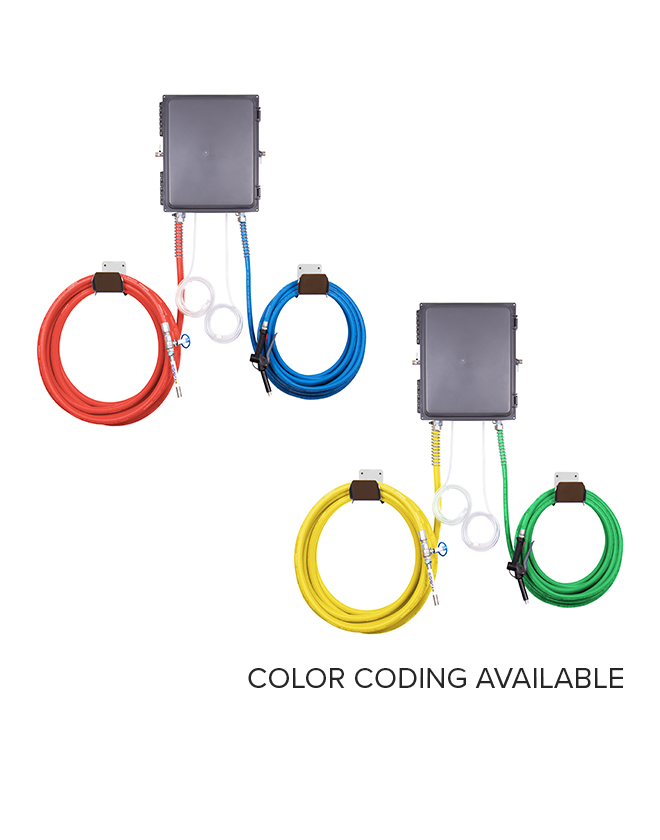

- color coding options:
- discharge hose – 4 colors (BL, GN, YL, RD)
Datasheet
Pre-Mix Foam Unit
Operation Manual
Pre-Mix Foam Unit - Operation Manual
Questions?
- power type
compressed air
- chemical pickup type
draws from pre-mixed solution
- number of products unit can draw from
one product
- suction line length/diameter
8 ft. (2.4 m) hose with 3/8 in. (9.5 mm) inside diameter)
- discharge hose length/diameter
50 ft. (15.2 m) hose, with 3/4 in. (19 mm) inside diameter)
- discharge wand/tip type
7 in. (17.8 cm) stainless steel wand with zero tip and ball valve
- output distance
25-30 ft. (7.6-9.1 m)
- output volume
20-45 gal/min (75.7-170.3 l/min) of foam
- flow rate*
2 gal/min (7.6 l/min)
- pump seals
Santoprene, Viton, or Kalrez
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- compressed air requirements
40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)
- liquid temperature range
40-100˚F (4.4-37.8˚C)
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- control box assembly
- discharge hose and wand
- mounting hardware
- stainless steel hose rack
- user manual
Accessories
Support Videos
How to change a pump - with quick-change pump bracket
How to adjust the wet/dry foam needle valve
Cómo ajustar la válvula de la aguja de la espuma húmeda o seca
How to replace a check valve
How to replace a hose or wand
FAQs
Which pump seal material should I choose?
Pump Seal Material Compatibility
Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.
- Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
- Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
- Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
- If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
