Twin-Line Pre-Mix Doorway Foam Unit
#DS5Wall mounted, air and electricity powered, twin-line pre-mix foam unit for doorways. Supports up to three twin line nozzle assemblies with a total of 100ft total distance with repeat cycle timers.
- QUICK LINKS:
- Get A Quote
features
- draws from pre-mixed solution
- powered by compressed air and electricity
- repeat cycle timer
- quick-change pump
- supports up to 3 twin-line stainless steel nozzle assemblies
- up to 100 ft. (30.5 m) total distance between control box and nozzle(s) (distance does not need to be evenly distributed)
Datasheet
Twin-Line Pre-Mix Doorway Foam Unit
Operation Manual
Twin-Line Pre-Mix Doorway Foam Unit
Questions?
- power type
compressed air, electricity
- chemical pickup type
draws from pre-mixed solution
- number of products unit can draw from
one product
- suction line length/diameter
8 ft. (2.4 m) hose with 3/8 in. (9.5 mm) inside diameter
- flow rate*
2 gal/min (7.6 l/min)
- pump seals
Santoprene, Viton, or Kalrez
- timer operation type
repeat cycle

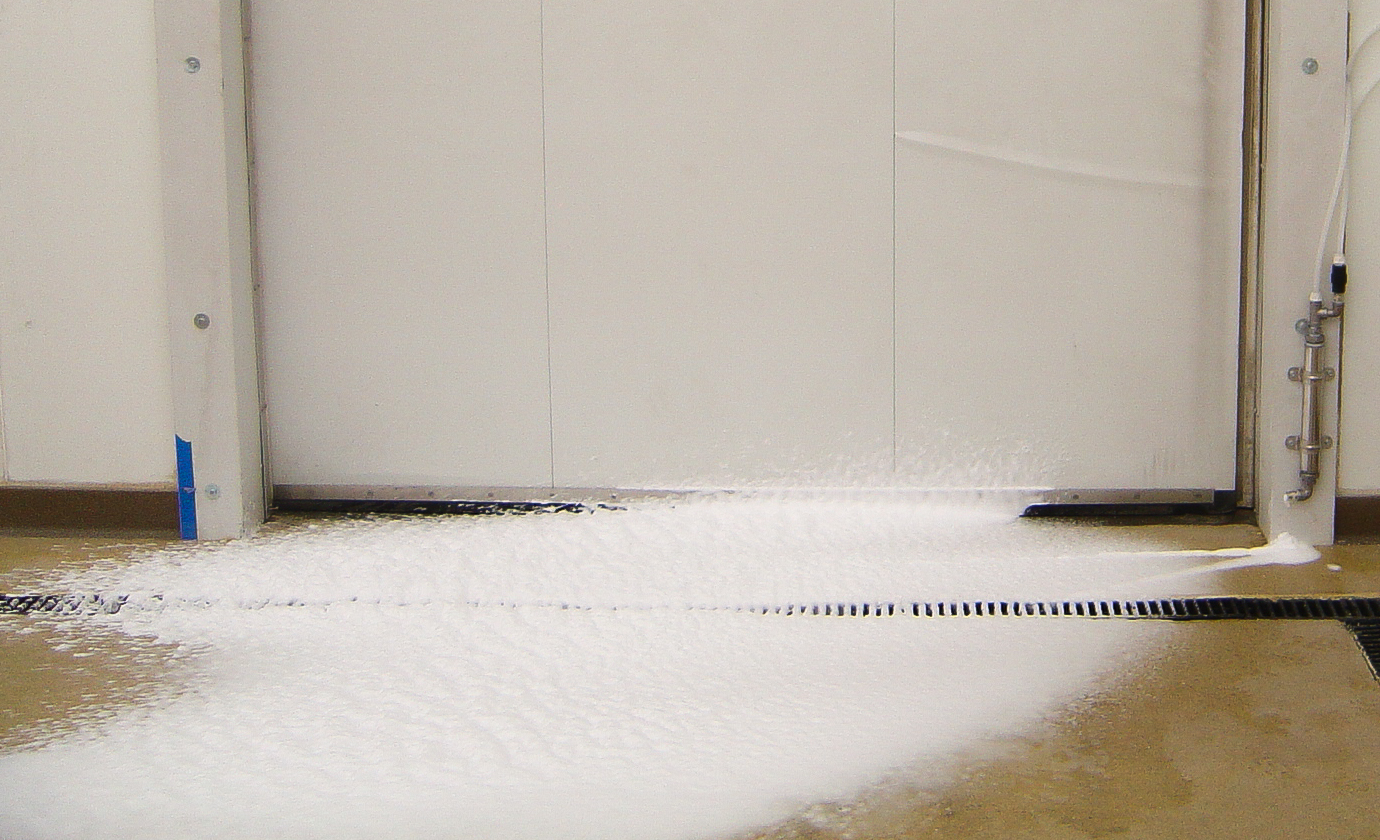

- coverage area

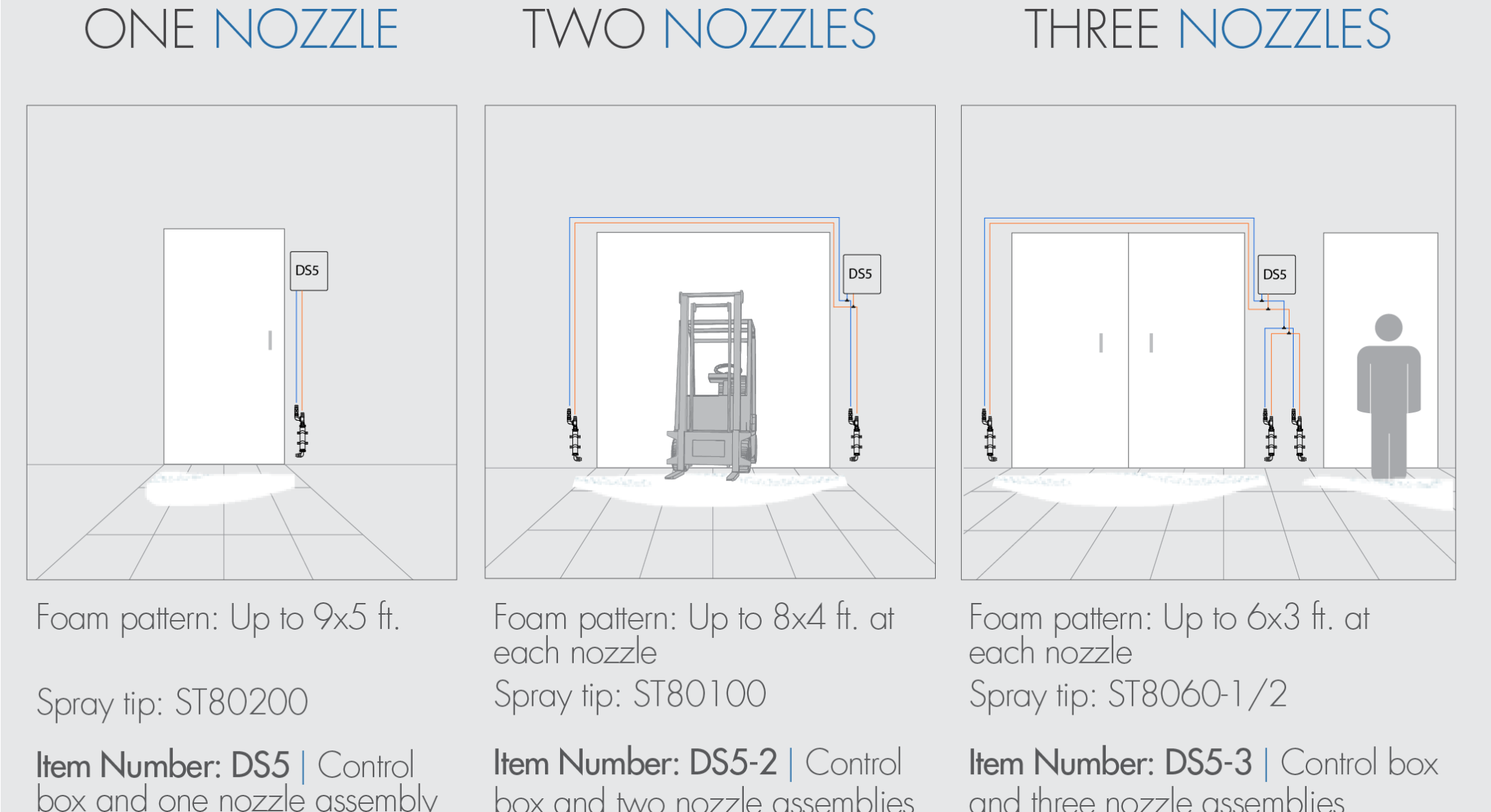

one nozzle: up to 9×5 ft. (2.7×1.5 m);
two nozzles: up to 8×4 ft. (2.4×1.2 m) at each nozzle;
three nozzles: up to 6×3 ft. (1.8×0.9 m) at each nozzle- fan tip
one nozzle: ST80200;
two nozzles: ST80100;
three nozzles: ST8060-1/2- nozzle type
twin-line stainless steel assembly (GK7T)
- number of nozzles
one control box can support up to three nozzle assemblies
- distance from nozzles to control box
the combined distance between the control box and the nozzle(s) must equal 100 ft. (30.5 m) or less
- tubing/fitting sizes
designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- compressed air requirements
40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)
- liquid temperature range
40-100˚F (4.4-37˚C)
- electrical requirements
120 VAC at 60 Hz, 2 amps (GFCI protected outlet)
- operating voltage
120 VAC
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- complete foam unit
- twin-line foam nozzle(s) with spray tip(s)
- adjustable ball-type nozzle insert to hold spray tip
- mounting hardware for control box and nozzle(s)
- clear tubing (50 ft. (15.2 m) of 1/2 in. (12.7 mm) outside diameter tubing per nozzle)
- tee fittings
- user manual
