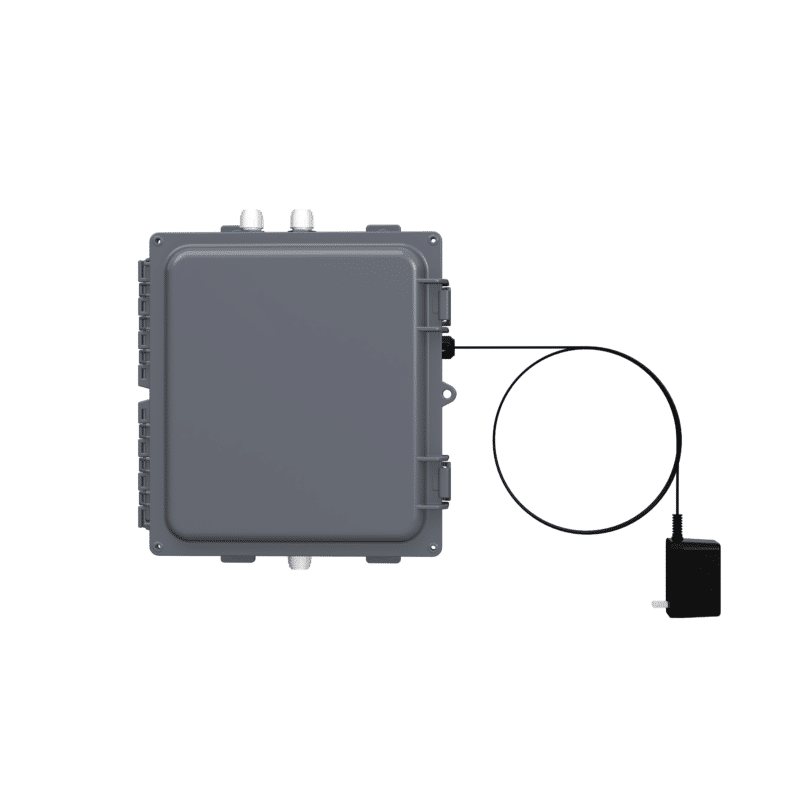

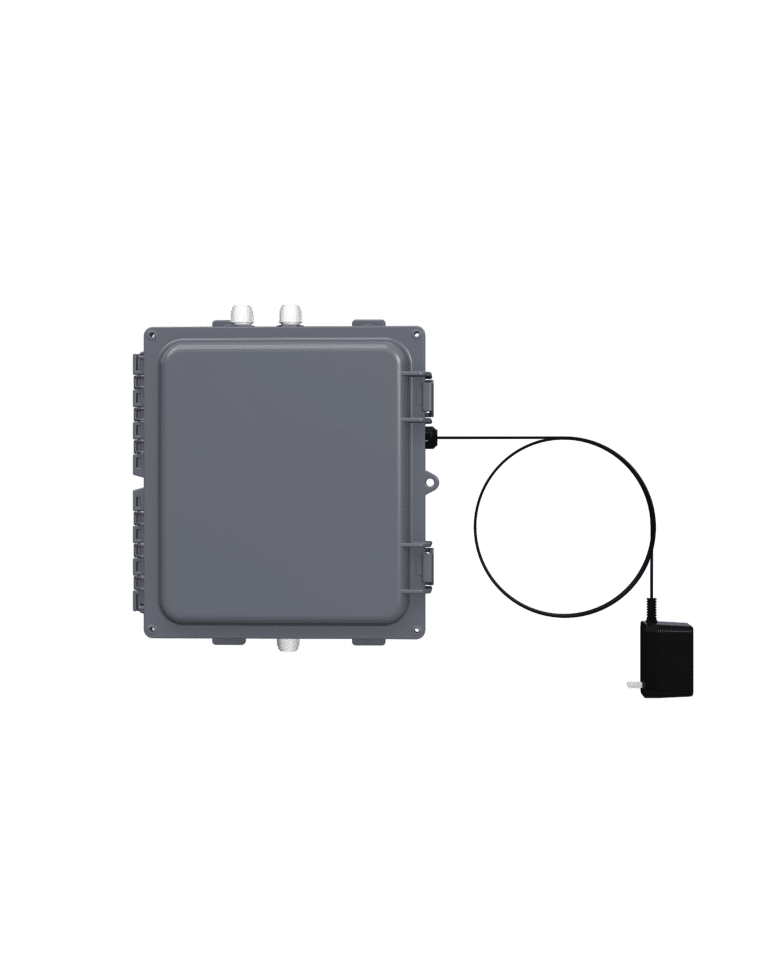

Central Doorway Foam Station (24VAC)



  • one central pump distributes pre-mixed solution through header system
    • pump and doorway nozzles sold separately
  • up to 25 ft. (7.6 m) total distance between control box and nozzle
  • powered by air and electricity – 24 VAC
  • repeat cycle timer


Central Doorway Foam Station (24vac)

User Manual

Central Doorway Foam Station (24VAC)

power type

compressed air and electricity

chemical pickup type

pre-mixed solution

number of products unit can draw from

one product

output volume

approx. 15 gal/min (56 l/min)

flow rate*

2 gal/min (7.6 l/min)

pump seals

Santoprene, Viton, or Kalrez

timer operation type

repeat cycle

coverage area**

5 ft. wide by 9 ft. long (1.5 m wide by 2.7 m long)

number of nozzles

one control box can support up to two nozzle assemblies

nozzle type

single-line poly nozzle assembly (GK6T) (sold separately)

distance from nozzle to control box

the combined distance between the control box and the nozzle(s) must equal 25 ft. (7.6 m) or less

tubbing/fitting sizes

designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)

*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

**foam pattern dimensions provided were measured with nozzle assemblies mounted 6 in. (15 cm) above the floor.

compressed air requirements

40-80 psi (3-5 bar) with 3.5-8 cfm (99.1-226.5 l/min)

liquid temperature range

40-100°F (4.4-37°C)

electrical requirements

120 VAC at 60 Hz, 2 amps (GFCI protected outlet)

operating voltage

24 VAC (Included adapter converts 120VAC to 24 VAC)

central system requirements

pre-mixed solution must be supplied by a properly sized header system at 2 gpm and 40-80 psi (3-5 bar)

chemical compatibility

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or MSDS for your product or contact our customer service department.

  • control box
  • user manual
  • pump and nozzles sold separately
