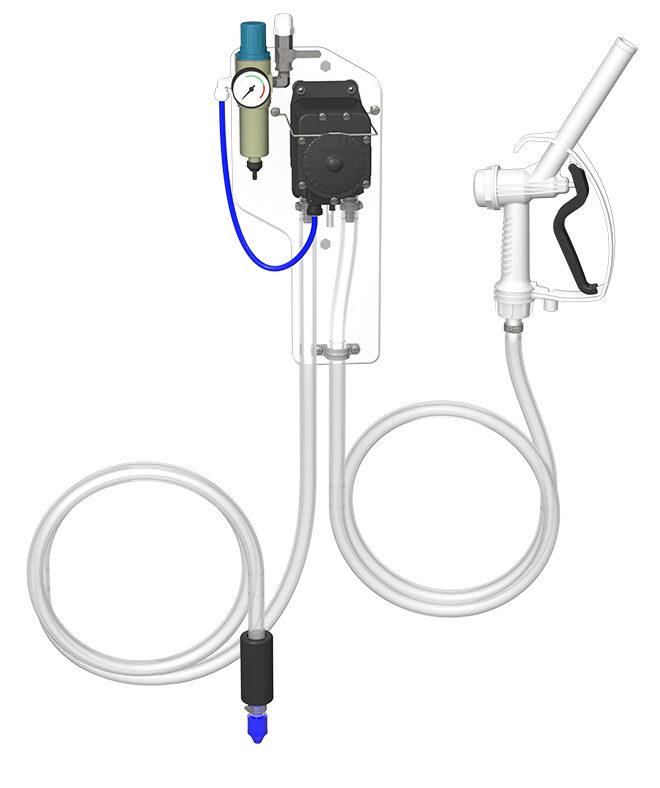

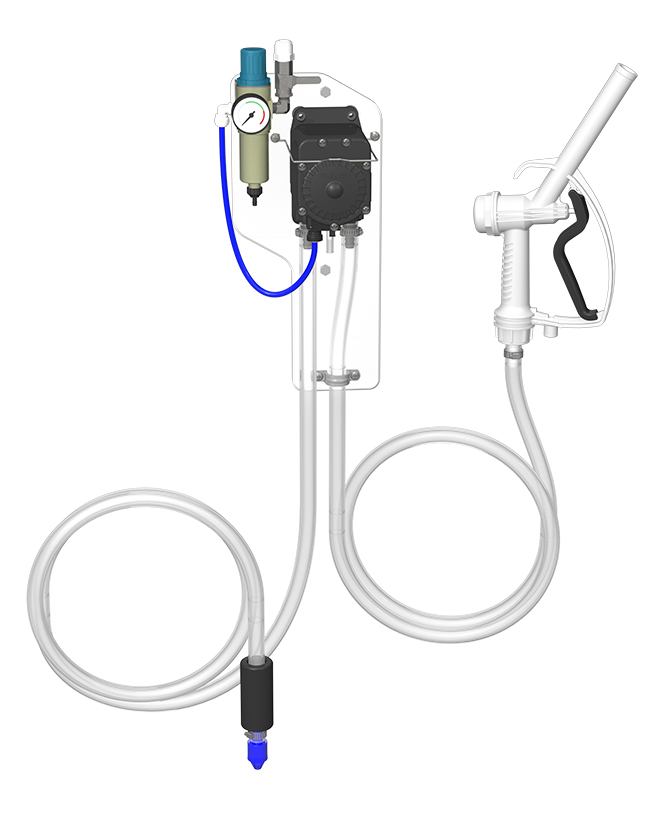

Chemical Transfer Unit For Up To Four Products

#CTX

Features

  • Transfer each product at up to 3.5 gal/min (13.2 l/min)
  • Tool-free pump changes with our quick-change pump bracket
  • Chemically-resistant PVC hose
  • Weighted suction line with filter and check valve
  • Air regulator with filter
  • Strain relief on the discharge hose
  • Trigger gun Hastelloy components for compatibility
  • Air-operated diaphragm pump with quick-release hose barbs
  • Choose Santoprene, Viton, and/or Kalrez pump seals
  • Color coding options:
    • Wand indicator – 4 colors (BL, GN, YL, RD)

Datasheet

Chemical Transfer Unit For Up To Four Products

User Manual

Chemical Transfer Unit For Up To Four Products

POWER TYPE

Compressed air

CHEMICAL PICKUP TYPE

Draws from pre-mixed solution and concentrated product

NUMBER OF PRODUCTS UNIT CAN DRAW FROM

One product per pump

SUCTION LINE LENGTH/DIAMETER

8 ft. (2.4 m) clear braid hose with 1/2 in. (12.7 mm) inside diameter

DISCHARGE LINE LENGTH/DIAMETER

8 ft. (2.4 m) clear braid hose with 1/2 in. (12.7 mm) inside diameter

DISCHARGE WAND/TIP TYPE

Polypropylene trigger handle

FLOW RATE*

3.5 gal/min (13.2 l/min)

PUMP SEALS

Santoprene, Viton, or Kalrez

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

COMPRESSED AIR REQUIREMENTS

20-80 psi (1.4-5 bar) with 2 cfm (56 l/min)

LIQUID TEMPERATURE RANGE

40-100˚F (4.4-37˚C)

CHEMICAL COMPATIBILITY

Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

Options
    PUMP SEAL MATERIAL
CTX One (1) Santoprene (S)
Two (2) Viton (V)
Three (3) Kalrez (K)
Four (4)



Add option codes to item number as shown.  For all Santoprene options, no option code is needed.  Examples:

  • CTX1 (Unit with one product; one pump with Santoprene pump seals)
  • CTX2VK (Unit for two products; one pump with Viton and one pump with Kalrez pump seals)
  • CTX3V (Unit for three products; three pumps with Viton pump seals)
  • CTX4SVKK (Unit for four products; one pump with Santoprene pump seals, one pump with Viton pump seals, two pumps with Kalrez pump seals)

Other available options:

  • Color coding – wand indicator
  • Complete unit with discharge hose and suction line
  • Mounting hardware for plate
  • User manual

FAQs

Which pump seal material should I choose?

Pump Seal Material Compatibility

Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.

  • Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
  • Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
  • Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
  • If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.

Accessories

Support Videos

How to change a pump - with quick-change pump bracket
