Concentrate Foam and Sanitize Unit

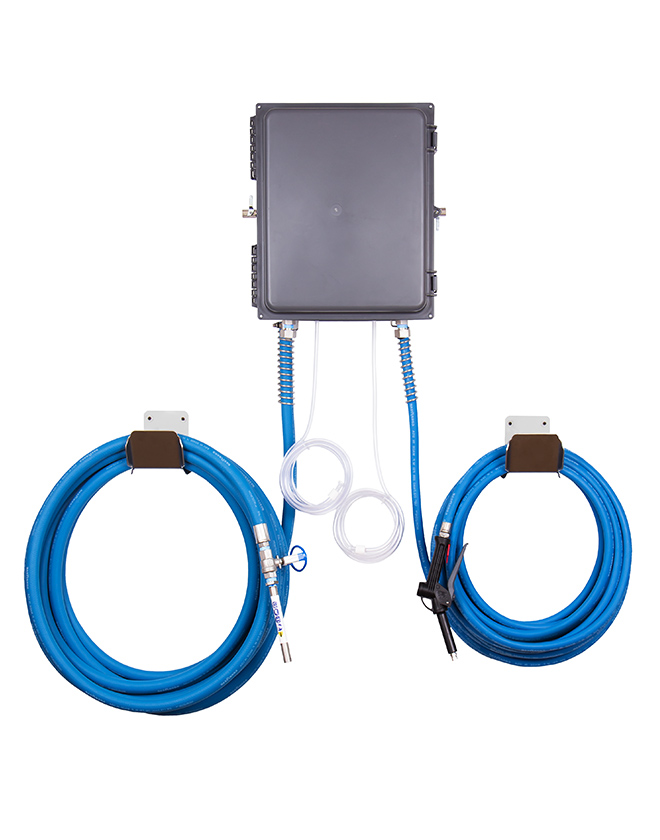

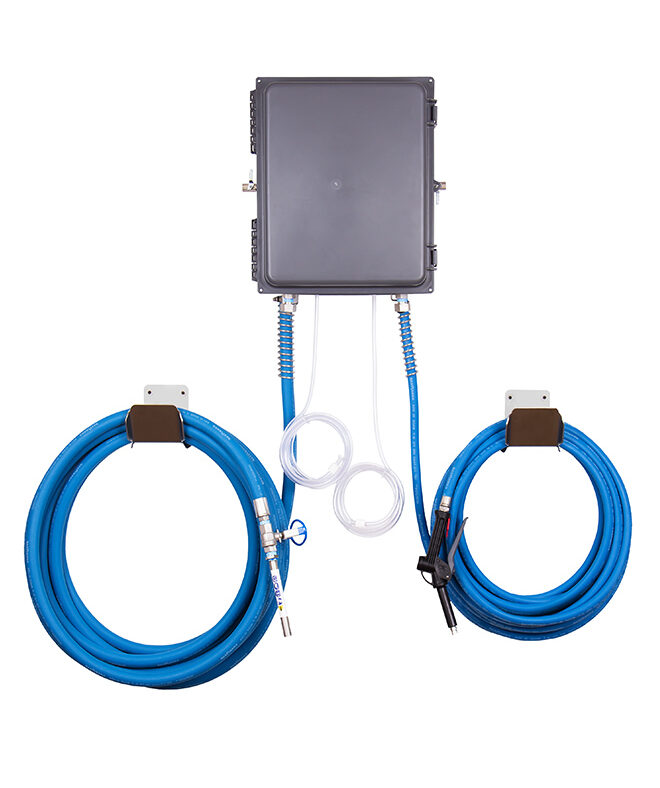

#FISP-WCWall mounted, air-powered, concentrate foam and sanitize unit. Use foam and spray function independently or simultaneously and choose between pump seal options and hose colors.
- QUICK LINKS:
- Get A Quote
features

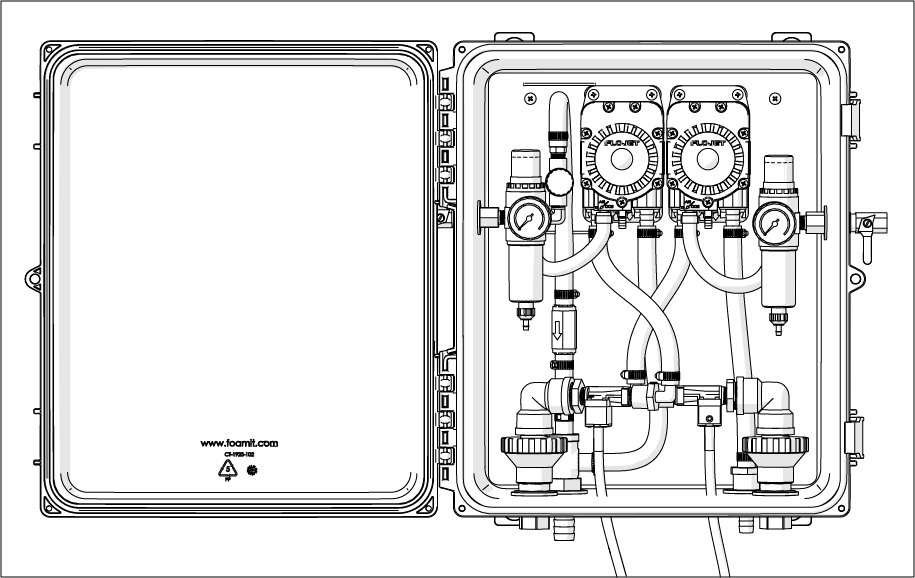

- foam and sanitize systems built inside a shared enclosure – no shared components
- use foam and spray function independently or simultaneously
- no cross-contamination between products
- draws from concentrate products – control dilution ratios independently for each function

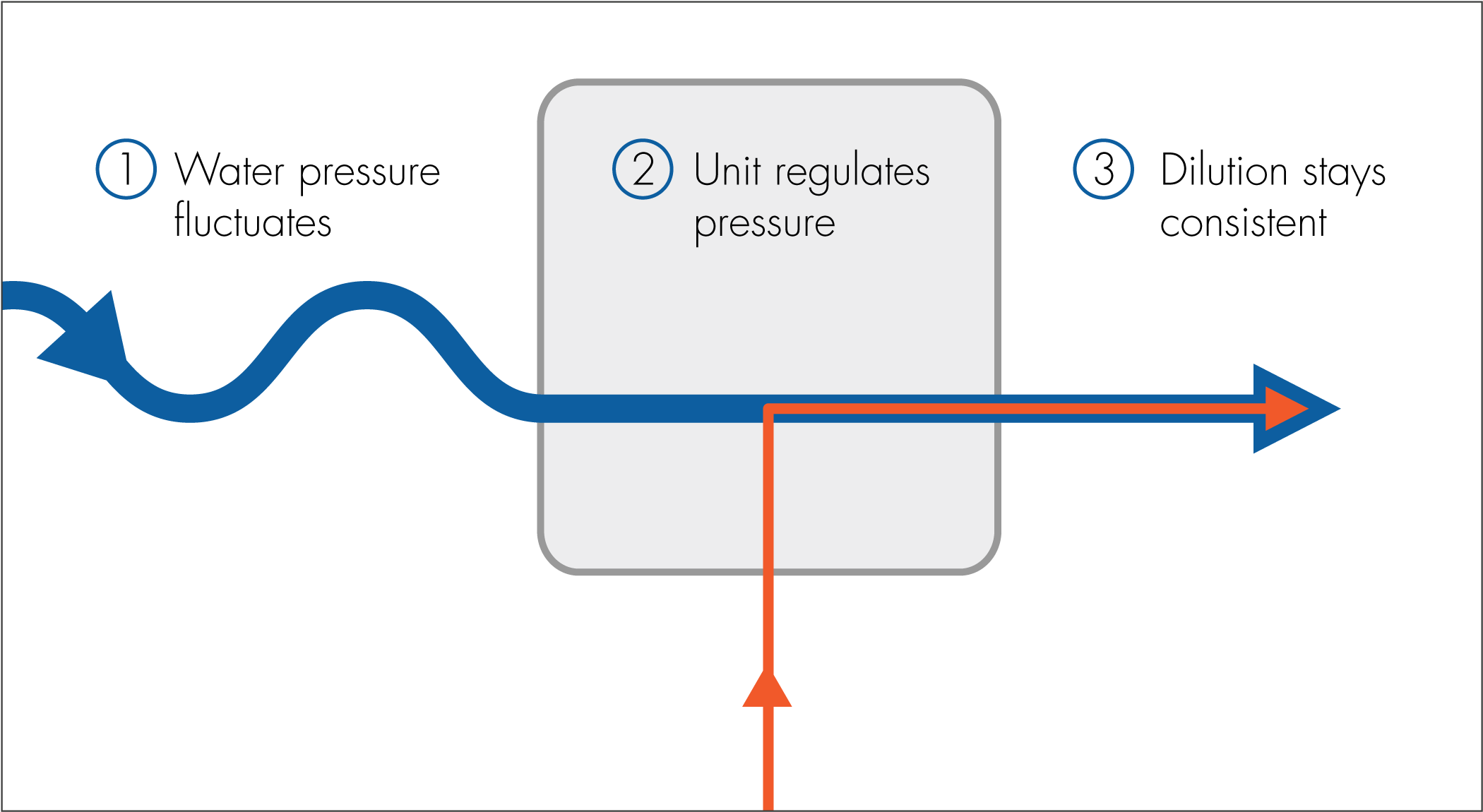

- regulates incoming water pressure to ensure consistent dilution and foam quality
- requires separate water, compressed air, and chemical supply for each function
- select pump seal material independently for each function

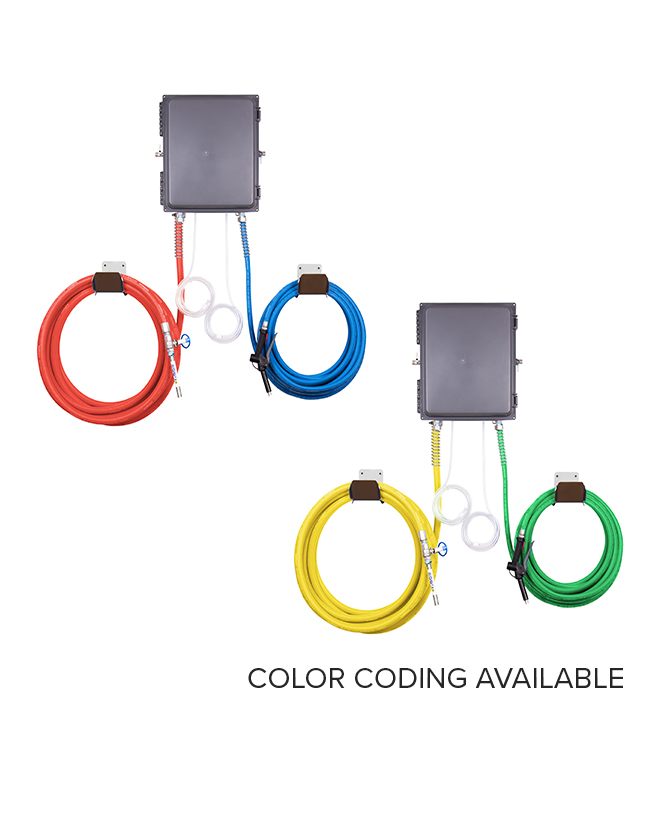

- color coding options:
- discharge hose – 4 colors (BL, GN, YL, RD)
- consistent, reliable dilution rates, regardless of changes in water pressure
Datasheet
Concentrate Foam and Sanitize Unit
Operation Manual
Concentrate Foam and Sanitize Unit - Operation Manual
Questions?
- power type
FOAM SYSTEM: compressed air
SPRAY SYSTEM: compressed air
- chemical pickup type
FOAM SYSTEM: draws from concentrated product
SPRAY SYSTEM: draws from concentrated product
- dilution ratio range (water:chemical)*
FOAM SYSTEM: 14:1 to 320:1
SPRAY SYSTEM: 34:1 to 640:1 with ST2520SS fan tip; 24:1 to 640:1 with ST2550SS fan tip
- number of products unit can draw from
FOAM SYSTEM: one product
SPRAY SYSTEM: one product
- suction line length/diameter
FOAM SYSTEM: 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
SPRAY SYSTEM: 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
- discharge hose length/diameter
FOAM SYSTEM: 50 ft. (15.2 m) hose with 3/4 in. (19.1 mm) inside diameter
SPRAY SYSTEM: 50 ft. (15.2 m) hose with 1/2 in. (12.7 mm) inside diameter
- discharge wand/tip type
FOAM SYSTEM: 7 in. (17.8 cm) stainless steel wand with zero tip and ball valve
SPRAY SYSTEM: polypropylene spray gun with 25˚ fan tip
- output distance
FOAM SYSTEM: 25-30 ft. (7.6-9.1 m)
SPRAY SYSTEM: 10-12 ft. (3.0-3.7 m)
- output volume
FOAM SYSTEM: 20-45 gal/min (75.7-170.3 l/min) of foam
SPRAY SYSTEM: 2 gal/min (7.6 l/min) of liquid with ST2520SS fan tip; 4-5 gal/min (15.1-18.9 gal/min) of liquid with ST2550SS fan tip
- flow rate*
FOAM SYSTEM: 2 gal/min (7.6 l/min)
SPRAY SYSTEM: 2 gal/min (7.6 l/min) with ST2520SS fan tip; 4-5 gal/min (15.1-18.9 l/min) with ST2550SS fan tip
- pump seals
FOAM SYSTEM: Santoprene, Viton, or Kalrez
SPRAY SYSTEM: Santoprene, Viton, or Kalrez
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- compressed air requirements
FOAM SYSTEM: 40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.3 l/min)
SPRAY SYSTEM: 40-80 psi (2.8-5.5 bar) with 2 cfm (56.6 l/min)
- water requirements
FOAM SYSTEM: 10-100 psi (0.7-6.9 bar)
backflow prevention is required – consult local plumbing ordinances for more information.SPRAY SYSTEM: 10-100 psi (0.7-6.9 bar)
backflow prevention is required – consult local plumbing ordinances for more information.- liquid temperature range
FOAM SYSTEM: 40-100˚F (4.4-37.8˚C)
SPRAY SYSTEM: 40-100˚F (4.4-37.8˚C)
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- control box assembly
- foam discharge hose and wand
- spray discharge hose and trigger handle
- alternate size fan tip for spray trigger handle
- metering tip kit for foam injector
- metering tip kit for spray injector
- additional ultra-lean metering tip kit for spray injector
- two stainless steel hose racks
- mounting hardware
- user manual
Accessories
Support Videos
How to set the operating pressure on a water regulator (WR12SS) for wall mounted units
FI-WC-2P, SP-WC, FISP-WC, FI-WC, FI-WC-11AP2, FI-WC-11AP
How to change the water regulator (WR12SS) for wall mounted units
FI-WC-2P, SP-WC, FISP-WC, FI-WC, FI-WC-11AP2, FI-WC-11AP
How to change an injector (P203CT) for concentrate wall mounted units
FI-WC-2P, SP-WC, FISP-WC, FI-WC, FI-WC-11AP2, FI-WC-11AP
How to adjust the water regulator (WR12SS) for wall mounted units
FI-WC-2P, SP-WC, FISP-WC, FI-WC, FI-WC-11AP, FI-WC-11AP2
How to adjust the wet/dry foam needle valve
Cómo ajustar la válvula de la aguja de la espuma húmeda o seca
How to replace a check valve
How to replace a hose or wand
FAQs
Which pump seal material should I choose?
Pump Seal Material Compatibility
Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.
- Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
- Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
- Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
- If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
