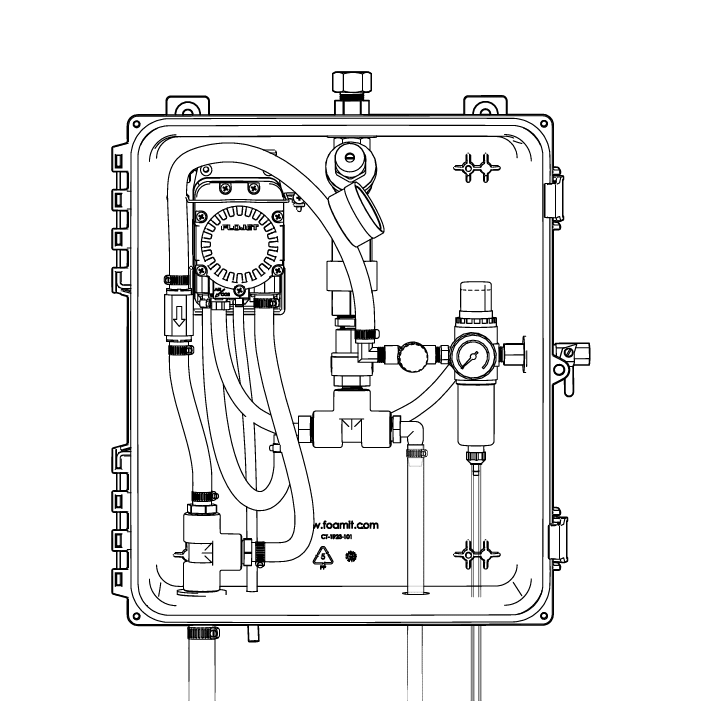

High Concentration Foam Unit with All-Poly Fittings
#FI-WC-11APWall mounted, air-powered, high concentrate foam unit with all-poly fittings. Provides consistent, reliable dilution rates, regardless of changes in water pressure.
- QUICK LINKS:
- Get A Quote
features
- draws from concentrated product
- dilutes products at ratios of 1:1 to 16:1
- regulates incoming water pressure to ensure consistent foam quality

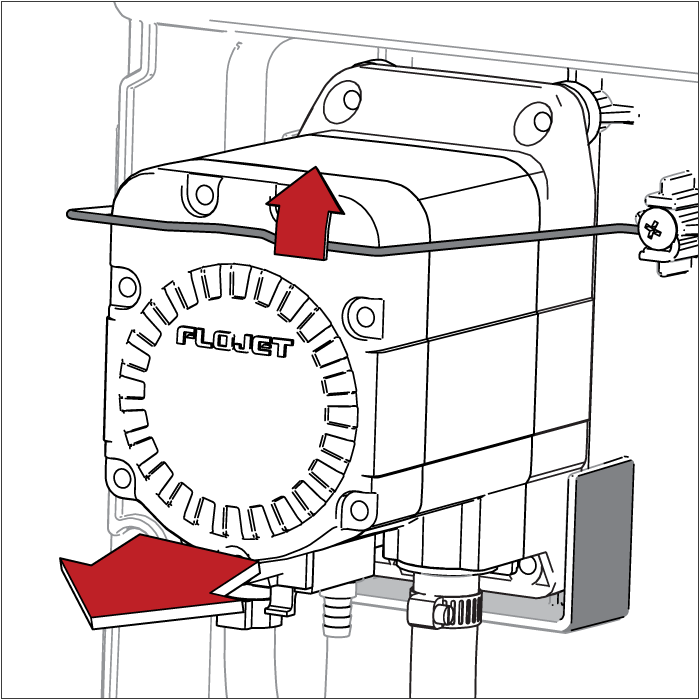

- quick-change pump
- 32 in. (81.3 cm) polypropylene wand
- all-poly fluid fittings, resistant to many acid products

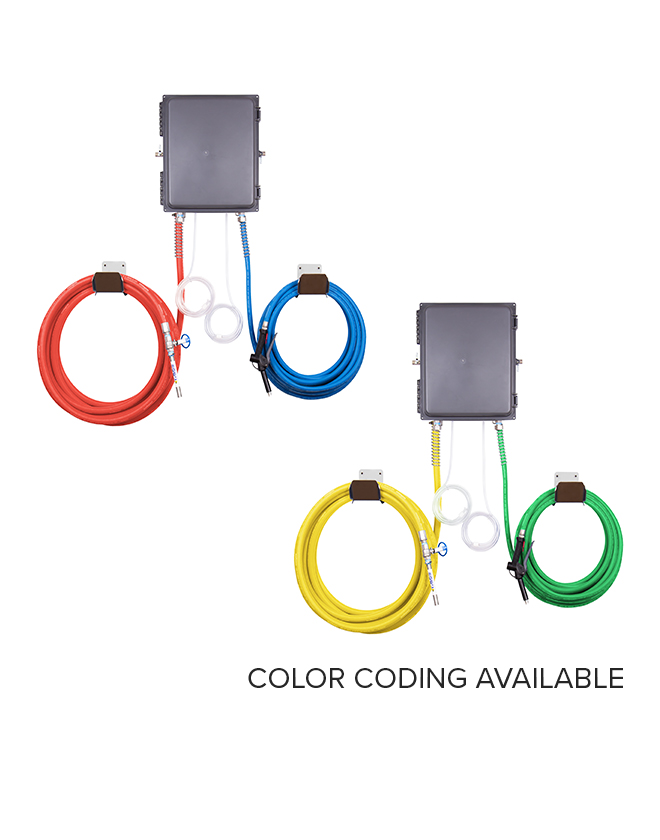

- color coding options:
- discharge hose – 4 colors (BL, GN, YL, RD)
- consistent, reliable dilution rates, regardless of changes in water pressure
Datasheet
High Concentration Foam Unit with All-Poly Fittings
Operation Manual
High Concentration Foam Unit with All-Poly Fittings and High Concentration Foam Unit with 2-Product Selector and All-Poly Fittings - Operation Manual
Questions?
- power type
compressed air
- chemical pickup type
draws from concentrated product
- dilution ratio range (water:chemical)*
1:1 to 16:1
- number of products unit can draw from
one product
- suction line length/diameter
8 ft. (2.4 m) clearbraid hose with 1/2 in. (12.7 mm) inside diameter)
- discharge hose length/diameter
50 ft. (15.2 m) hose, with 3/4 in. (19 mm) inside diameter
- discharge wand/tip type
32 in. (81.3 cm) polypropylene wand with zero tip and polypropylene ball valve
- output distance
15-20 ft. (4.6-6.1 m)
- output volume
20 gal/min (75.7 l/min) of foam
- flow rate*
1.6 gal/min (6.1 l/min)
- pump seals
Santoprene, Viton, or Kalrez
- fluid fittings type
all-poly
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- compressed air requirements
40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)
- water requirements
10-100 psi (0.7-6.9 bar)
backflow prevention is required – consult local plumbing ordinances for more information.- liquid temperature range
40-100˚F (4.4-37.8˚C)
- chemical compatibility
Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
- control box assembly
- discharge hose and wand
- mounting hardware
- stainless steel hose rack
- metering tip kit for foam injector
- user manual
Accessories
Support Videos
How to set the operating pressure on a water regulator (WR12SS) for wall mounted units
FI-WC-2P, SP-WC, FISP-WC, FI-WC, FI-WC-11AP2, FI-WC-11AP
How to change the water regulator (WR12SS) for wall mounted units
FI-WC-2P, SP-WC, FISP-WC, FI-WC, FI-WC-11AP2, FI-WC-11AP
How to change an injector (P203CT) for concentrate wall mounted units
FI-WC-2P, SP-WC, FISP-WC, FI-WC, FI-WC-11AP2, FI-WC-11AP
How to adjust the water regulator (WR12SS) for wall mounted units
FI-WC-2P, SP-WC, FISP-WC, FI-WC, FI-WC-11AP, FI-WC-11AP2
How to change a pump - with quick-change pump bracket
How to adjust the wet/dry foam needle valve
Cómo ajustar la válvula de la aguja de la espuma húmeda o seca
How to replace a check valve
How to replace a hose or wand
FAQs
Which pump seal material should I choose?
Pump Seal Material Compatibility
Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by warranty, so it’s important to do your research.
- Consult the safety data sheet (SDS) for your chemical to learn about the ingredients.
- Use a chemical compatibility database (like this one: https://www.coleparmer.com/Chemical-Resistance) to look up the ingredients and find material compatibility info.
- Note that the concentration of chemicals makes a big difference in compatibility. Think about whether the chemical you use will be in a pre-diluted or concentrated form when it is used in the equipment.
- If you need help, ask your chemical manufacturer. Or, send your SDS to techsupport@foamit.com and we can help.
