EZBlend Foam Unit
#FI-EZB-15NVDraws from concentrated Sterilex products and dilutes on the fly to prevent waste.
- QUICK LINKS:
- Get A Quote
features
- designed specifically for use with Sterilex products – part of the Sterilex EZBlend System >>
- draws from concentrated Sterilex products and dilutes on the fly to prevent waste
- no need to pre-mix solution – only activate what you use, as you use it
- pre-set to dilute Sterilex products at labeled rate of 1:1:10 to 1:1:8 – no setup required

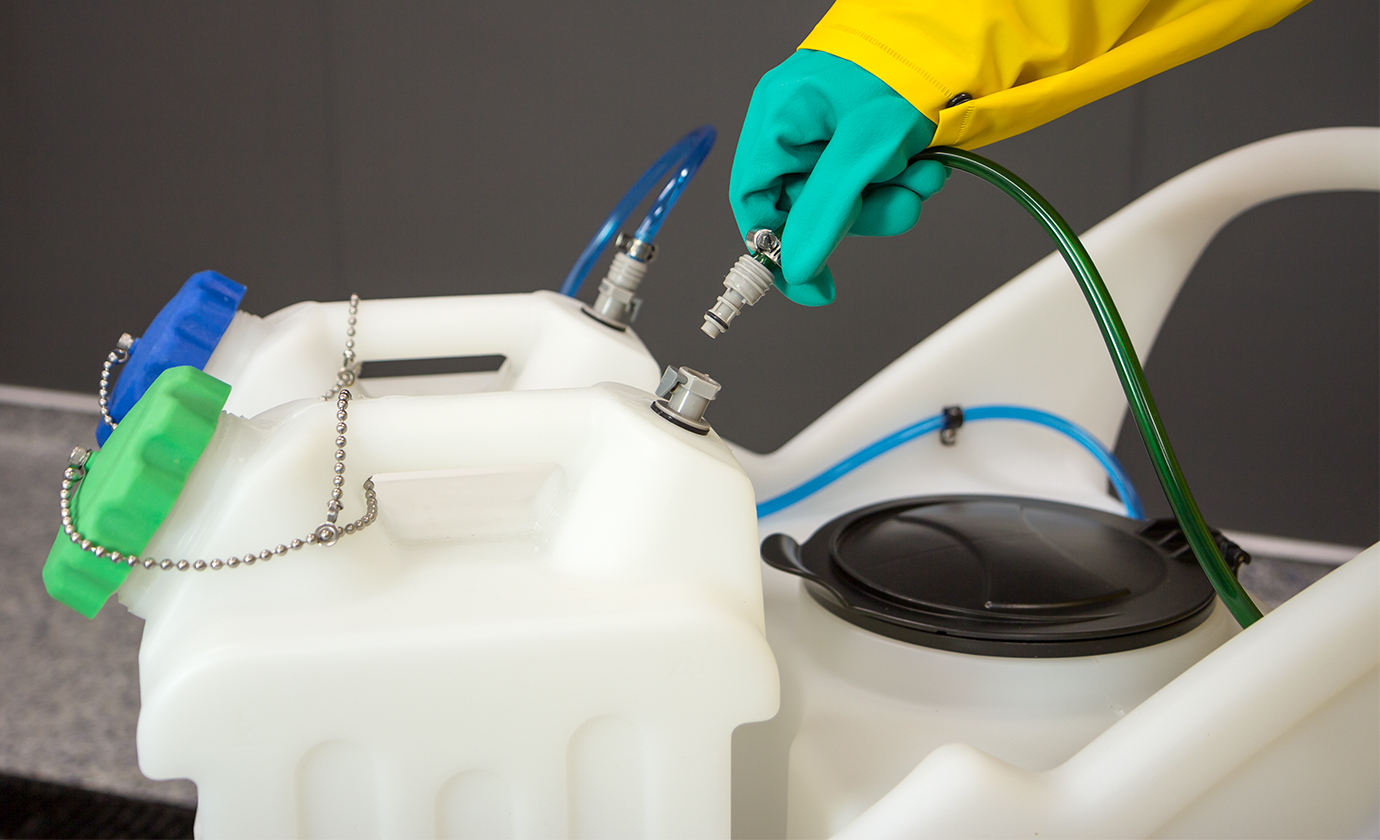

- includes two 5 gallon chemical jugs with quick-connect suction fittings
- save time with fewer chemical refills – two 5 gallon jugs of concentrate will make 45-50 gallons (170-189 liters) of solution, just refill the water tank and keep foaming
- user-friendly color coding on jugs and unit corresponds to Sterilex solution 1 and 2
- foam wand with fan tip for efficient surface coverage – ideal for environmental cleaning and disinfecting food contact surfaces
- quick connect wand can be easily interchanged with optional FOAMit attachments for drain foaming >>
- onboard water tank – 15 gallon (56.8 liter) capacity
- powered by compressed air
- Viton pump seals for compatibility with Sterilex
- hinged back plate provides tool-free access to components
- quick-change pump
- hinged lid
- color coding options:
- lid – 9 colors (BK, BL, BN, GN, OR, PL, RD, WH, YL)
- anti-kink hose protection
- translucent tank and jugs allow visibility of fill levels
- integrated hose wraps
- front-facing drain
- in-line strainer to protect pump from debris
- designed for use with EZBlend Chemical Transfer Unit >>
Datasheet
EZBlend Foam Unit
Operation Manual
EZBlend Foam Unit - Operation Manual
Questions?
- power type
compressed air
- chemical pickup type
draws from concentrated product
- dilution ratio change (chemical A : chemical B : water)*
12.8-16 fl. oz. : 12.8-16 fl. oz. : 1 gallon
(378.5-473.2 ml : 378.5-473.2 ml : 3.78 liters)- number of products units can draw from
two products, simultaneously
- suction line length/diameter
two transparent suction lines, one blue and one green, each 4 ft. (1.2 m) long with 1/4 in. (6.4 mm) inside diameter; with quick disconnect fittings for chemical jugs
- capacity
15 gallons (56.8 liters) of water; up to 10 gallons (37.9 liters) of concentrate
- discharge line length/diameter
30 ft. (9 m) hose, with 3/4 in. (19 mm) inside diameter
- discharge wand/tip type
12 in. (30.5 cm) stainless steel wand and ball valve with 65˚ fan tip; includes stainless quick connects
- output distance
10-12 ft. (3-4.6 m)
- output volume
15-20 gal/min (56.8-75.7 l/min)
- flow rate*
2 gal/min (7.6 l/min)
- pump seals
Viton
- wheel type
two 10 inch non-marking wheels and two 5 inch casters, one with lock
*dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
- compressed air requirements
40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)
- liquid temperature range
40-100˚F (4.4-37.8˚C)
- chemical compatibility
this unit is specifically configured for use with Sterilex liquid products
- complete foam unit with discharge hose and wand
- (2) 5 gallon chemical jugs with caps and suction fittings
- user manual
Accessories
Support Videos
Changing and cleaning the metering tip (EZB)
FI-EZB-15NV

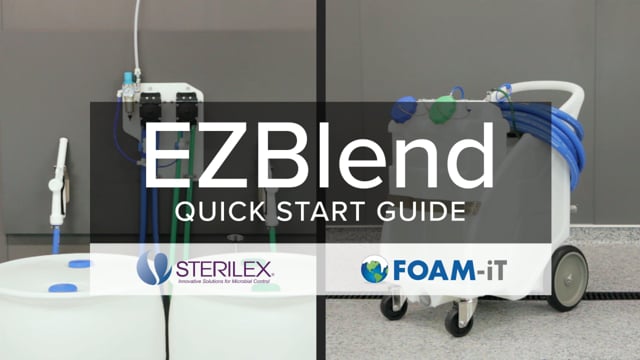

Quick start guide: Sterilex EZBlend System
FI-EZB-15NV, CTX2V-EZB
How to change a pump - with quick-change pump bracket
How to replace a check valve

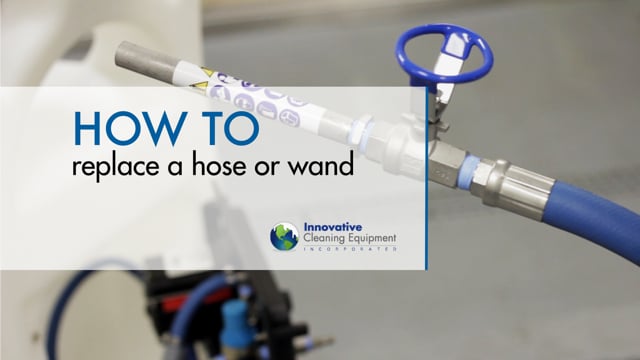

How to replace a hose or wand
